Pictures are of a sliding door with the locking handle missing

Contractor from Chesapeake Virginia

Jun 8, 2022 8:52 pm

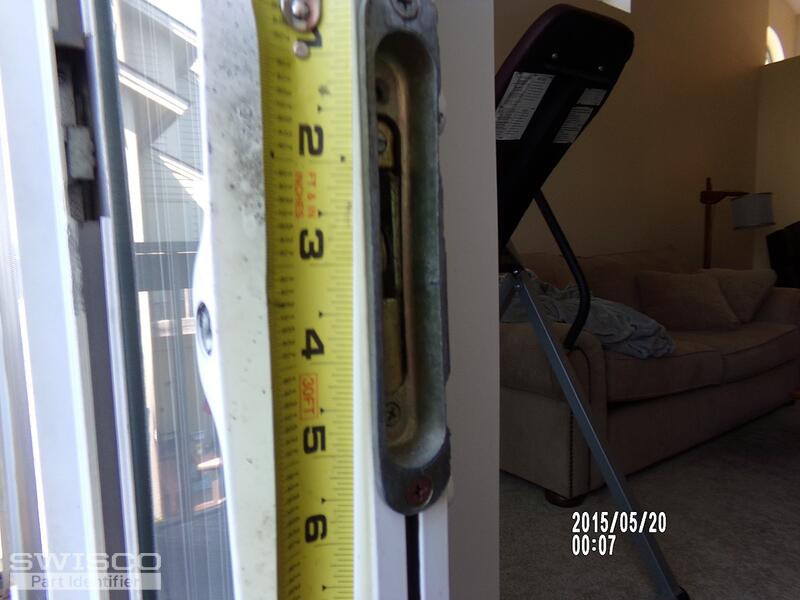

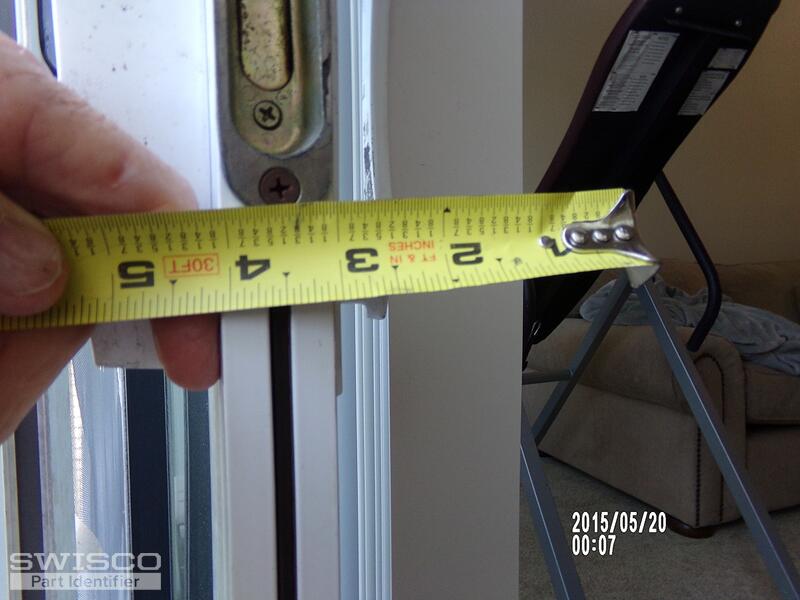

I have sent pics of a sliding door with the lock missing. I have included pics with a tape measure included also to help with the selection of the correct part. Thank you in advance for your assistance
Jimmy

5 user uploaded images

4 Replies

Tom from SWISCO

Jun 13, 2022 3:35 pm

Hello! Looks like you might just need a thumb lever. With that in mind, I would recommend our 82-107. The video below will also show you how these can be installed.

Contractor from Chesapeake Virginia

Jun 19, 2022 8:17 pm

Hi Tom, I'm sorry it has taken me so long to get back to you. I really need the entire handle and the locking device. I have given you all the photos and measurements I think you might need. If there is anything else needed, please let me know.

Jimmy

Tom from SWISCO

Jun 20, 2022 8:04 am

Gotcha, thanks for confirming. In that case my recommendation is the 82-030 handle set and 82-310 key lock (sold separately). I am very confident that these parts will work on your door and are the best picks for the job.

Now, it bears mentioning that my first thought was our 82-086 handle set. This looks identical to your original part at first glance, but you'll notice that the thumb lever on ours is in fact offset down, whereas yours is centered. Since these thumb levers can't be adjusted that means that our part won't align with yours and therefore won't work. I only wanted to bring this up in case you happened to see this set and wondered about it.
