Pin that goes into pivot sash for dh-r30.

Quick Learner from Florida
Apr 6, 2020 3:59 pm
One side of my dh-r30 window won't engage the pivot sash. After looking, the tab on pin that engages the pivot sash is broken off. Can I get a replacement? Thanks.
20200406_144941
1 user uploaded images
5 Replies
Casey
Casey from SWISCO
Apr 9, 2020 6:56 am
SWISCO
EXPERT

With your part still installed in the window, it makes it difficult for us to make an accurate recommendation. If you could please remove it and send us more photos and measurements, it will greater our chances of finding a match. Thank you.

Quick Learner from Florida
Apr 17, 2020 12:43 pm
Hi Manuela. Here are additional photos. As shown in the "good pin" photos, it is a 2" pivot pin. The removed pin is in the "broken pin" photo, but the tab is broken off.
Thanks!

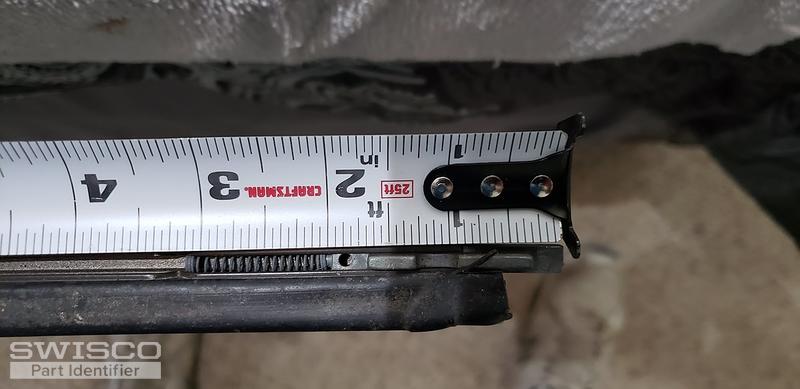

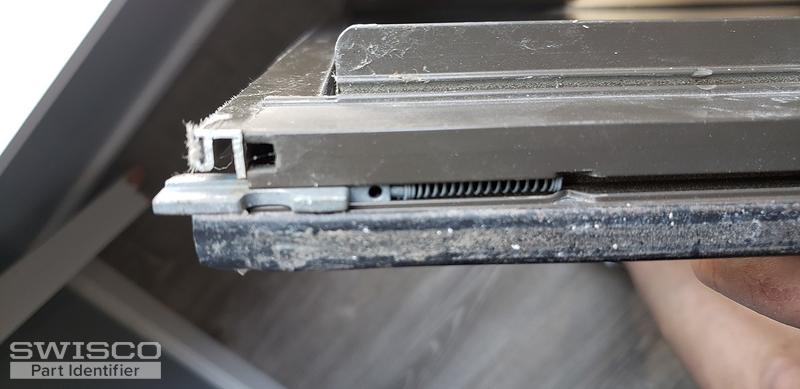

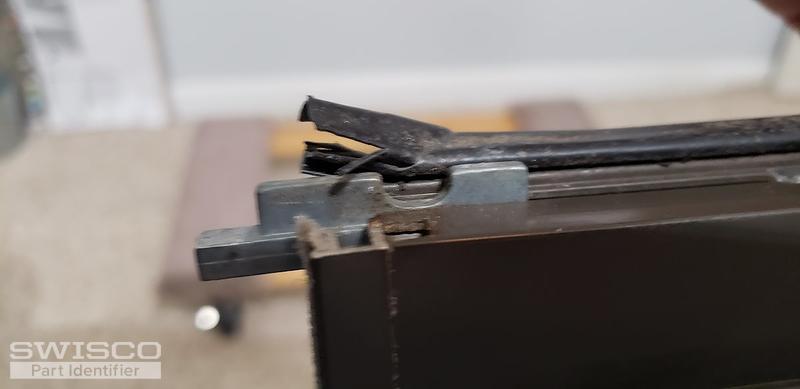

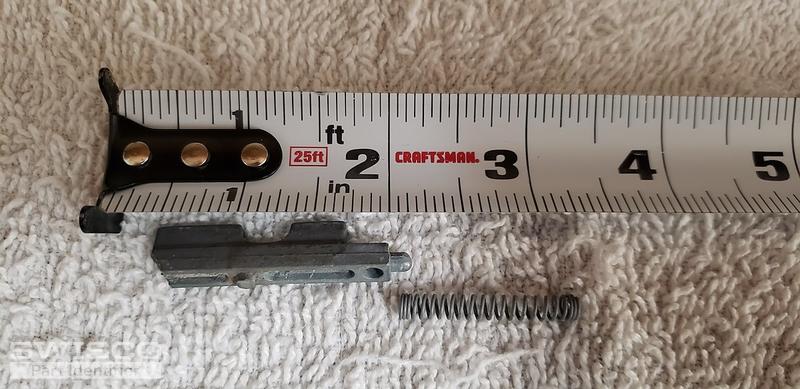

Good pin side view Broken pin Good pin installed
3 user uploaded images
Tom
Tom from SWISCO
Apr 17, 2020 12:49 pm
SWISCO
EXPERT

Thanks for getting back to us! Based on your photos, I think our 26-375 Better Bilt pivot bar is the best replacement part for the job. It looks just like the part in your photos and works the same way, too. Look it over and let me know what you think.

Quick Learner from Florida
Apr 17, 2020 2:17 pm
Hi Tom,
That looks exactly like it - thanks!
Tom
Tom from SWISCO
Apr 20, 2020 7:25 am
SWISCO
EXPERT

That's great news! Please let me know if you had any other questions.
