Pin and thumb screw assembly

Home Owner from St. Paul Minnesota
Oct 31, 2023 5:53 pm

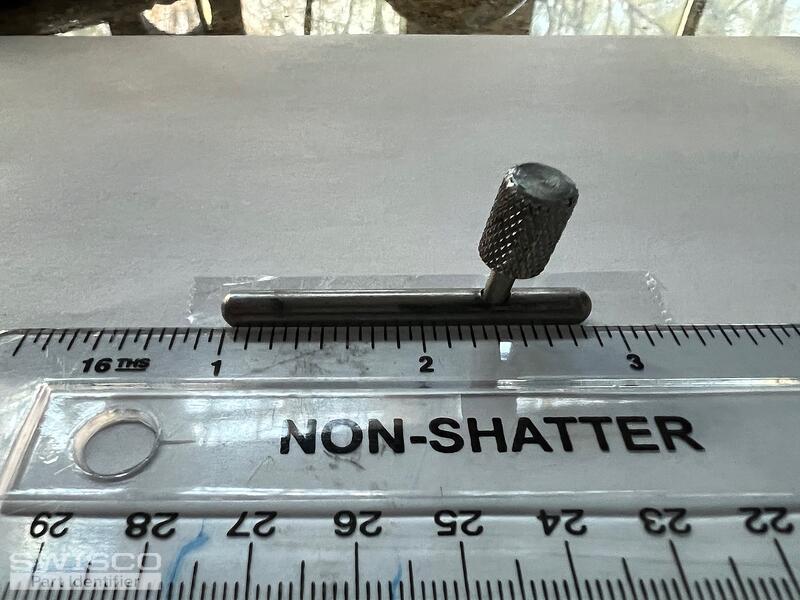

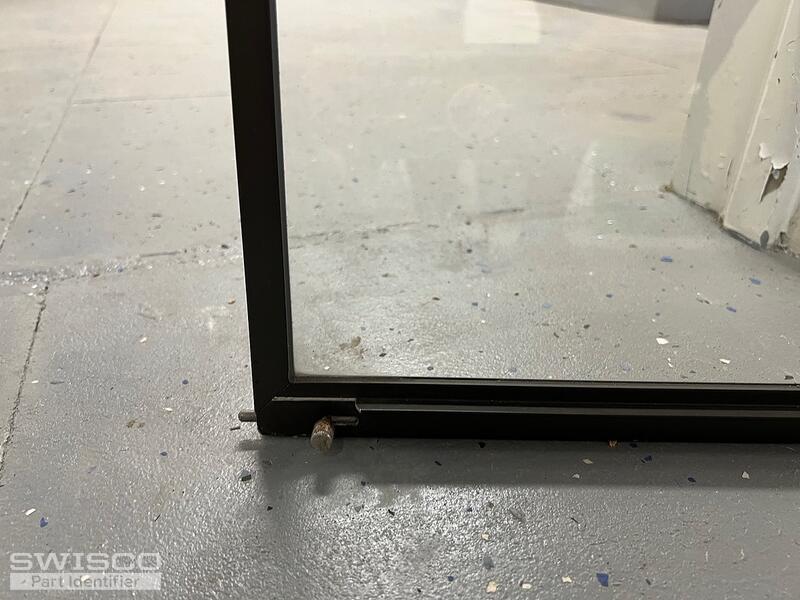

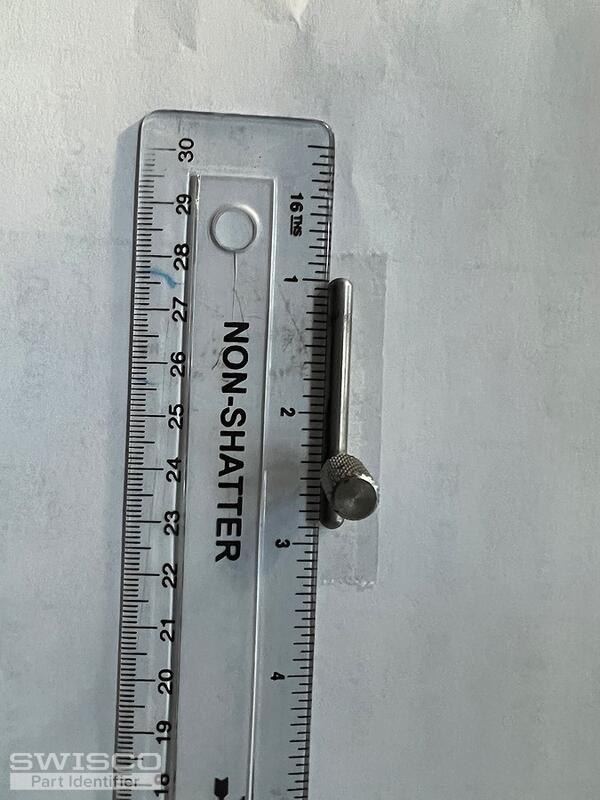

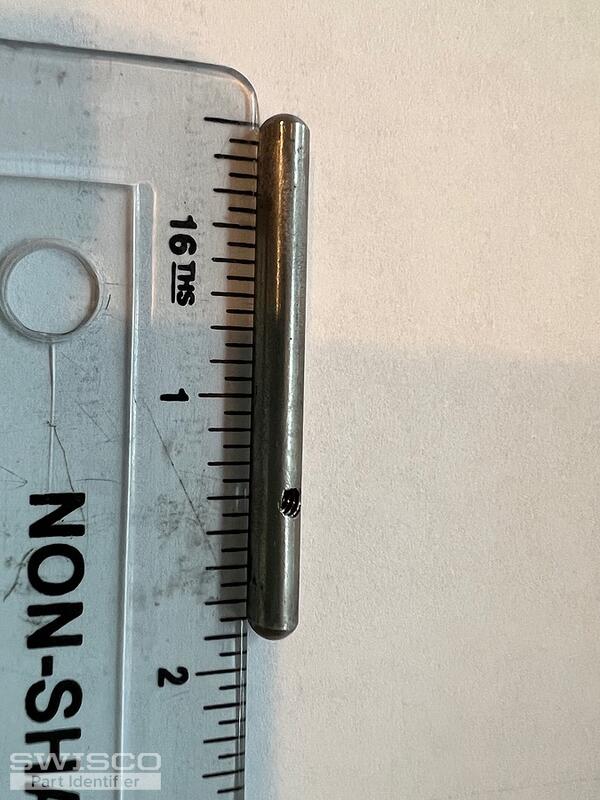

Hello: I am looking for the pin, thumb screw and the spring assembly for the window as shown in the attachments.
Thank you
IMG_5859 IMG_5860 IMG_5856 IMG_5846
4 user uploaded images
3 Replies
+ Add a Comment
Lauren
Lauren from SWISCO
Nov 1, 2023 2:48 pm
SWISCO
EXPERT

Hello, thank you for posting,

We cannot guarantee a direct fit, but the closest we carry is the 91-179 slide bolt. Please review the overall dimensions to see if you think this style could work for your window. Let us know what you think and if you have any additional questions.

Alternate view of 91-179
Alternate view of 91-179

Dimensions for 91-179
Dimensions for 91-179

Home Owner from St. Paul Minnesota
Nov 2, 2023 2:18 pm
Thank you for your quick response. Unfortunately, this seems to be about an inch too long.
I will keep this in mind, in case we need to try it for the other windows.
Regards,
Lauren
Lauren from SWISCO
Nov 2, 2023 2:46 pm
SWISCO
EXPERT

Thank you for informing. Let us know if you have any future hardware questions.
