Pivot Bar?

Start a new Discussion

Home Owner from ohio

Sep 22, 2023 9:23 am

Hello,

Need help identifying broken pieces. One has a # 8 and the other a # 3

Thank you,
Tammy

1 user uploaded image

4 Replies

Tom from SWISCO

Sep 22, 2023 3:43 pm

Hello, Tammy. This part is indeed a pivot bar. Unfortunately, I'm not able to identify it based on a broken piece. Would it be possible to see an undamaged version? The problem is that we sell many different sizes that have this same tip, but they're not all interchangeable.

I'll also need precise written dimensions. Let's start with the distance between the center of the screw hole to the end of the front tip. That's the most relevant size right now.

Once I have those two pieces of information, I'll do my best to find you a good replacement.

Home Owner from ohio

Sep 25, 2023 1:33 pm

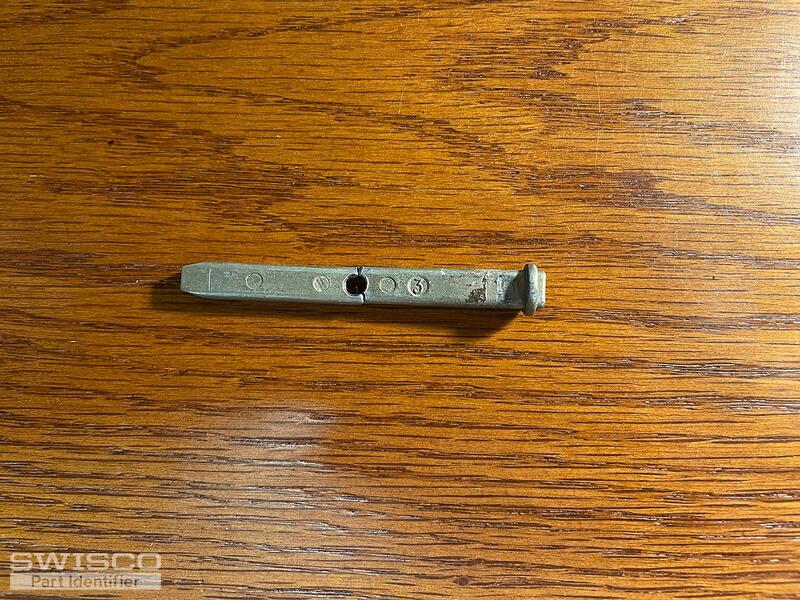

The measurements are "roughly" 2.75 length, 1.5" ctr of hole to head, the head itself is roughly 3/8" overall and that center piece in the middle is roughly ¼"

3 user uploaded images

Tom from SWISCO

Sep 26, 2023 12:39 pm

We unfortunately don't sell anything with a 1-1/2" measurement from hole center to front tip. At this stage I would say that our closest match would be the 26-226; the front hole on this product is set back 1-3/8". I would suggest triple checking your measurements just to be 100% sure.
