Pivot Bar Replacement for Pella Windows

A quick learner from 11733 says:
Hello,

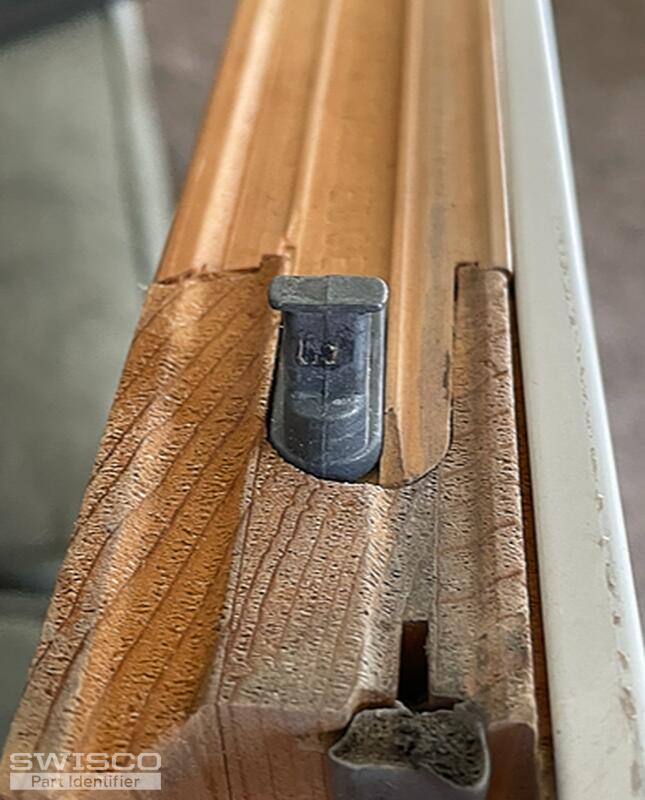

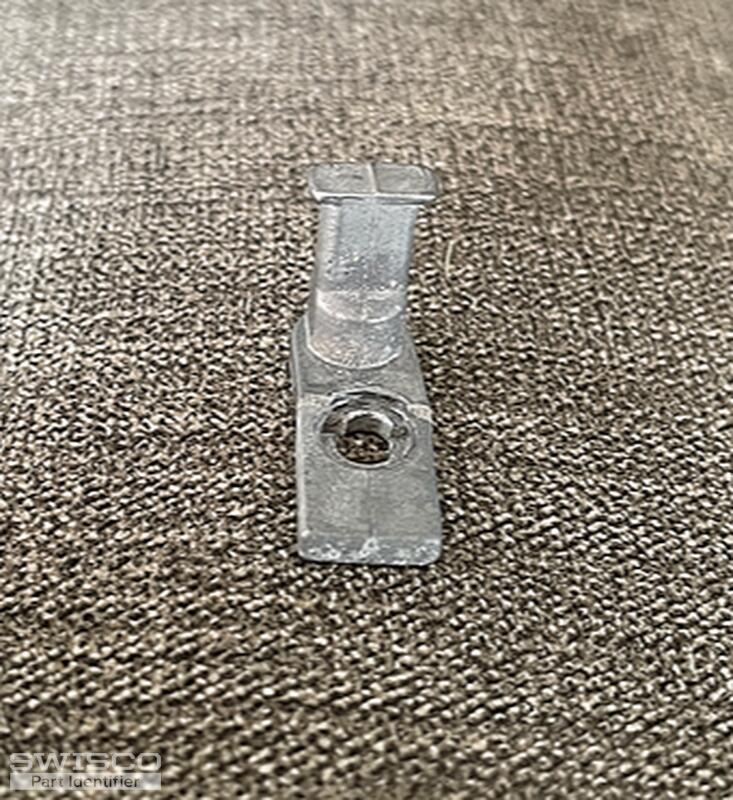

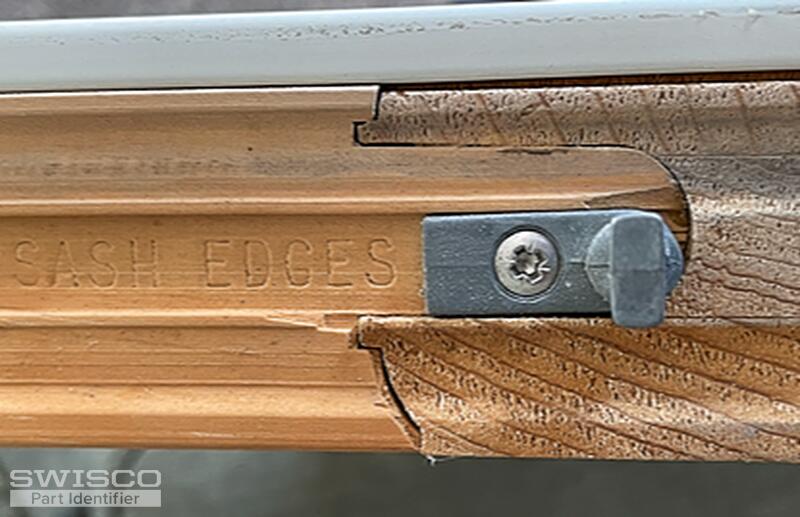

These are the pivot bars currently on my windows and the majority are broken. I ordered the 26-402 : Side Mount Pivot Bar which looked perfect but the pivot piece that inserts is a bit too wide. Any suggestions would be greatly appreciated.
Thumbnail of the uploaded file named IMG-5918.PNG
Thumbnail of the uploaded file named IMG-5919.PNG
Thumbnail of the uploaded file named IMG-5921.PNG
Profile picture of Tom
Tom from SWISCO responded:

I'm sorry to hear our part didn't work for you. To be honest, the 26-402 was the first part to come to my mind when I saw your photos. If that didn't work then I'm at a bit of a loss.

Before we go any further, can you show me a photo of the shoe it goes into? That may give me the clue I need to find a replacement.
