Pivot Bar for 12 year old Jeld-Wen double hung window..

A home owner from All over the world says:
August 16, 2019
Searching for as many of these pivot bars as I can get (up to 3 dozen). Length of bar is 1 15/16"
Width is 15/32"
Height of bar excluding pivot extension: 1/4"
Ht. of bar excluding pivot extension & 1/16" centering edge on back: 3/16"
Overall height of bar incl. pivot extension & centering edge on back: 3/4"
Diameter of circular end of pivot insert of pivot bar: 3/16"
Thumbnail of the uploaded file named E62AAE27-AC2C-4746-9261-3F77B30B3027.jpeg
Thumbnail of the uploaded file named B337E1EC-FEBD-4AA0-94E6-D65C6525734F.jpeg
Thumbnail of the uploaded file named E63CB9AA-63B2-4621-B21B-F44E59C3B988.jpeg
Profile picture of Paul
Paul from SWISCO responded:
August 21, 2019

Hello and thank you for your post. I have never seen a pivot bar quite like this before. Could we have you upload a photo of the pivot shoe that this goes with? Perhaps we can suggest a substitute that will work just the same.
A home owner from All over the world says:
August 22, 2019

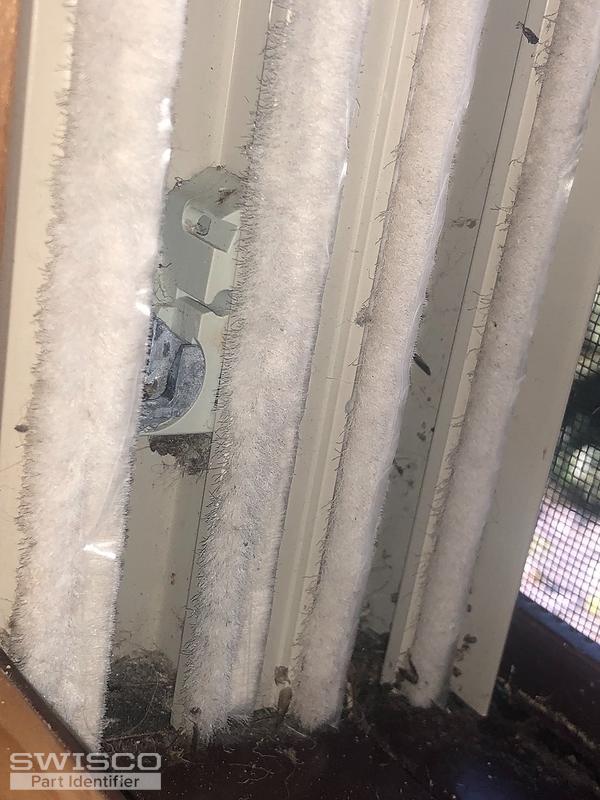

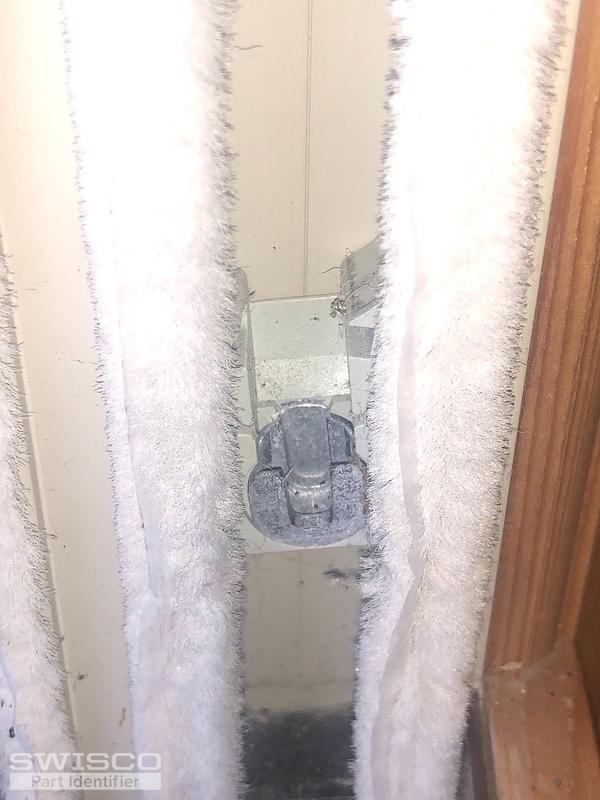

I have uploaded two photos, per your request. I very much appreciate any help you can provide. Thank you.
Thumbnail of the uploaded file named 524EDEC1-9D60-40E3-9C59-74B81717A0DF.jpeg
Thumbnail of the uploaded file named 088980DB-9D26-4832-ACD5-EE9E524BF062.jpeg
Profile picture of Paul
Paul from SWISCO responded:
August 26, 2019

Thanks for the extra photos. Your pivot shoe looks spot on with our 15-175. Take a look and see if you agree. As for the pivot bar, our 26-402 can work with the 15-175. The width of the pivot bar is 13/32" and the pivot come out 21-32". So it should be ok. Take a look at this part as well and let us know of any thoughts you may have.
