Pivot Bar replacement

A home owner from USA says:
September 27, 2017
Hello,

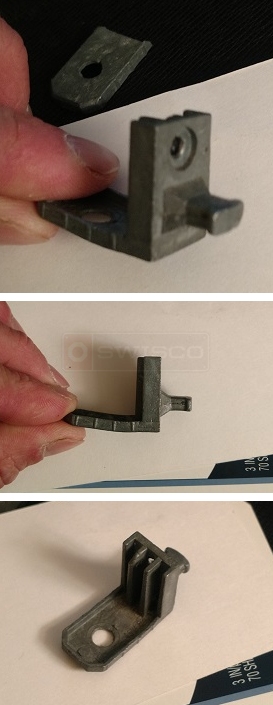

I am looking for a replacement pivot bar for a window that has no markings whatsoever as to who the maker is. It measures 1 1/4" long on the side that screws to the window by 1" long on the side that has the pin on it. It is 5/8" wide. The part of the L that has the pin on it is 5/16" thick and the part of the L that screws to the window is 1/8" thick. The pin is 1/8" thick by 5/16". Any help would be greatly appreciated and this is fairly time sensitive as the home is about to be put on the market.

Thanks ahead of time for your help!
Tyler K
Pivot bar
Profile picture of Paul
Paul from SWISCO responded:
October 3, 2017
The closest we have in your style pivot bar is the 26-407. Where you have 1-1/4", we have 1-5/8". Where you have 1", we have 1-1/8", and the width is 3/4" to your 5/8". The upper leg thickness is 1/8" to your 5/16", and lower leg is 3/16" to your 1/8". The pin is 3/16" X 5/16". Do you think you can make this work, despite the differences?
Corner Pivot Bar
Corner Pivot Bar
26-407
$2.44
Removing Rusted Pivot Bars
Removing Rusted Pivot Bars
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
