Pivot Lock Shoe

Handy Person from Minnesota

Oct 16, 2023 7:29 pm

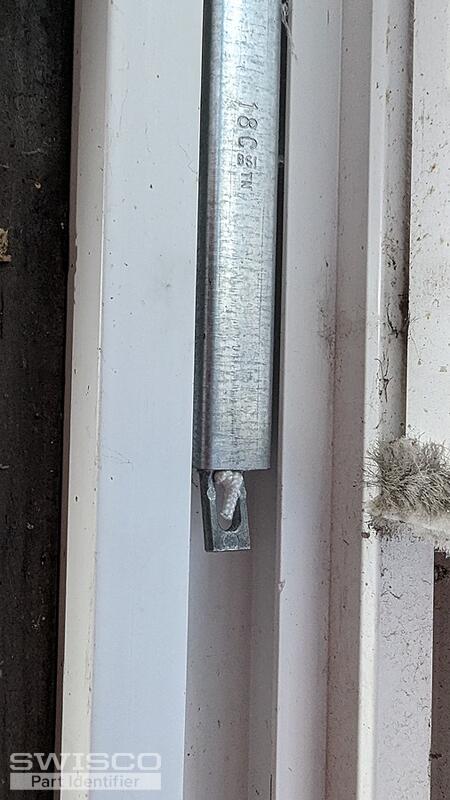

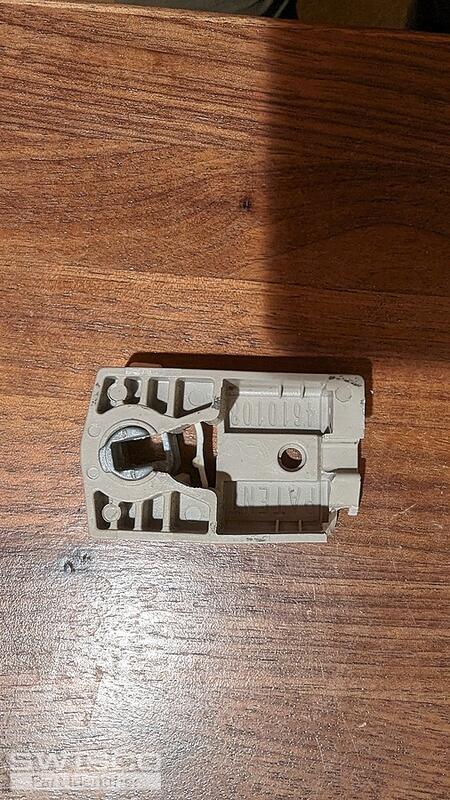

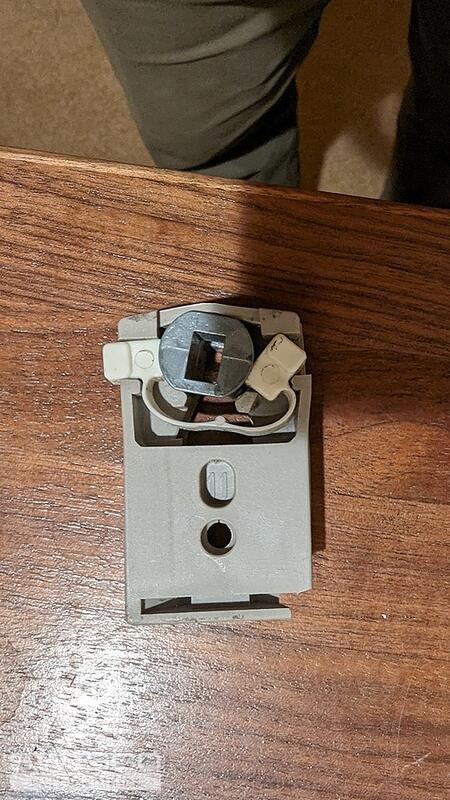

I am looking for a replacement for a pivot lock shoe that is Stamped Patent 4610108.

3 user uploaded images

4 Replies

+ Add a Comment

Handy Person from Minnesota

Oct 17, 2023 1:31 pm

0.5" depth
1.23" width
2.0" Height

Emily from SWISCO

Oct 17, 2023 2:45 pm

EXPERT

Hi there!

Take a look at our 15-135 pivot shoe. This was the first part to come to mind but ours is 1-1/4" wide. You may want to double-check just to be safe. Review the specifications and see what you think.

Alternate image for 15-135

Handy Person from Minnesota

Oct 17, 2023 3:11 pm

Do you have a recommendation for a pivot show with a metal top to hold the terminal clip?

The current plastic top model I have is a point of failure.

Emily from SWISCO

Oct 18, 2023 8:43 am

EXPERT

We don't have a version of this shoe with a metal top, unfortunately. I'm afraid it's the best and closest match we can offer. I am very sorry for the inconvenience.
