Pivot Lock Shoe

Home Owner from New Hampshire

Mar 30, 2026 3:15 pm

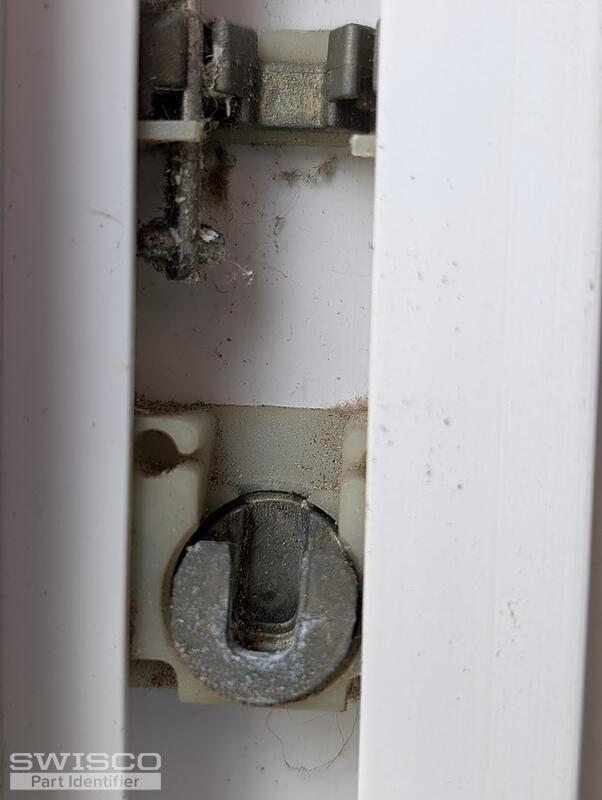

I have Lockheed Window NUCON double hung windows that need the pviot shoes replaced. I have attached a few photos. Please let me know if you need further information

4 user uploaded images

4 Replies

Paul from SWISCO

Apr 2, 2026 11:50 am

Hello,

We can't be sure with the pivot shoe still installed, but the 15-188 and 15-178 would be a good place to start. You'll need to remove the pivot show to compare the specifications below to yours. See the videos related on this page to assist you. Thanks for posting!

Alternate image for 15-188

Dimensions for 15-178

Home Owner from New Hampshire

Apr 2, 2026 12:04 pm

Thank you. I was just able to remove the shoe from the track a few minutes ago. It is the 15-188. I really appreciate you locating the part number for me!

Paul from SWISCO

Apr 2, 2026 12:32 pm

Great! We'll be here if you need anything else.
