Pivot Lock Shoe, Counterweight

Question

I need to identify and order replacement Pivot lock Shoes for my tilt-out window. I attached photos of the existing Pivot Lock Shoe. There are no markings I can see on the piece. The dimensions of the shoe are: 1-1/4" tall X 1-1/4" wide X 1/2" thick.

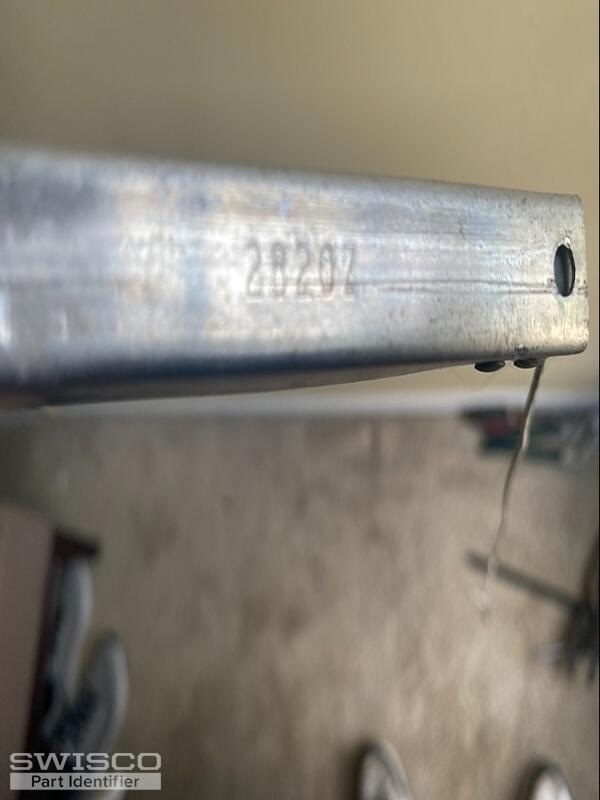

I also need to order counterweights for the windows. The number stamped on the frame of the counterweight is 2820Z. The dimensions of this counterweight is
29" Long X 9/16" wide X 5/8" High.

The final item I need is the Top Sash Lock. I also attached photos of this item.

Casey · Accepted Answer

Hello,

Your pivot shoe resembles the 15-105 but please note that it measures 17/32" thick.

As for your balances, we should be able to help but we would need to see clear photos of both ends of the metal channel, as well as the clip at the end of the pulley cord, to confirm what you need. Please also confirm the number of balances that you need.

I believe that you may have corner tilt latches that were discontinued. We suggest removing the old tilt latch, reinstalling the top side corner screw to keep the sash together if necessary, and then installing the 26-193 and 26-194 top-mounted tilt latches with a #6 pan head screw like the 33-089. Just be very careful not to drill into the glass. Please note that we do not carry a replacement for the latch shown on the side of your sash. Take a look and see what you think.
