Pivot Lock Shoe replacement

A handy person from Somerset, NJ says:

April 9, 2023

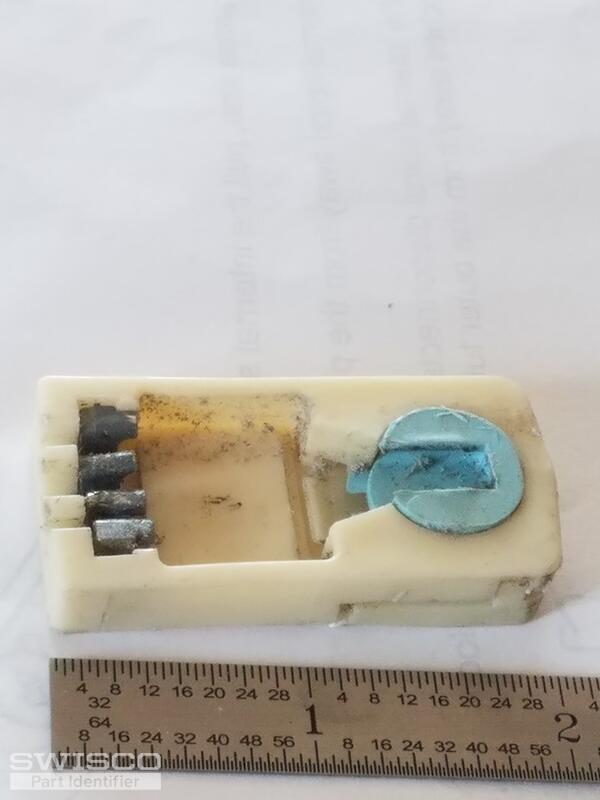

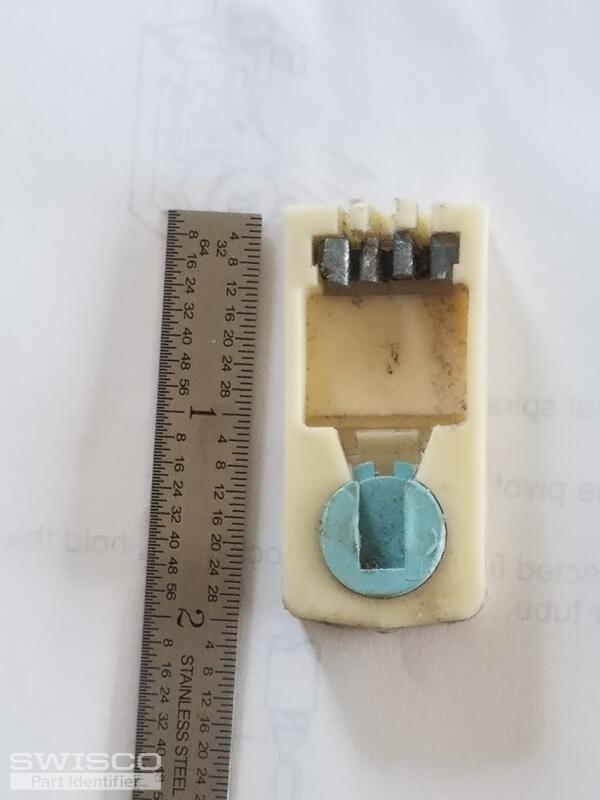

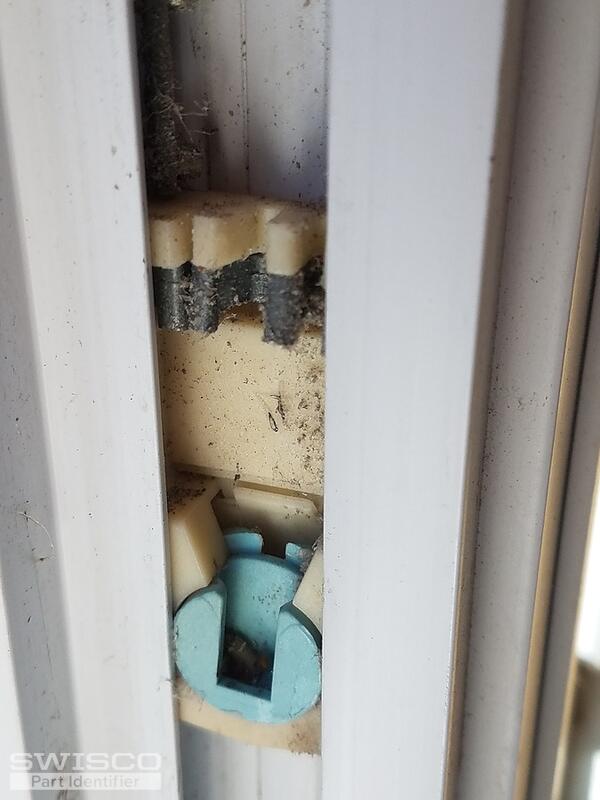

Photos attached are of a pivot lock shoe from Survivor series 2100 window installed in 2003. The teeth in the lock shoe do not securely hold the 'prongs' in the internal spiral. Upon reassembly, when the sash is put back in and moved up or down you can here the spiral slip out of the teeth in the lock shoe. The dimensions of the pivot lock shoe are 3/8" thick X 15/16" wide X 2" long. Can you provide a replacement part number.
FYI, I have already purchased replacement spiral balances for this window but have not installed them yet.

Thumbnail of the uploaded file named 20230408_142453.jpg

Thumbnail of the uploaded file named 20230408_142432.jpg

Thumbnail of the uploaded file named 20230403_135543.jpg

Jasmine from SWISCO responded:

April 10, 2023

Thanks for reaching out. Given the shape of the plastic cam in your pivot shoe, I'll need to see a photo of the existing pivot bars in your window. There are a few possible replacement shoes I can recommend but I am concerned that your pivot bar will not be compatible with our shoe.

Are you able to provide photos of your pivot bar?

A handy person from Somerset, NJ says:

April 11, 2023

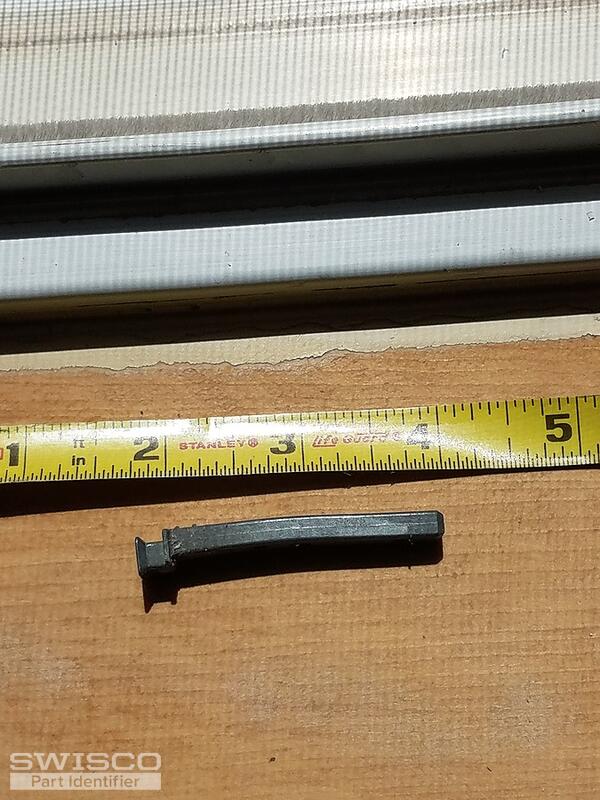

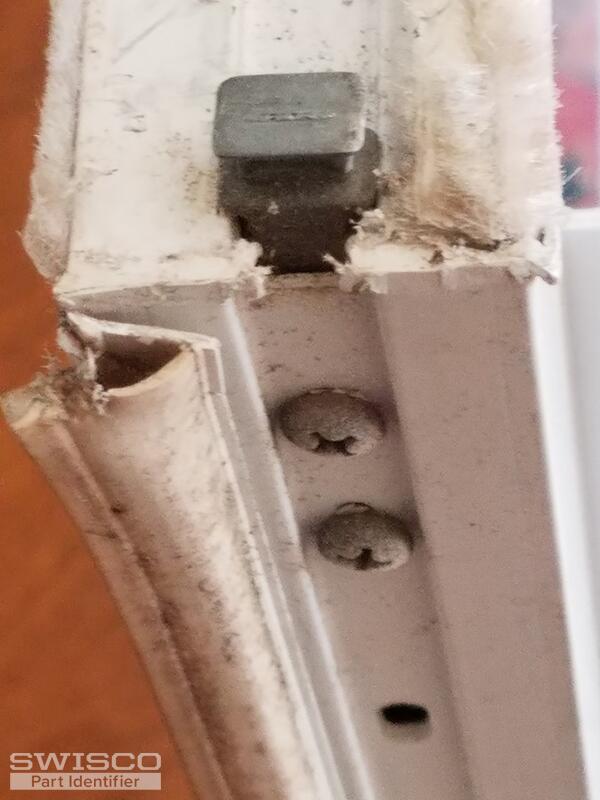

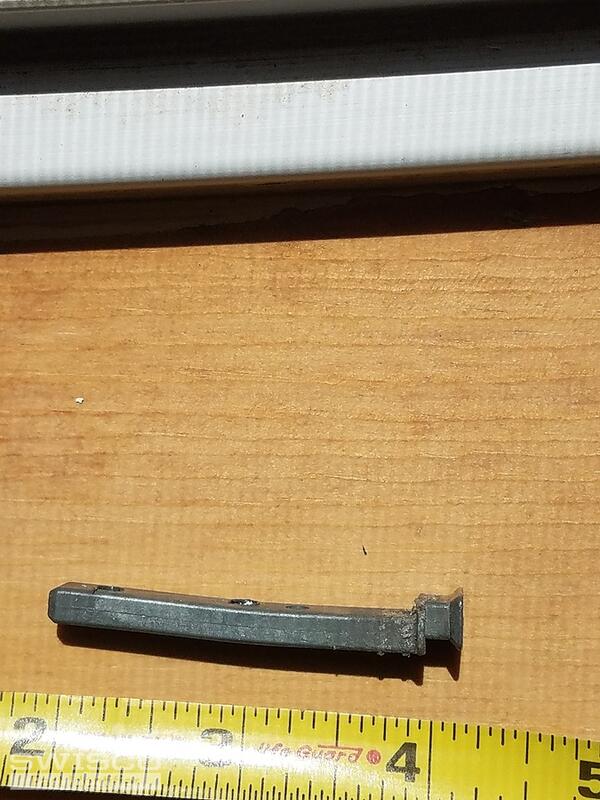

Thank you for the prompt response. Attached are photographs of one of the pivot bars from my window, removed and installed. As you can see it is bent. I assume this is from 20 years of hanging. In addition to the pivot lock shoes, please specify the part number for this also.

Thumbnail of the uploaded file named 20230411_123344.jpg

Thumbnail of the uploaded file named 20230411_123717.jpg

Thumbnail of the uploaded file named 20230411_123734.jpg

Jasmine from SWISCO responded:

April 13, 2023

Your pivot shoe looks like an older, discontinued shoe that is no longer made. I suggest using our 15-045 pivot shoe. Compare the dimensions to your existing shoe to confirm that this will be a fit for your window.

Dimensions for 15-045

We have your old pivot bar in stock, which is part 26-424 however, it would not be compatible with the recommended pivot shoe. You'll need to use the 26-297. Look over the dimensions to confirm the installation hole measurements. This should work fine as a replacement in your window.

Alternate image for 26-297

A handy person from Somerset, NJ says:

April 13, 2023

The old pivot shoe is definitely 15/16" wide. The length and thickness match your recommended part 15-045. Do you have any that match the 15/16" width?
The slot in the window frame that the pivot shoe slides in is just about 1". I think the 1" wide pivot shoe might work. I am willing to give them a try if you cannot supply a 15/16".
The pivot bar you suggest will fit. But, of course, that is dependent on the pivot shoe used.
Thanks for the follow up.

Jasmine from SWISCO responded:

April 17, 2023

Thank you for confirm the measurements. Take a look at our 15-212. This shoe can also be used with our 26-465 pivot bar as well. See what you think.

Alternate image for 15-212
