Pivot Locks Shoes & Window Snap In Glazing Bead

Start a new Discussion

Handy Person from 02864

Sep 9, 2024 8:55 pm

Hello, I am unable to identify these parts. Let me know if you are able to supply these. Thanks, Pedro

4 user uploaded images

4 Replies

Lauren from SWISCO

Sep 12, 2024 10:17 am

Hi Pedro, thank you for posting,

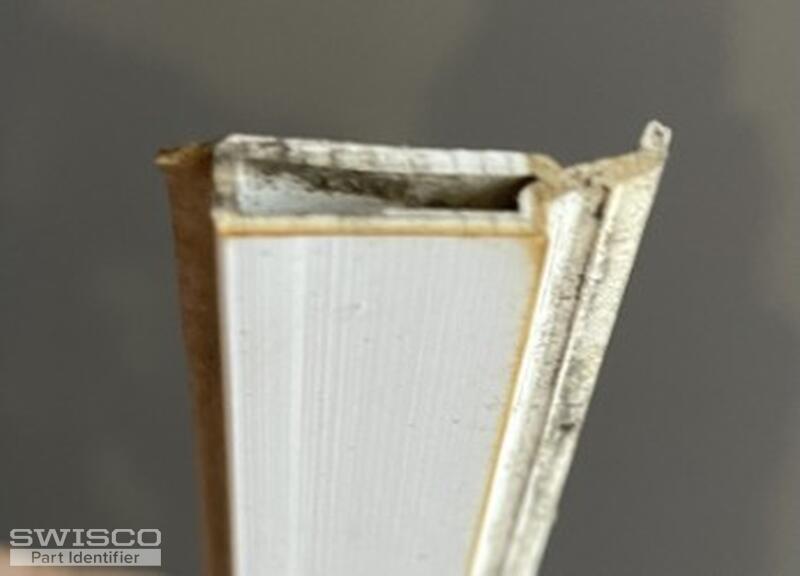

For the glazing material, please start by reviewing the style and dimensions of the 55-015 glazing bead. Compare to your original to confirm a good match!

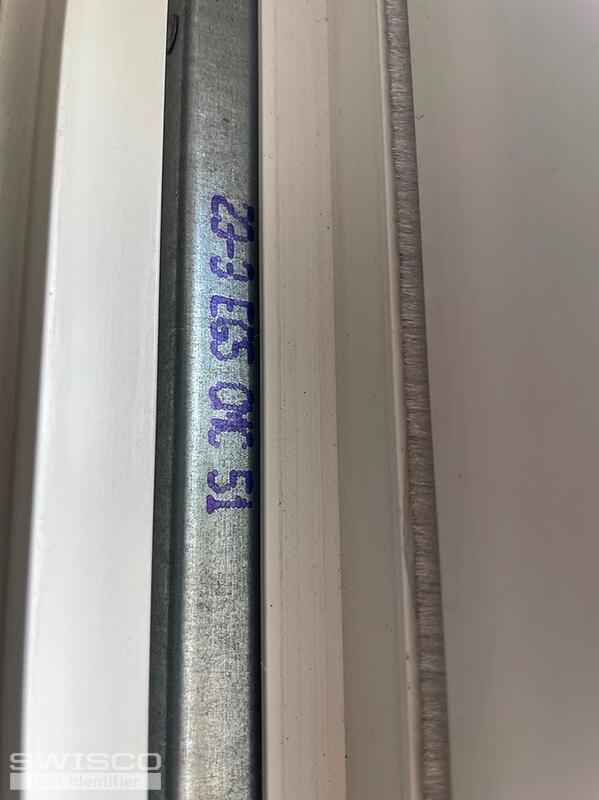

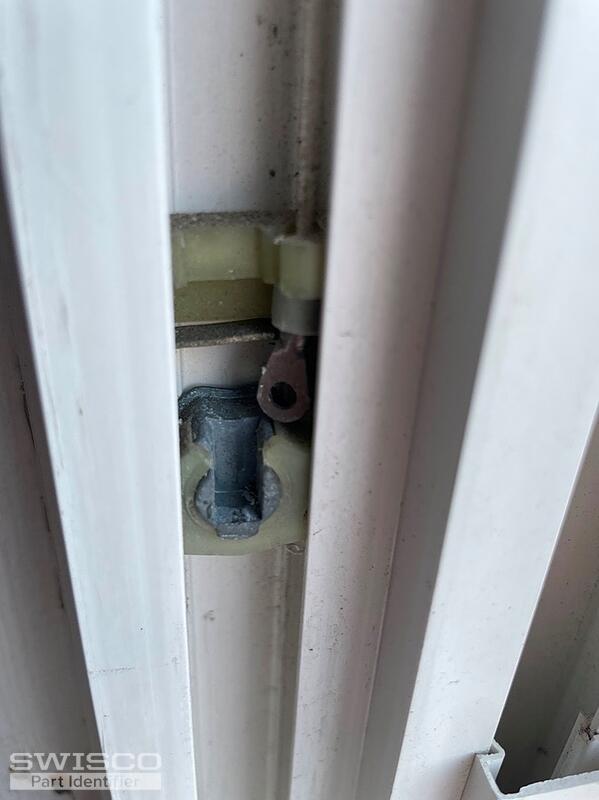

For the pivot shoe, can you provide the width and thickness of the shoe? Can you also show us the balance attachment that engages with this show in the the window channel? Thank you!

Handy Person from 02864

Sep 12, 2024 3:20 pm

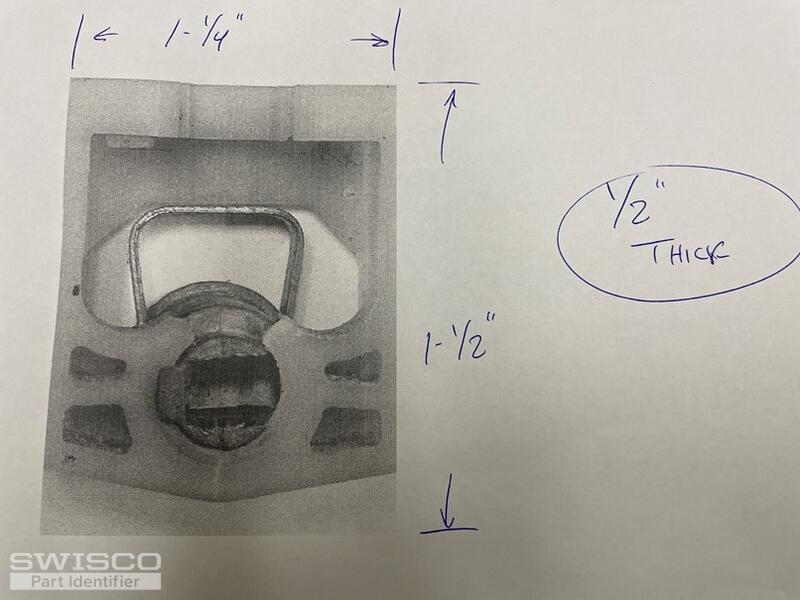

Hello, please see attached. Let me know if you need additional information. Thanks, Pedro

3 user uploaded images

Lauren from SWISCO

Sep 13, 2024 11:28 am

Thank you,

We do not carry an exact match, but we recommend reviewing the dimensions of the 15-216 below. Let us know what you think and if you have any additional questions!

Alternate image for 15-216
