Pivot Pin Identification

Question

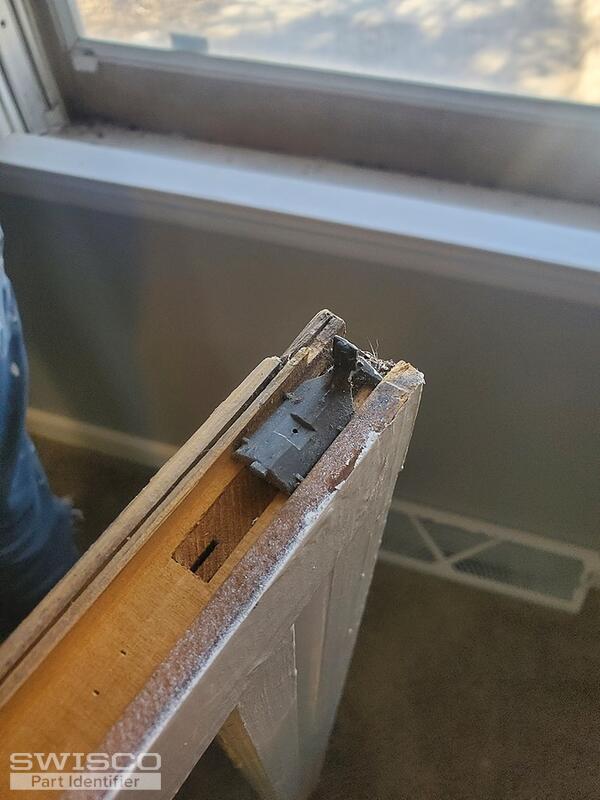

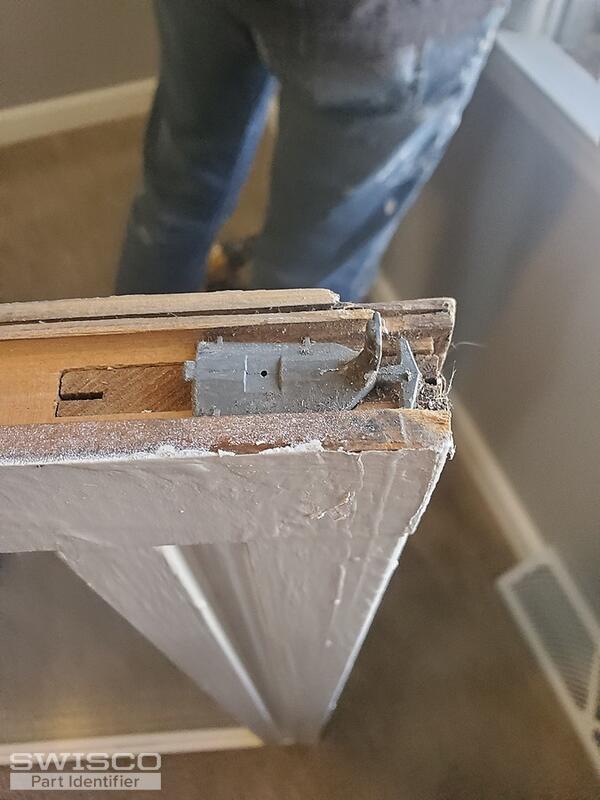

These pivot pins, shoes, or whatever are from a double hung window.  Possibly 1950's?  but maybe newer?

Lauren · Accepted Answer

Hello, thank you for posting,

Unfortunately we do not carry this exact pivot pin. We feel our 17-056 tilt pivot might work for your window. The base is 13/32" wide by 1-7/16" tall and the pin itself sticks out 5/8", if you include the base, or 1/2" without the base. Finally, the rectangular shape of the pin is 1/4" by 3/16" high.

See if it will fit in the pivot shoe. You would use a screw and a small nail in the pin to secure it to the sash. Let us know what you think!
