Pivot Pin for a SIL 3 Series 700 SH

Quick Learner from Florida

May 10, 2017 4:34 pm

This pin holds the tilting pane in place and is inserted on the bottom of the window hold by a single screw. The pin inserts on the sash on the side of the window I have 26 similar windows hopefully they will no break

6 Replies

Tom from SWISCO

May 11, 2017 10:32 am

We will be happy to help to you. Could you kindly upload a photo to us of the part in question so that we may view your inquiry further?

Quick Learner from Florida

May 11, 2017 11:44 am

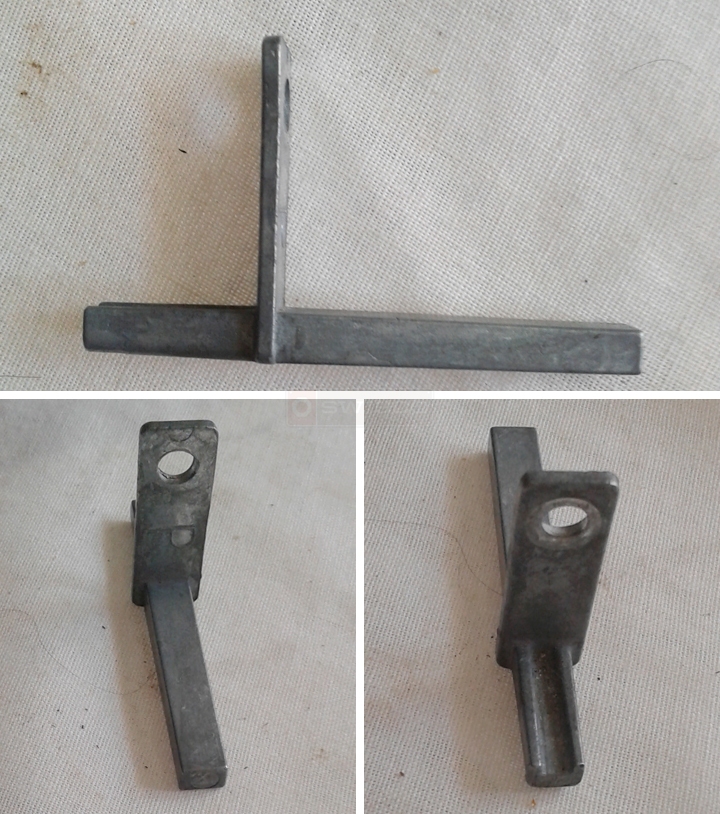

Photos

Paul from SWISCO

May 16, 2017 12:13 pm

Thanks! I'm afraid that don't have an exact replacement for this. I'm actually not sure what could work. Could you possible replace yours with our 26-326, or maybe even the 26-361?

Quick Learner from Fl

May 19, 2017 9:01 am

I really don't know I guess I should ask American Craftsman. The piece that you see the long piece is the support goes on the bottom of the pane, the one with the hole screws on the side and the short one inserts on the sash. They say you have it. Thanks.

Paul from SWISCO

May 22, 2017 10:03 am

I'm afraid we do not. I'm not sure if this exact part is even made anymore. The two parts I mentioned are the closest possible matches I was able to come up with, though I cannot guarantee that they would work.
