Pivot Pin and Keeper for Malta Double Hung Vinyl Window from 2000

Contractor from Syracuse New York
Aug 30, 2023 4:29 pm

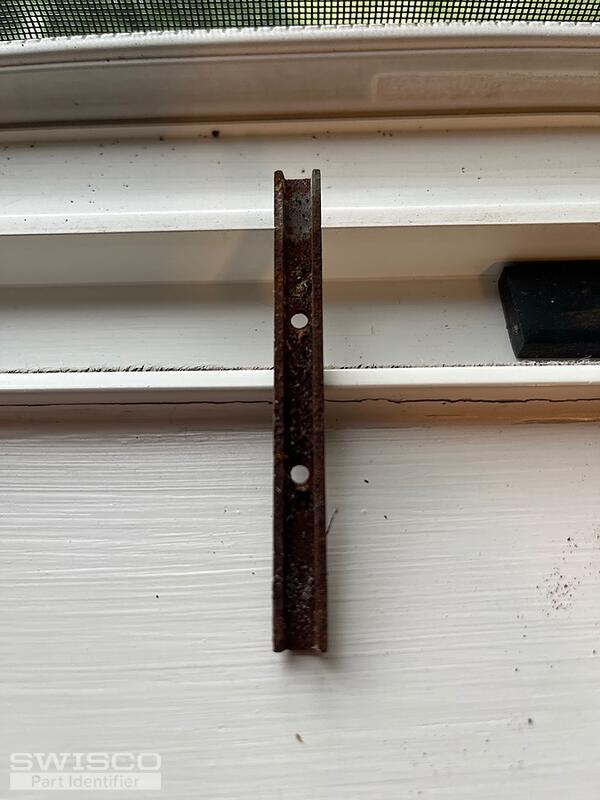

Can you assist is locating replacement pivot pin and its keeper for a Malta Vinyl Window from approximately 2000. The pin is 3 inches long and 5/16" wide. Will need at least two pins (one for left and one for right, and the shoe or keeper)

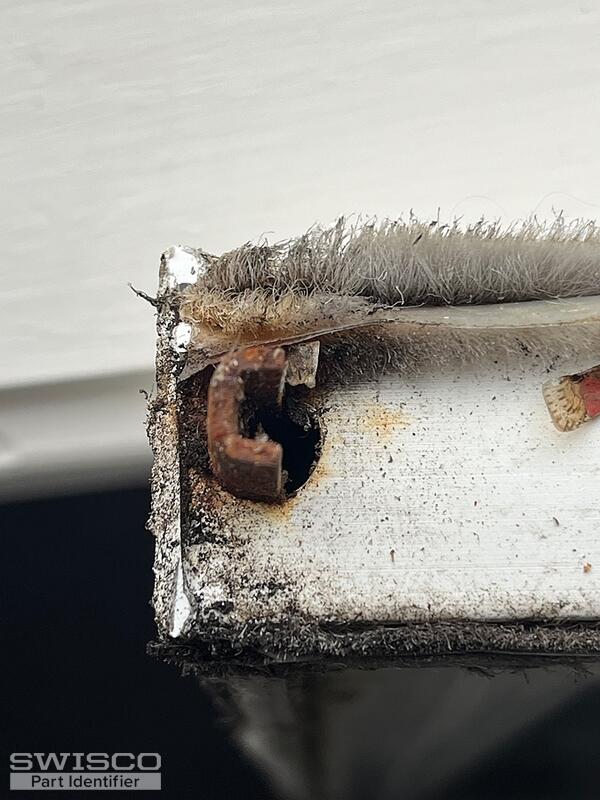

IMG_5527 IMG_5525 IMG_5523
3 user uploaded images
1 Replies
Emily from SWISCO
Aug 31, 2023 3:40 pm

Thank you for reaching out to us. Our 26-083 is similar to your old pivot bar. It measures 2-1/2" long but the length doesn't matter too much. What does matter is the hole placement; you only need one of your old holes to match up with one of ours. Take a look at the specifications and see what you think.

Detail of 26-083
Detail of 26-083

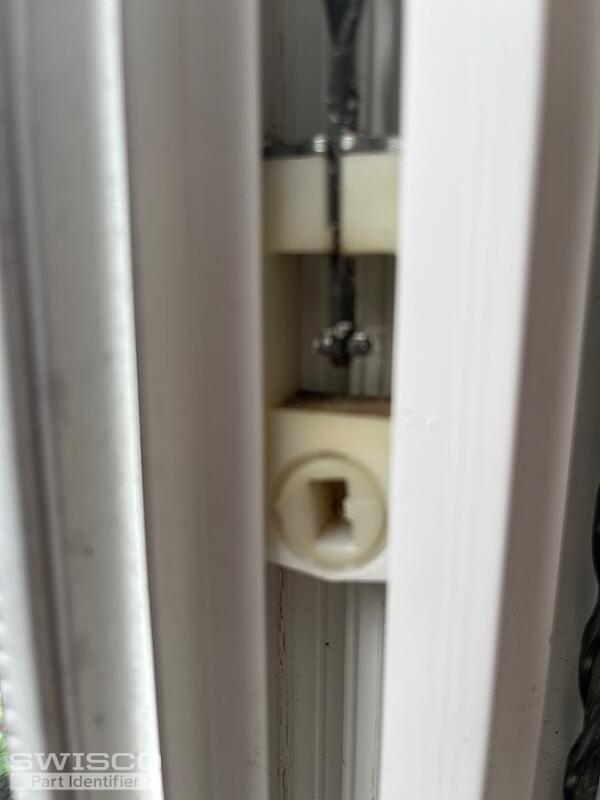

I'm afraid I can't identify the pivot shoe when it's still installed though. I would need to see a photo of it removed from the window track along with the written-out thickness and width dimensions.
