Pivot Shoe

Home Owner from New York
Jun 24, 2024 1:22 pm
The measurement
Width 11/4
Depth 9/16
Height: just under 2 inches (see photo)
Sent from previous email

Would the replacement part be
15-118
I know it is a bit shorter
But one person said length is not as important as width and depth
It is a non-tilt window
Ecker bought in 1983
Approx 30-40 lb
Thank you
Barbara

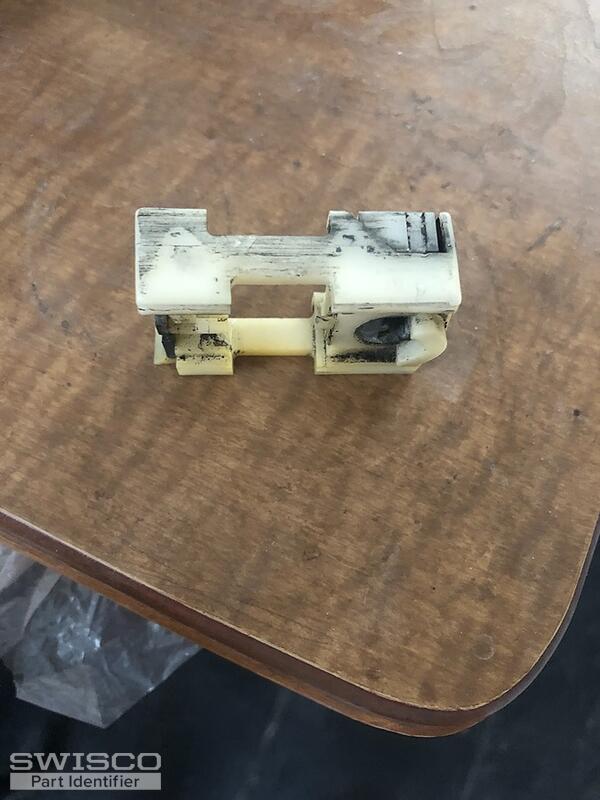

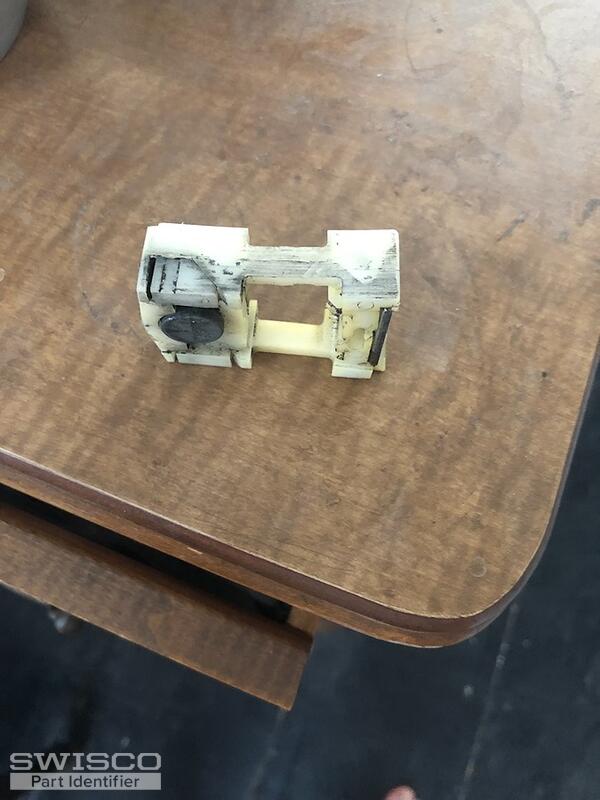

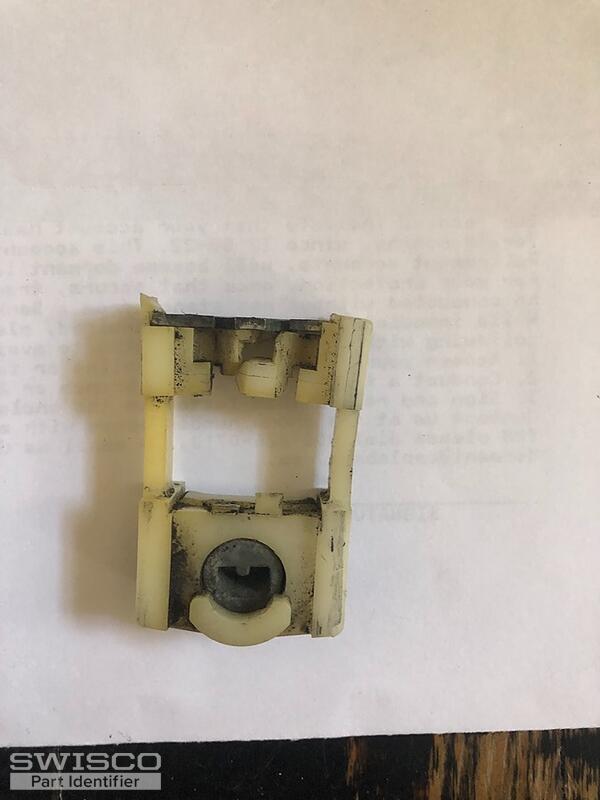

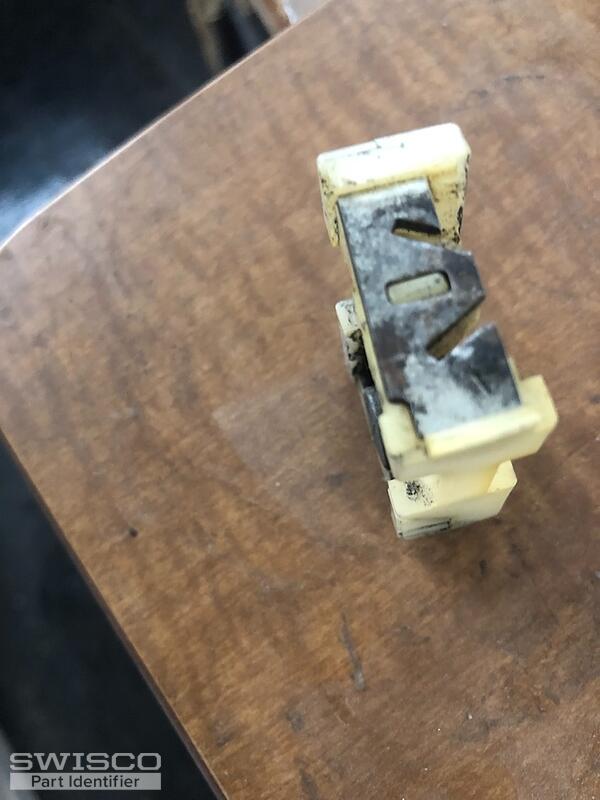

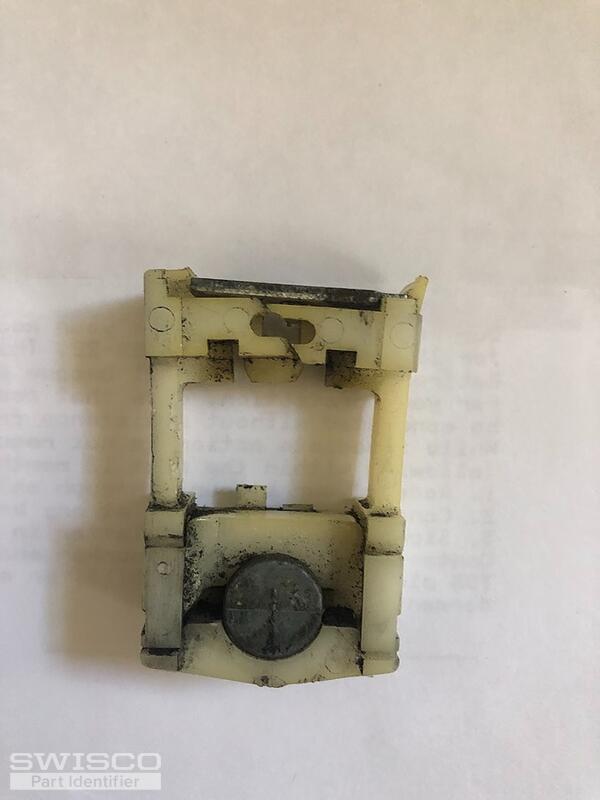

IMG_3299 IMG_3297 IMG_3298 IMG_3294 IMG_3296
5 user uploaded images
1 Replies
Lauren
Lauren from SWISCO
Jun 26, 2024 2:15 pm
SWISCO
EXPERT

Hi Barbara, thank you for posting,

Correct, the main dimensions to consider are the width and thickness of the pivot shoe. At first sight, your original reminds me of the 15-015 shoe, but this style has a 17/32" thickness. Please double check dimensions to confirm the best fit!

Dimensions for 15-015
Dimensions for 15-015

If the thickness is 9/16", the 15-118 should be a suitable option for your window. Please let me know if you any questions!

Alternate image for 15-118
Alternate image for 15-118
