Pivot Shoe

A handy person from Tallahassee says:
Hi

I bought 8 of the 15-045 but the cam opening for the pivot bar was too small.

The installed pivot shoe is approximately 31/32 in wide. 3/8 thick and slightly less than 2 in long (about 1 15/16).

See the attached photos.

The cam opening seems to be like the 15-212 (5/16 X 3/16)

The slot in the pivot shoe track is 2.130 in (the slot allows one to install the shoe in the sliding track)

What would be the best replacement?

Thank You

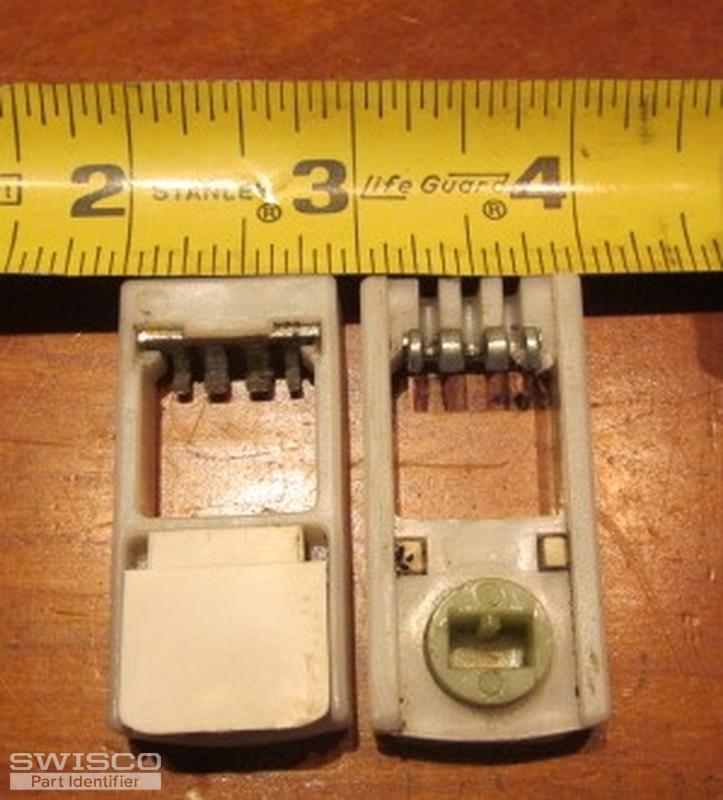

Thumbnail of the uploaded file named IMG_1370.JPG

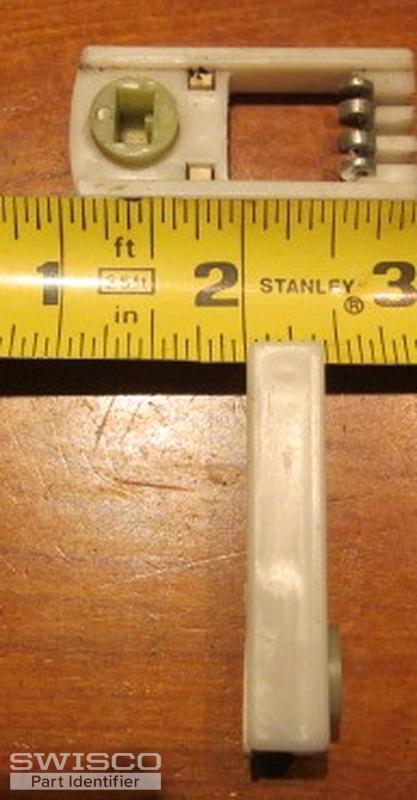

Thumbnail of the uploaded file named IMG_1372.JPG

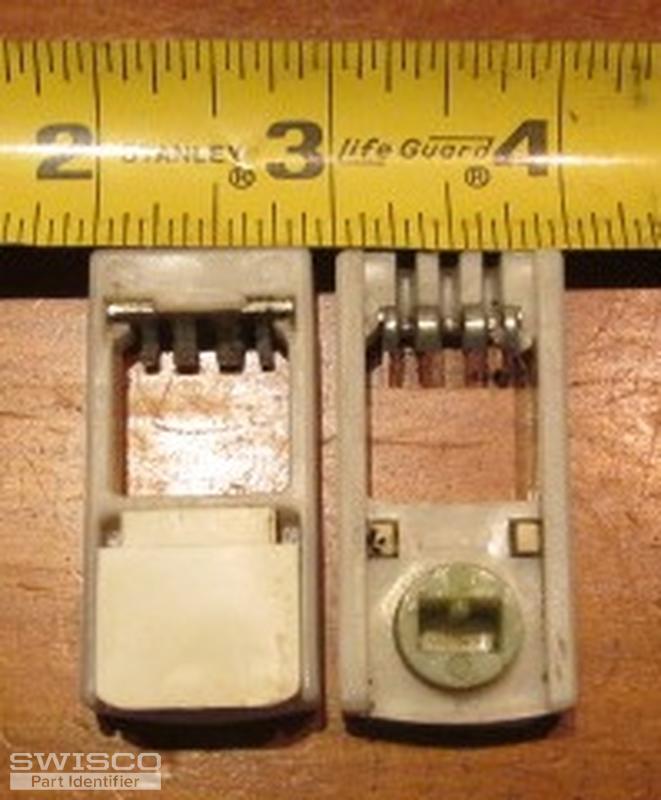

Thumbnail of the uploaded file named IMG_1371.JPG
Profile picture of Bob
Bob from SWISCO responded:

Take a look at our 15-134. This matches the width and thickness you've cited (the height of the pivot bar is not particularly important). Look it over and see what you think.
