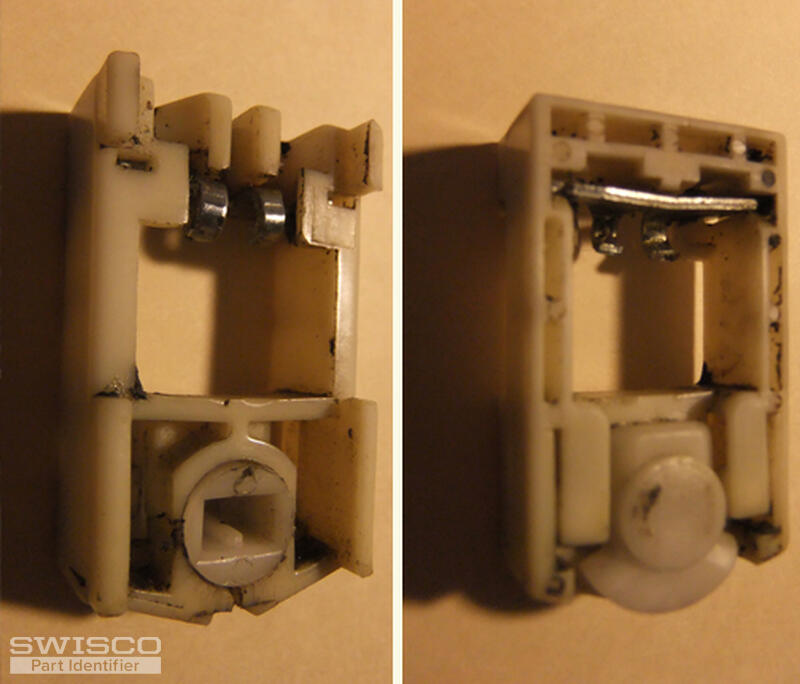

The pivot shoe that I removed from my Gentak window is 2 1/4 long, 1 1/4 wide,5/8 thick. But the claw at the top is facing the rear of the shoe, In your pictur the tit in the middle of the swivel is on the top and mine is on the bottom I have just order 6 blocks 15-047. Please tell me that I shouldn't have any problem with them
Thank You
Bob
Pivot Shoe for Gentak window
Landlord from Washington C H Ohio
Oct 10, 2012 10:30 am
1 user uploaded image
4 Replies
Paul from SWISCO
Oct 11, 2012 8:03 am
Thanks for posting, Bob. I agree: our 15-047 Pivot Shoe appears to be a good match to your own hardware. Just double check to make sure that all the dimensions match!
Alternate image for 15-047
Close up view of the 15-047 pivot bar insert.
Quick Learner
Oct 17, 2012 4:49 pm
Thanks Paul, the windows that I repaired are 7 ft tall and your 15-047 was a match and it turned out like new money
Thanks again
Bob
Thanks again
Bob
Paul from SWISCO
Oct 18, 2012 8:07 am
Great to hear, Bob! Please let us know if you have any other questions, I'd be more than happy to help.
