Pivot Shoe

A quick learner from USA says:
June 10, 2022
The measurements are .47 thick. .97 width. 2.01 length. I incorrectly ordered 15-045 and it did not work for me. Please help.

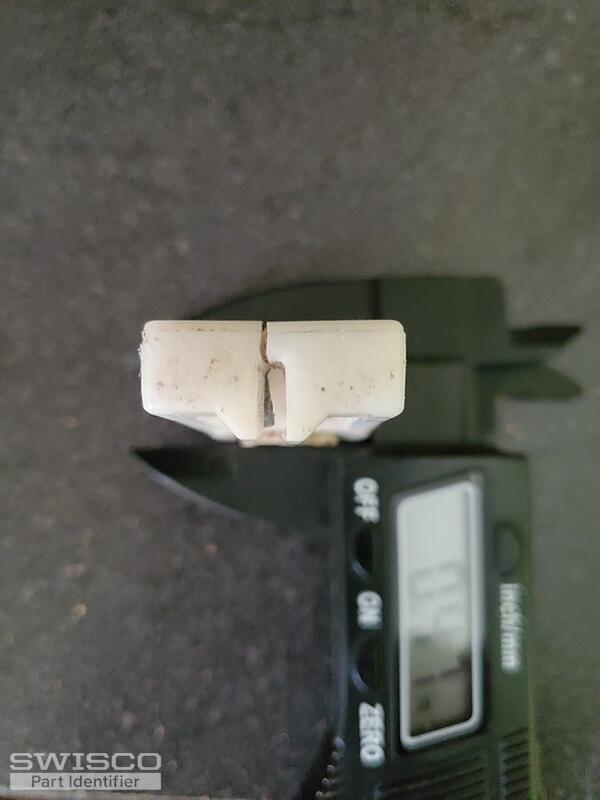

Thumbnail of the uploaded file named mms_attachment_0_d66bf3391c9baefff1865c66f0f9347b.

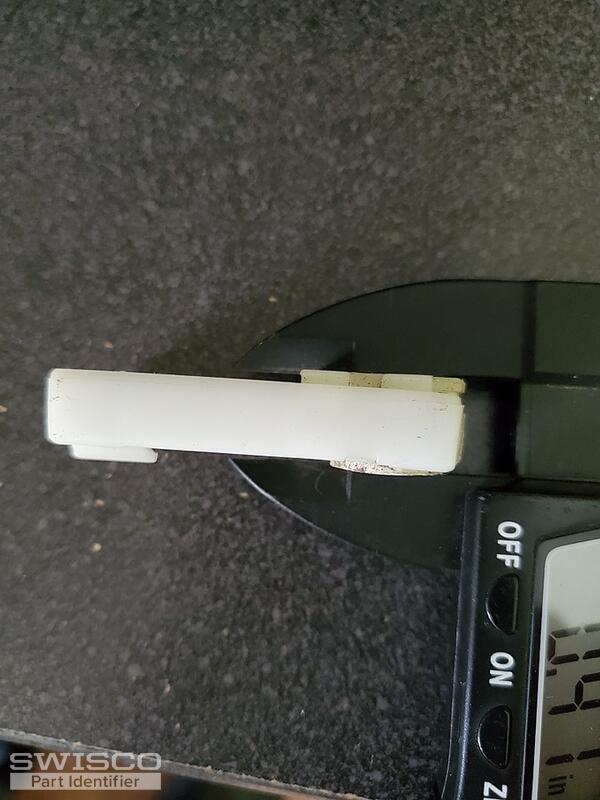

Thumbnail of the uploaded file named mms_attachment_0_748760ec557cc73eaf8159275903a245.

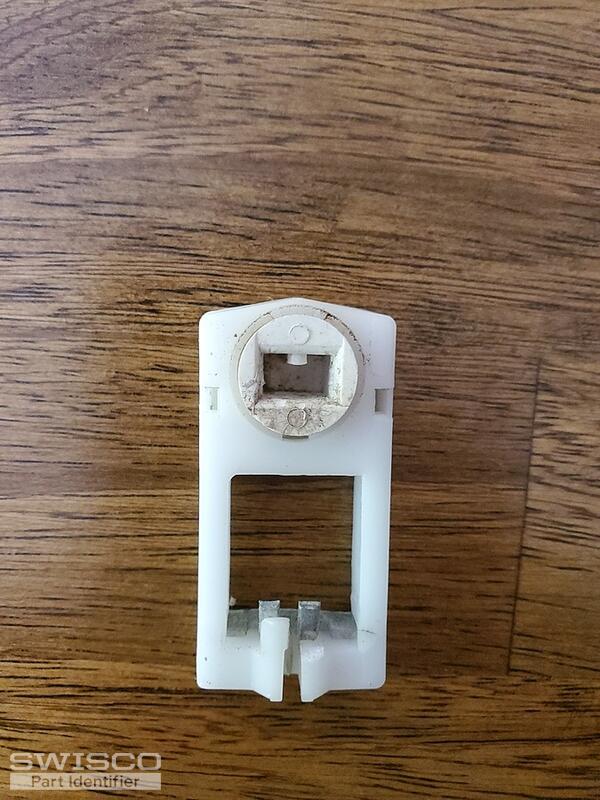

Thumbnail of the uploaded file named mms_attachment_0_b90ed57067b2ba3c1772b998da5c3aa0.
Profile picture of Paul
Paul from SWISCO responded:
June 16, 2022

Hello,

We'd be happy to help but we'll need you to confirm the housing thickness in the middle with the two legs instead of the top or bottom. Also, please confirm the width and height of the pivot bar that fits into the white center cam? Thank you!
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-173
$2.72
