Pivot Shoe

Handy Person from Randolph Ohio

Jun 26, 2023 4:59 pm

Hello,

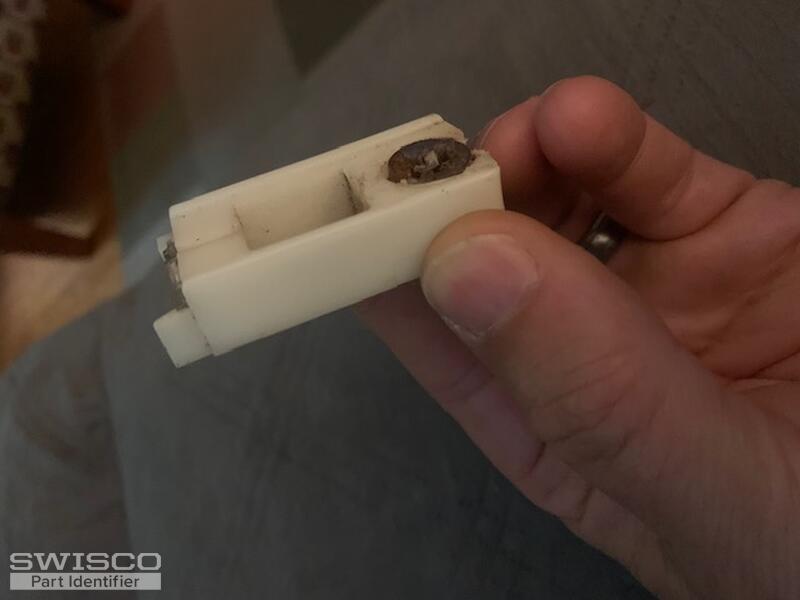

My name is Brad and I'm having trouble finding parts for my no name window. I need pivot shoes. 2.16 x .534 x .976. Looks like the pivoting part is black or gray, and the rest is white.

Thank you,
Brad

4 user uploaded images

4 Replies

Emily from SWISCO

Jun 27, 2023 11:36 am

Hi there, Brad.

I recommend you start by taking a look at the 15-212, 15-211, and 15-173. Carefully go over the dimensions and see which one matches up with your old part.

Let us know if you have any questions!

Handy Person from Randolph Ohio

Jun 27, 2023 5:53 pm

Hi,
Thank you for the information. It looks like the 15-211 is the shoe I need. Could you suggest a pivot bar and spiral spring tool that will work with this shoe?

Much appreciated!

Thanks,
Brad

Emily from SWISCO

Jun 28, 2023 8:21 am

This shoe is compatible with a handful of pivot bars but the best match will ultimately depend on your original. I can narrow down some options if you can show us a photo of your old pivot bar removed from the sash.

As for the tool, see the 75-006 for tilt windows.
