Pivot Shoe

Question

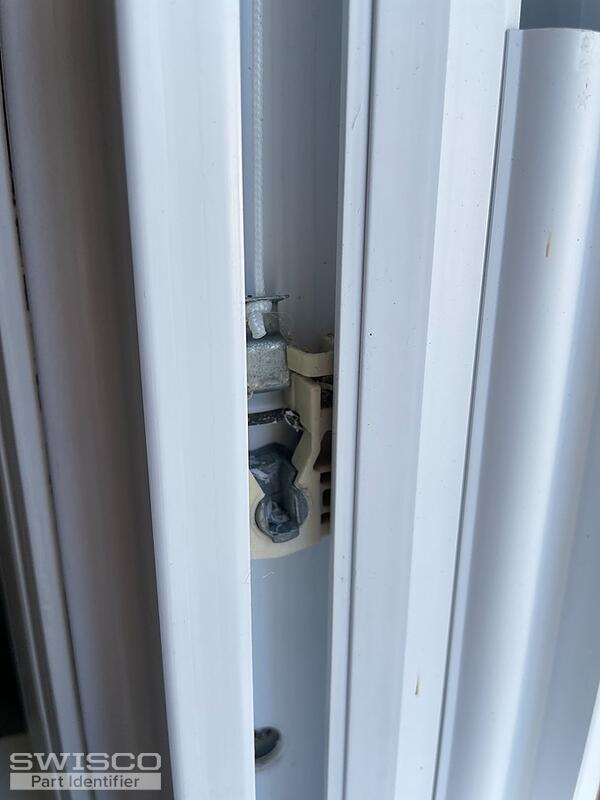

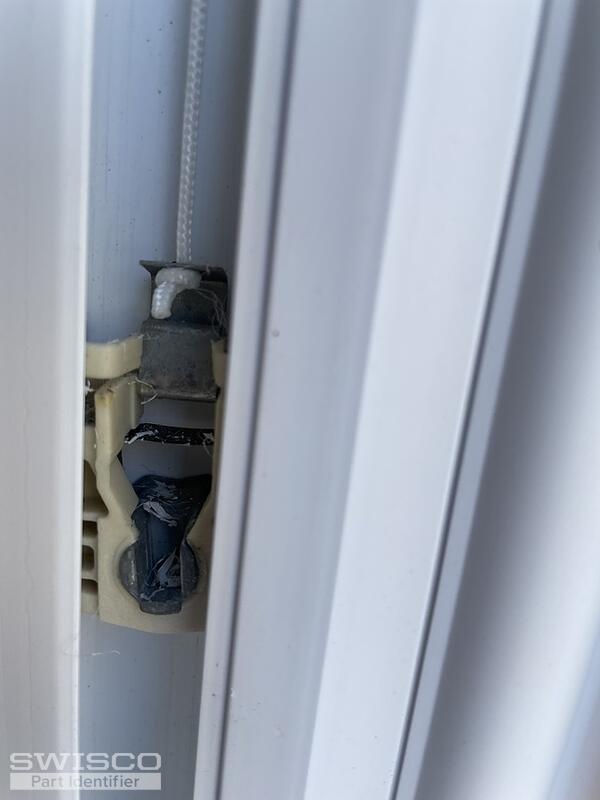

Pivot shoe measurements 9/16" deep , 1 5/16 wide, 1 7/16 high
Cant seem to find a shoe with the 1 7/16 measurement, but does that matter??
Windows approximately 22 years old
Replaced a couple pivot bars (26-021) 7 to 8 years ago.
I am capable of doing the work, just want to make sure I get correct parts.
measurments are difficult without removing the shoe but everything is still working ok but some plastic around a couple of pivots is crumbling and I would like to replace them before they become a problem.
Will be thankful for any advice or help you can provide.
Thanks, Ray C.

Tom · Accepted Answer

Hello, Ray. Your pivot shoe here appears to be a great match for our 15-169, but it will ultimately come down to size. Removal of the shoe to verify its dimensions is a routine and often necessary part of the replacement process, and we do recommend that you check that before you buy anything. While I do think our 15-169 is potentially the part you want, this is the only way that you can confirm.

I can at least tell you that width and thickness are the only relevant dimensions. Height isn't all that vital and you can safely ignore it.

Alternate image for 15-169
