Pivot Shoe....

Home Owner from Georgia

May 28, 2014 4:07 pm

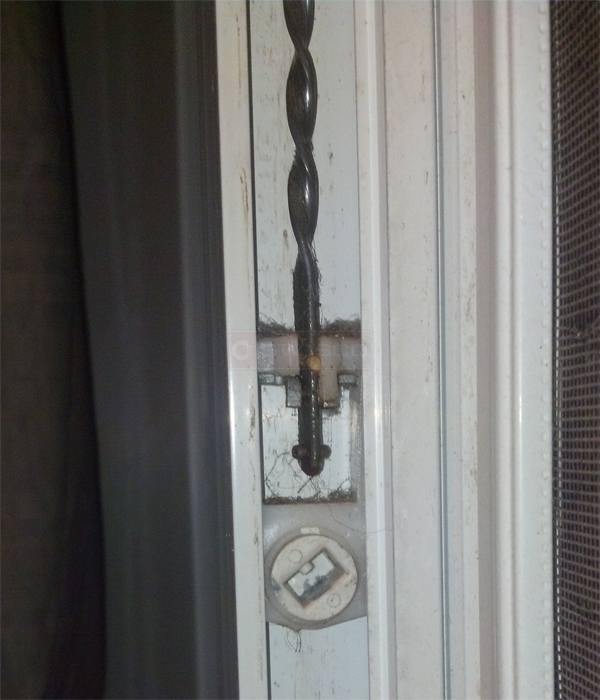

I am trying to locate a pivot shoe for my windows. I was told that they are possibly Capitol 740 series. The pivot shoe that I ordered from your company was a perfect fit except for the hole that the window attaches/pivots on because it needs to be larger. Do you all have something with these measurements but has a larger fit for the window to swivel on?

6 Replies

Home Owner from Georgia

May 29, 2014 3:00 pm

The opening for the pivot bar is 1/4" High and 3/8" wide if that helps

Home Owner from Georgia

May 29, 2014 3:52 pm

I have finally found the sticker on the window... They are MI 165 series window.

Paul from SWISCO

May 30, 2014 2:20 pm

This looks like our 15-212 to me. Carefully compare it to your own hardware and see if you agree.

Quick Learner from Georgia

May 30, 2014 2:46 pm

Thank you for your response Paul! The cam is the right size, but the pivot shoe is actually too long. The 15-045 is the correct measurements. Does it matter if it is longer?

Tom from SWISCO

May 30, 2014 3:41 pm

Height doesn't matter. What's most important is the width and thickness.
