Pivot Shoe Replacement part needed -

A handy person says:
February 1, 2018
Hi,

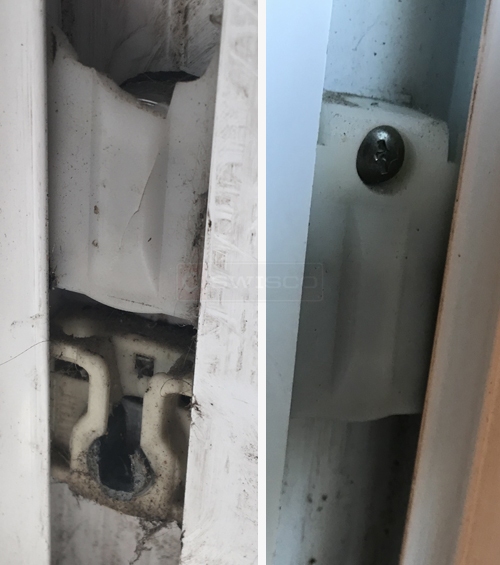

Attach are the pics of the part that I need to replace on a sliding window.
The piece on the top that has broken.
I sent a pic of the other window with the piece no broken and the part from the broken window
If you could help me with finding the correct part I would really appreciate it very much
Thanks
Dave
Coil assembly
Profile picture of Paul
Paul from SWISCO responded:
February 6, 2018
We recognize the pivot shoe as a 15-111 shoe, which uses Series 160 1/2"-wide coil springs. The cover that goes with this balance system is 15-150S. Please compare these parts to see if they will work for your repair.
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-111
$2.44
1/2" Coil Single Support
1/2" Coil Single Support
15-150S
$1.10
