Pivot Shoe not fitting into pivot Bar

A home owner from Virginia says:
October 1, 2020
I thought I bought he correct pivot shoe 5/8 thick. But after i replace 4 of them and tried to re hang the windows the pivot bar wont fit into the Pivot Shoe. Now i got 20 pivot shoes that wont work and a wide open window. Is there a different pivot shoe that will fit.If that little piece of plastic in the middle of the pivot shoe was remove then i believe the pivot bar would fit.

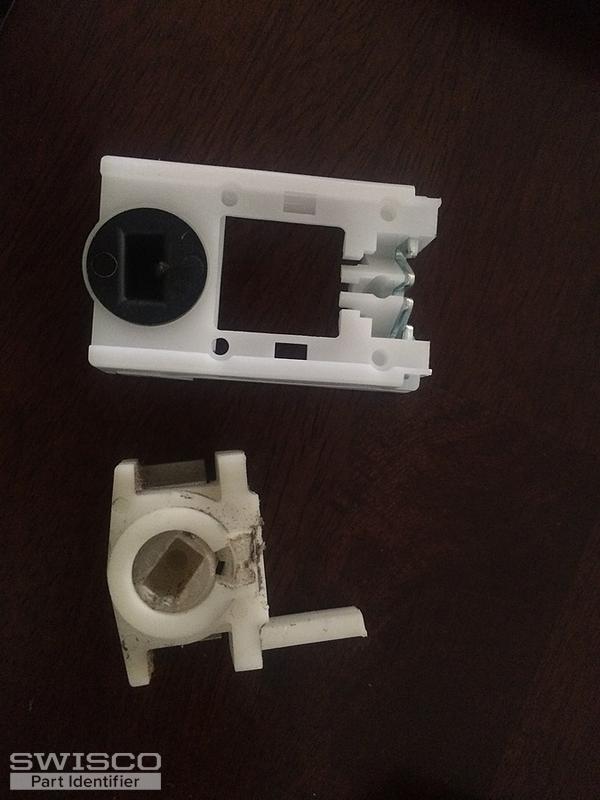

Thumbnail of the uploaded file named front of pivot shoe.JPG

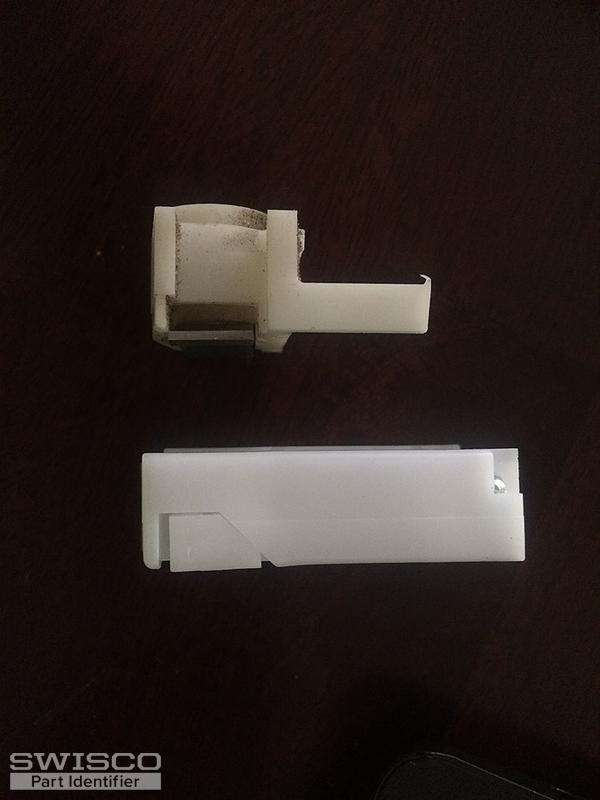

Thumbnail of the uploaded file named side of pivot shoe.JPG
Profile picture of Tom
Tom from SWISCO responded:
October 6, 2020

Your old pivot shoe isn't made anymore. In my experience, the 15-070 works well as a substitute, though some customers have told me that they had to file it down a little to get it to fit. Others tell me that it works perfectly fine as-is. That's one of those things you won't know till you have it in your hand, unfortunately. Either way, the 15-070 is the best possible replacement option we can recommend.

Pivot Shoe, 5/8" Thick
Pivot Shoe, 5/8" Thick
15-047
$2.20
Stainless Steel Pivot Bar, 2"
Stainless Steel Pivot Bar, 2"
26-313
$2.35
Pivot Bar, 3"
Pivot Bar, 3"
26-040
$1.57
Thermal Gard Pivot Shoe
Thermal Gard Pivot Shoe
15-070
$4.72
