Pivot Shoe and Bar

A quick learner from 02045 says:

May 28, 2020

Thank you for your help. Please let me know if additional information is needed.

Pivot bar
2 1/4" long
3/4" wide
3/8" deep

Photo shows the broken one and the one from the other side. They have R1658 printed on them

Pivot Shoe - connects to cord sash
Appears to be the following dimensions (no cut out, so will be ordering spreaders). It was hard to get a couple of the measurements:
1 3/4" tall?
1 1/4 wide?
1/2" deep

Photo shows the good one. There is piece that clips into the top (not pushed all the way in in the picture.

Other items lower priority are:

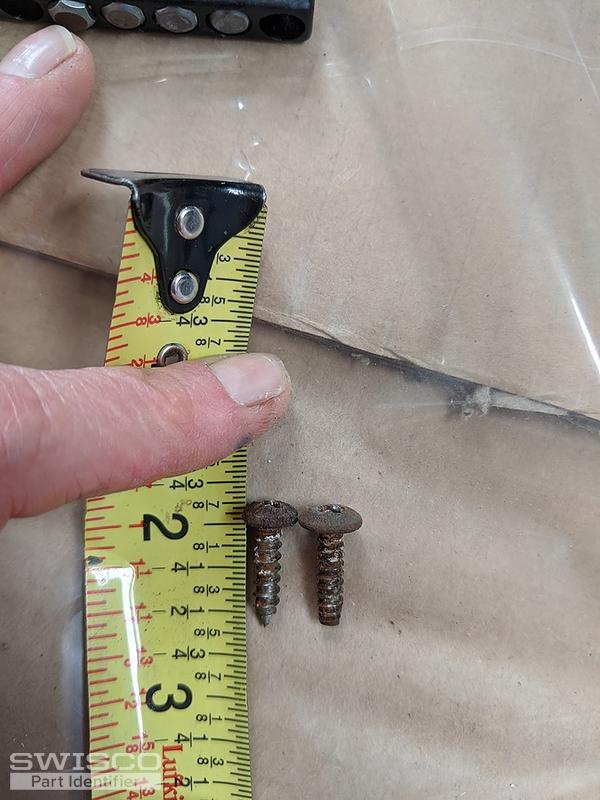

- New screws (photo attached - I can also go to hardware store)
- 29" strip is cracking (photo attached)

Thumbnail of the uploaded file named IMG_20200528_151730.jpg

Thumbnail of the uploaded file named IMG_20200528_151340.jpg

Thumbnail of the uploaded file named IMG_20200528_152146~2.jpg

Thumbnail of the uploaded file named IMG_20200528_151603.jpg

Casey from SWISCO responded:

June 1, 2020

Unfortunately, I couldn't find a match for this pivot bar. We carry two types of Harvey pivot bars: our 26-164 and 26-416, but they're not the same style. Do you think you can use one of those styles as a substitute?

A quick learner from 02045 says:

June 5, 2020

Thank you! I'm going to give the 26-164 a try.

Sash Pivot Set, Harvey

26-164

$11.08

Pivot Bar Set, Harvey

26-416

$8.97
