Pivot Shoe and Spiral Balance Help

A handy person from New Jersey says:
I HAVE 3 WINDOWS SO PLEASE TELL ME WHAT EXACTLY I HAVE TO ORDER.
Thumbnail of the uploaded file named 1.jpg
Thumbnail of the uploaded file named 2.jpg
Thumbnail of the uploaded file named 3.jpg
Thumbnail of the uploaded file named 4.jpg
Profile picture of Bob
Bob from SWISCO responded:

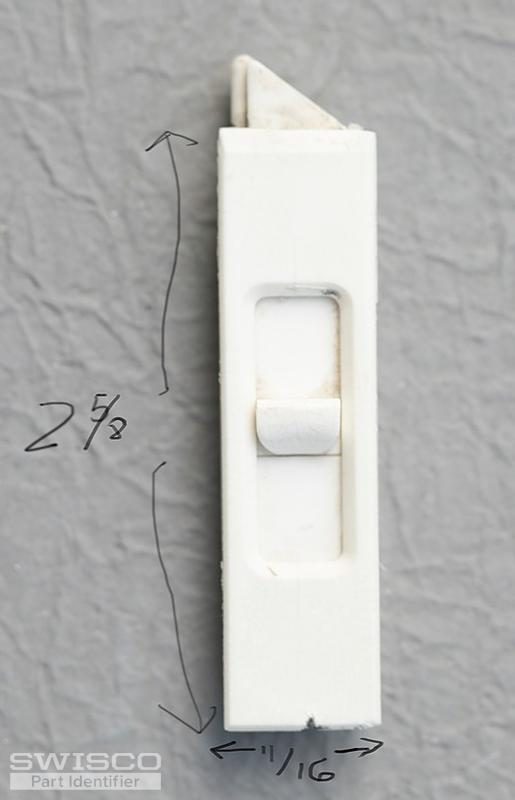

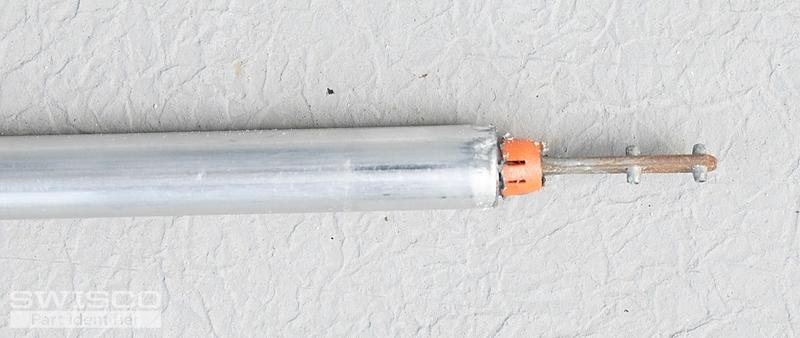

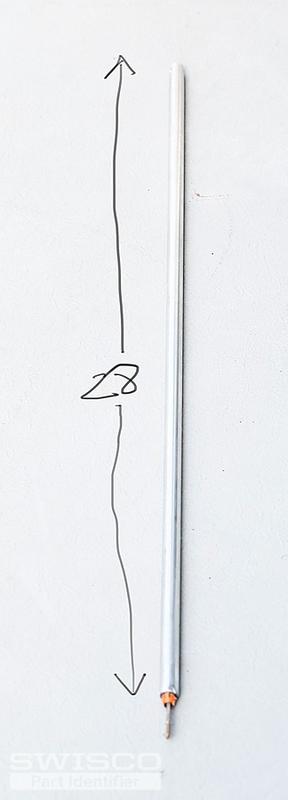

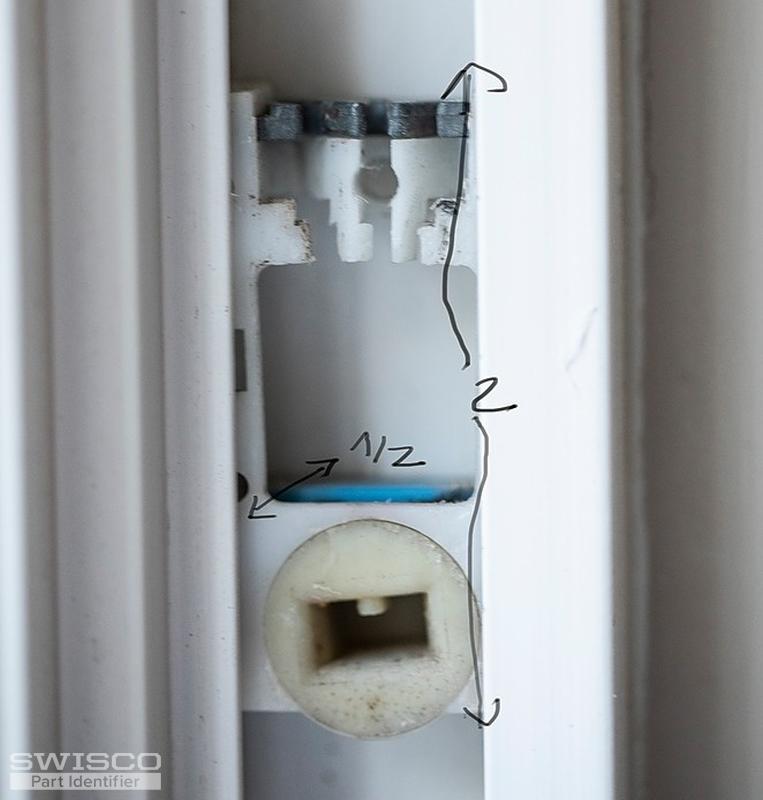

Thanks for writing in. For your tilt latches, start by seeing our 26-243 and 26-244. Go over all the dimensions and see if they match your old tilt latches. For your pivot shoe, it's difficult to say what you need without knowing the width and thickness of the shoe removed from the window; please confirm those dimensions for us if you are uncertain. For your spiral balance, confirm whether you have a 3/8" diameter tube or 5/8" diameter tube. If it's 3/8", you'll need the S900-28 with a red tip; if it's 5.8", see the S600-28 with a red tip. Let us know if you have any other questions.
