Pivot Shoes

Question

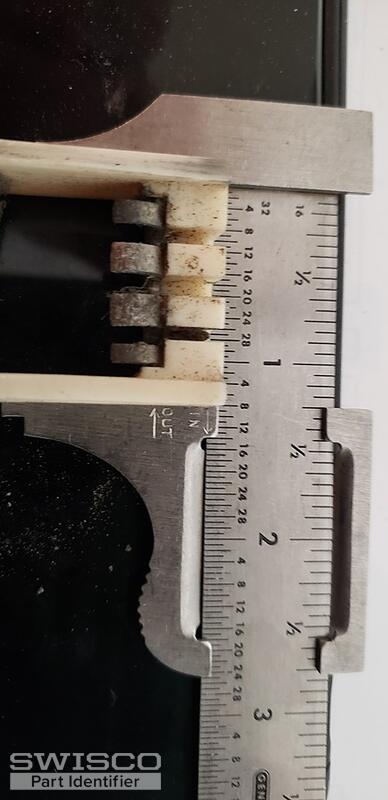

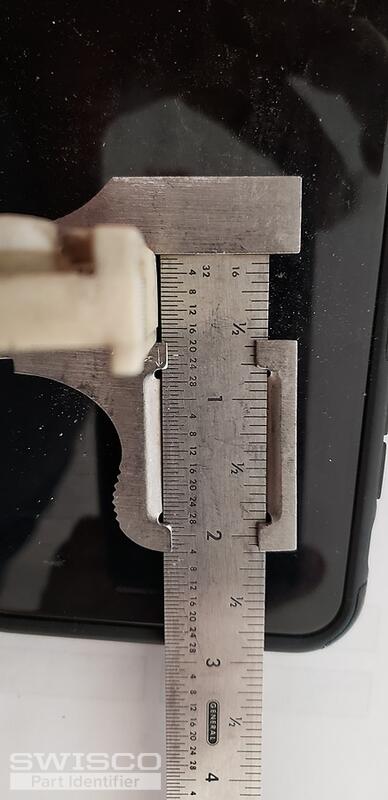

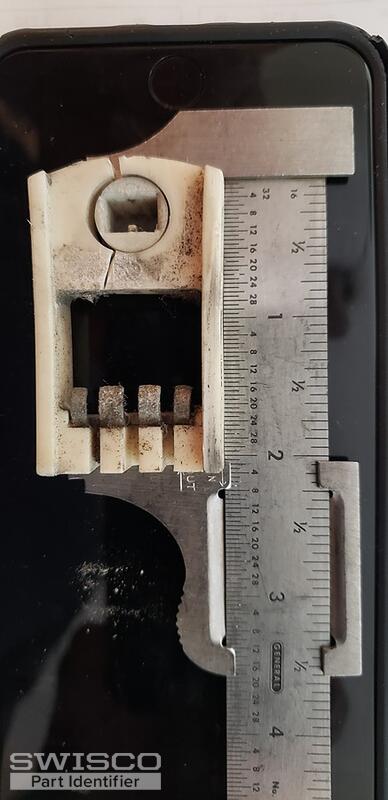

I am hoping you can correctly identify the pivot shoe in the attached photos. I would like to order 10 pieces along with replacement spiral balance and pivot bars.

Thank you in advance for your assistance.

Bob · Accepted Answer

Our 15-118 Pivot Shoe has a width of 1-1/4" and a thickness of 9/16". From what I can see, your shoe's thickness might be 18/32", in which case I think this might be what you need. But please double-check to be sure.

There's loads of different spiral balances and pivot bars that could work with this shoe. For the pivot bars, I need to see an undamaged one out of the window. For the spiral balance, I need the length and diameter of the outer tube, up to and not including the colored tip--I need to see the colored tip as well.
