Pivot shoes and spiral balances jam quite often. WD-40 helped in the short term but now there seems to gummy residue building up.

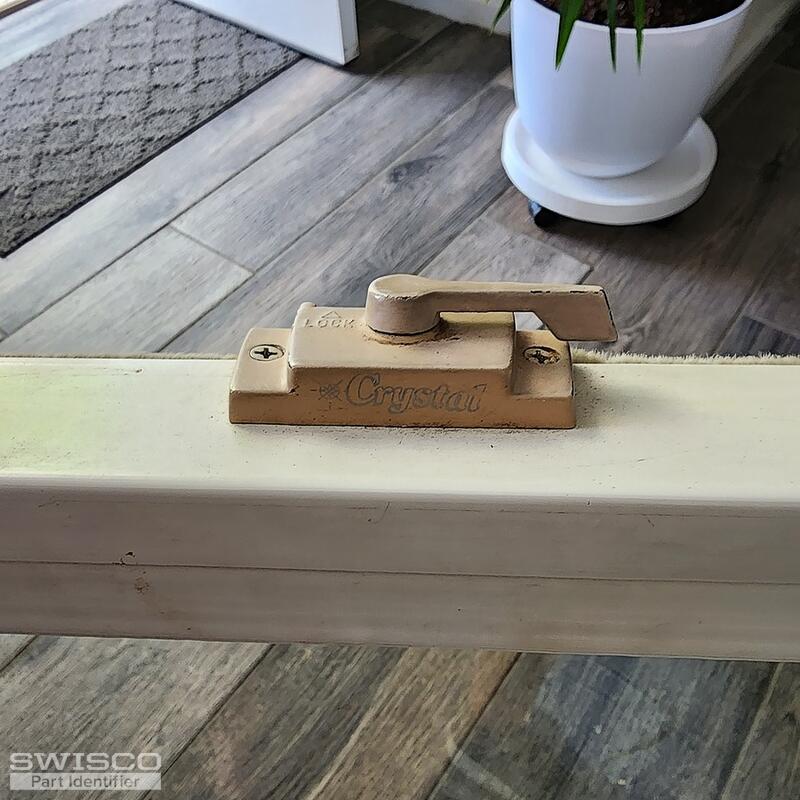

Do you have shoes and balances for these Crystal windows?
Thank you,
Thomas

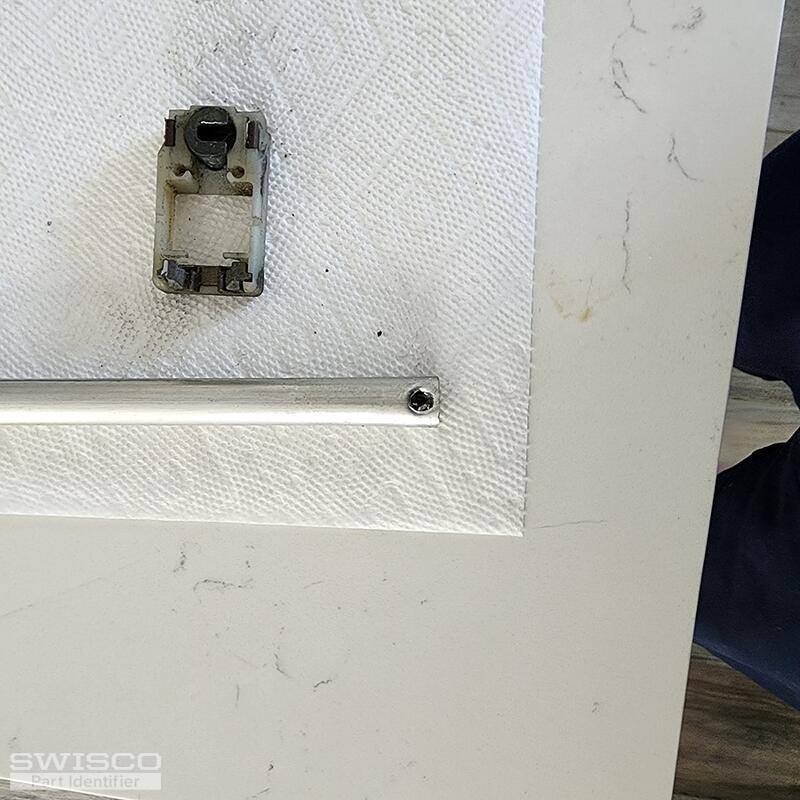

Pivot Shoes and Spiral Balance
Quick Learner from Queens NY
May 28, 2023 10:03 am
4 user uploaded images
4 Replies
Quick Learner from Queens NY
May 28, 2023 11:07 am

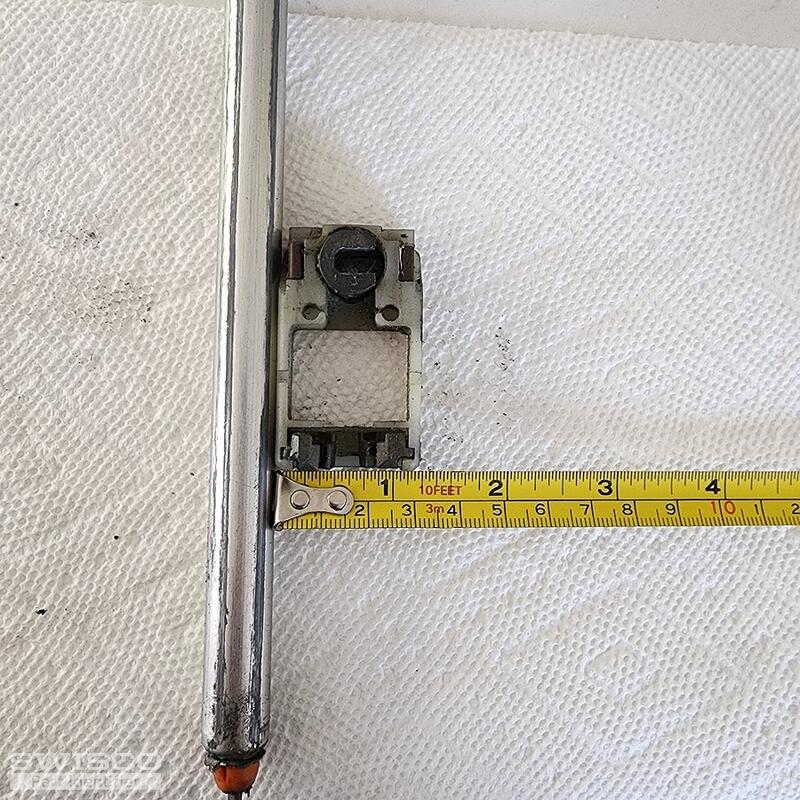

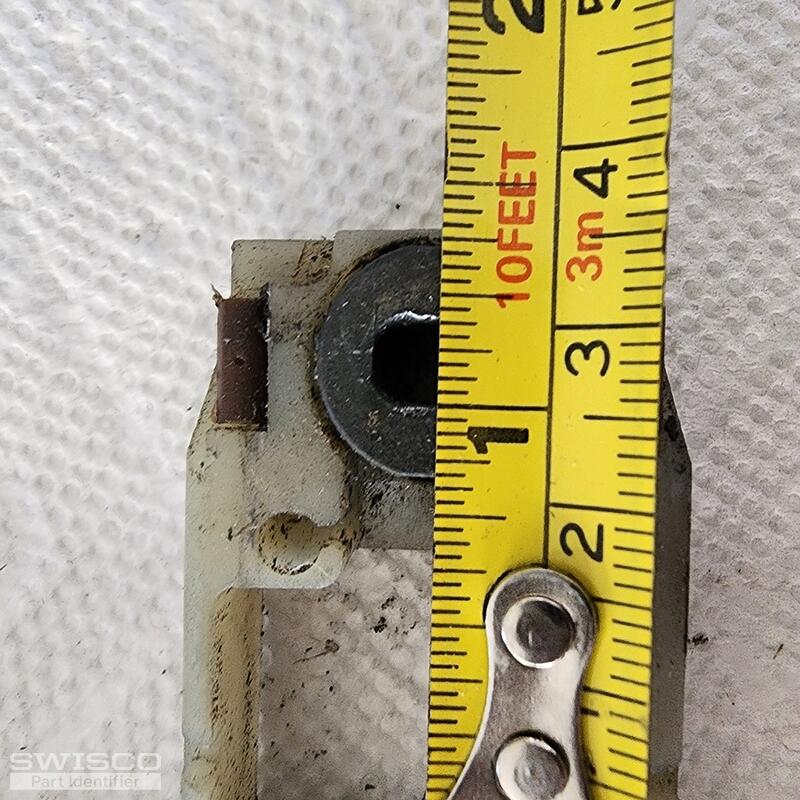

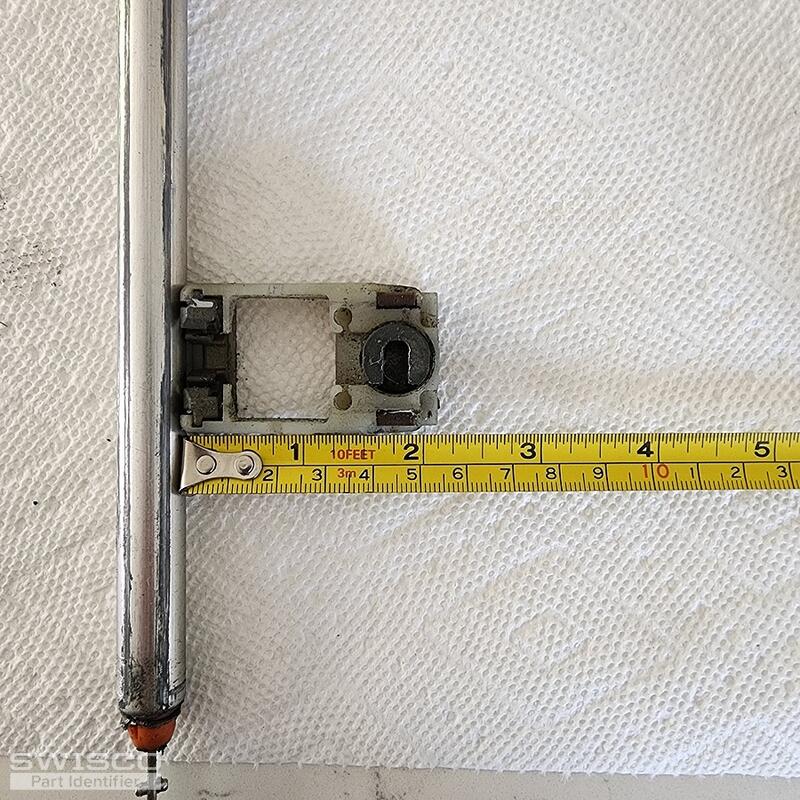

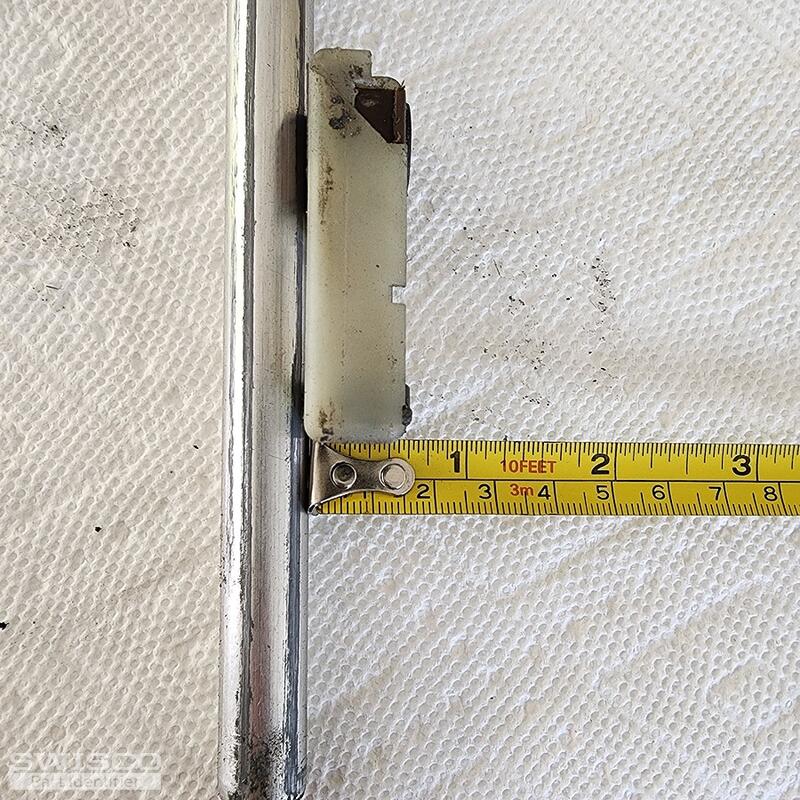

Pivot shoes dimensions
4 user uploaded images
Quick Learner from Queens NY
May 28, 2023 11:08 am

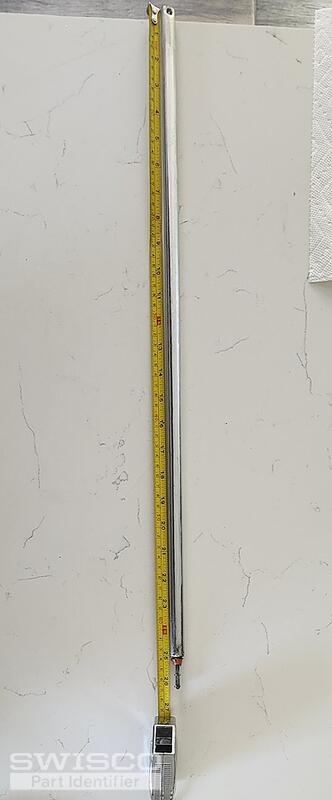

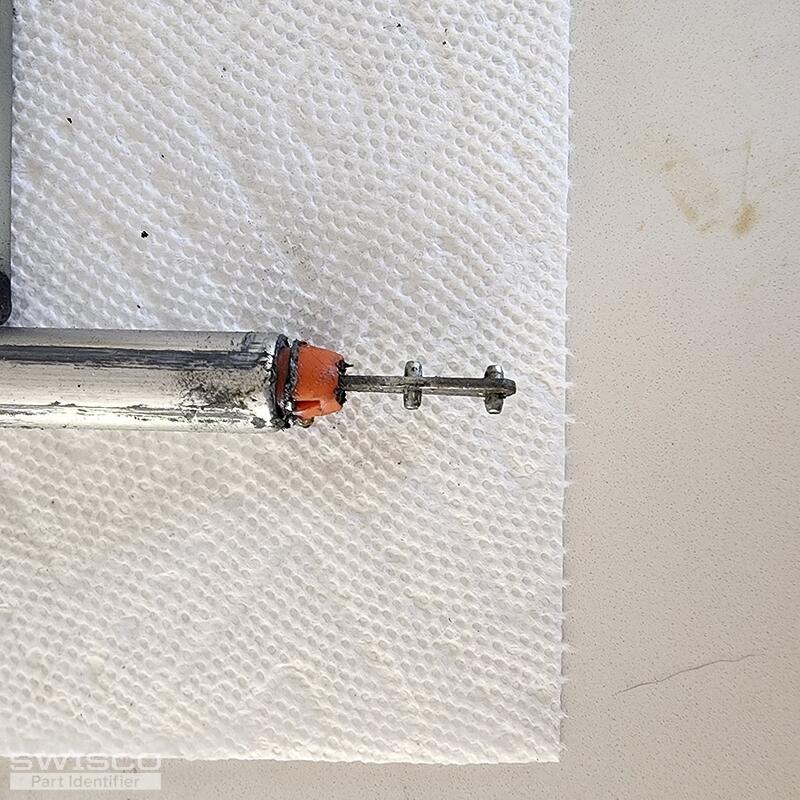

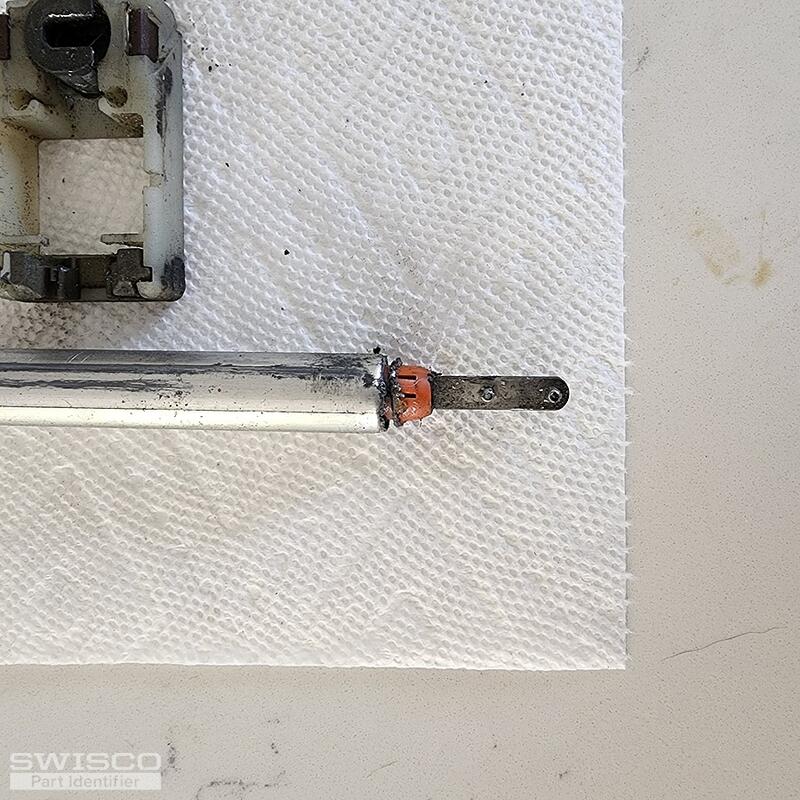

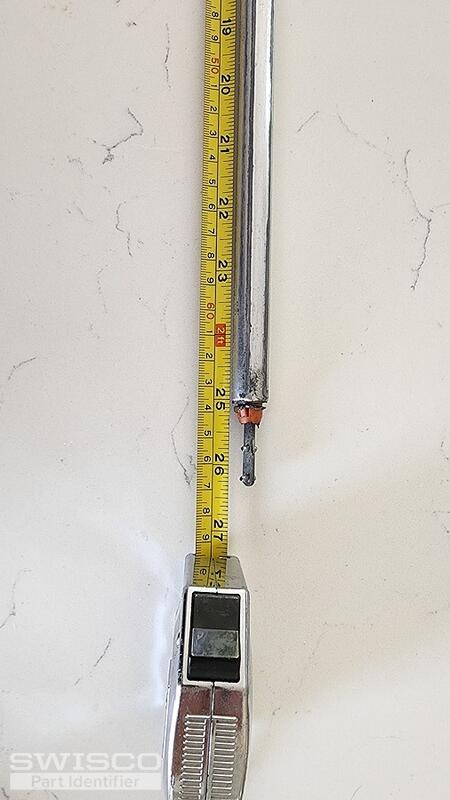

Spiral balance dimensions
5 user uploaded images
Emily from SWISCO
May 31, 2023 1:12 pm
Hi there, Thomas.
It looks like you have a tilt window spiral balance. With that in mind, take a look at our 3/8" diameter Series 900 or 5/8" diameter Series 600. My recommendation for the pivot shoe would be either the 15-178 or 15-188 depending on the dimensions. Look these parts over and let me know if you have any questions.
