Pivot bar

A landlord from Allentown, pa says:
March 19, 2023
This pivot bar is riveted on a window pro's window, I need several. I also need the coil balancers for these windows, the sash weighs 23lb. I'm pretty handy, I'd drill out the rivets and use self drilling screws to attach a new one. These coil balancers are a unit that appears to screw into the main window frame.
Thumbnail of the uploaded file named 20230317_112640.jpg
Thumbnail of the uploaded file named 20230317_112650.jpg
Profile picture of Casey
Casey from SWISCO responded:
March 21, 2023

Hello,

Unfortunately, we do not carry your exact pivot bar but review the dimensions of our 26-407 to see if this might work as a replacement. We can't guarantee that this would work since the end is a different style but it would be our best replacement option at this time.

As for your coil balance assembly, we would need to see photos of the entire assembly, including the pivot shoe that the pivot bar engages with, to compare to our inventory. Thank you!

Alternate image for 26-407
Alternate image for 26-407

Profile view of 26-407
Profile view of 26-407
A landlord from Allentown, pa says:
March 27, 2023

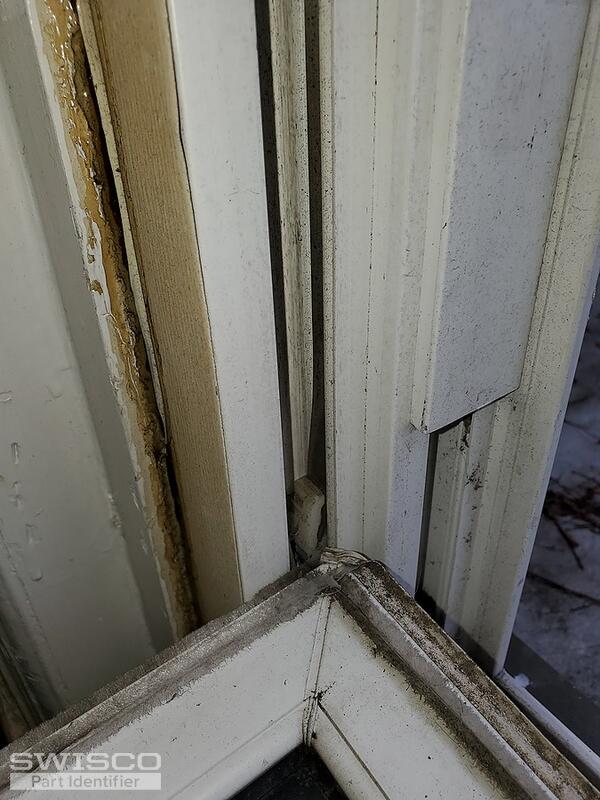

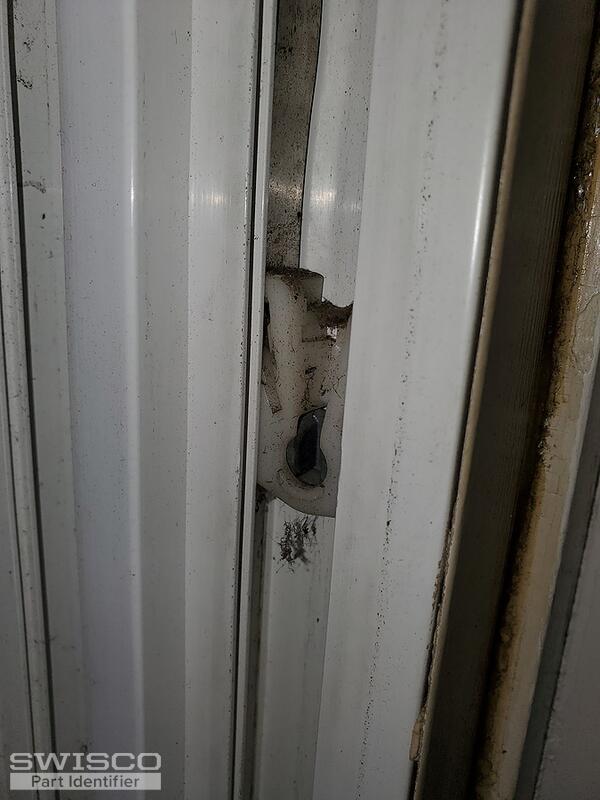

Here are the other pics of the spring balancer I need. 23lb sash weight
Thumbnail of the uploaded file named 20230323_130537.jpg
Thumbnail of the uploaded file named 20230323_130546.jpg
Thumbnail of the uploaded file named 20230323_130551.jpg
Profile picture of Casey
Casey from SWISCO responded:
March 27, 2023

Thanks for getting back to us. I would recommend starting by removing your coil balance assembly from the window to compare to the S140-12, which will support a window sash between 23-24.99 lbs.
