Pivot bar

Question

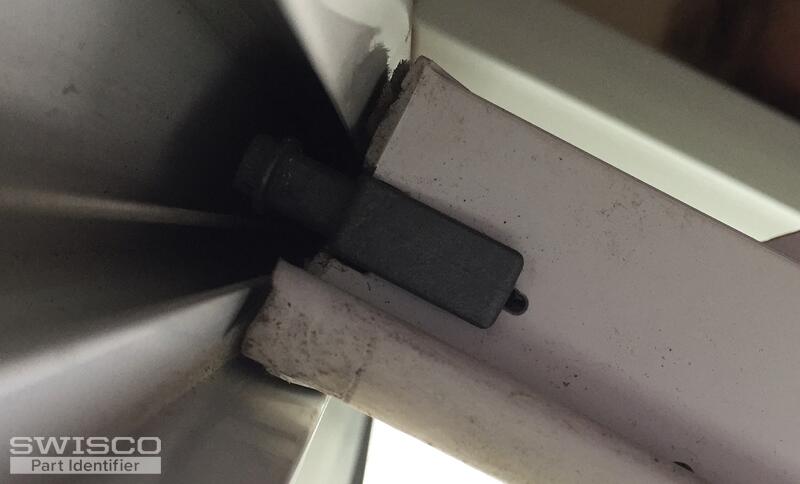

Need to replace this piece. Approximate 1?long 1/4 wide. Windows tilt out from this section & location is bottom of window

Paul · Accepted Answer

Hello, we believe the pivot bar you have is our 26-423. You will need to drill out the two rivets the company used to put your sash together. Then to install the new pivot bar, you'll need to pop rivet the pivot bar to the sash. Let us know if you need any further explanation.
