Pivot bar

A quick learner from Prince Frederick, Maryland says:
April 9, 2022

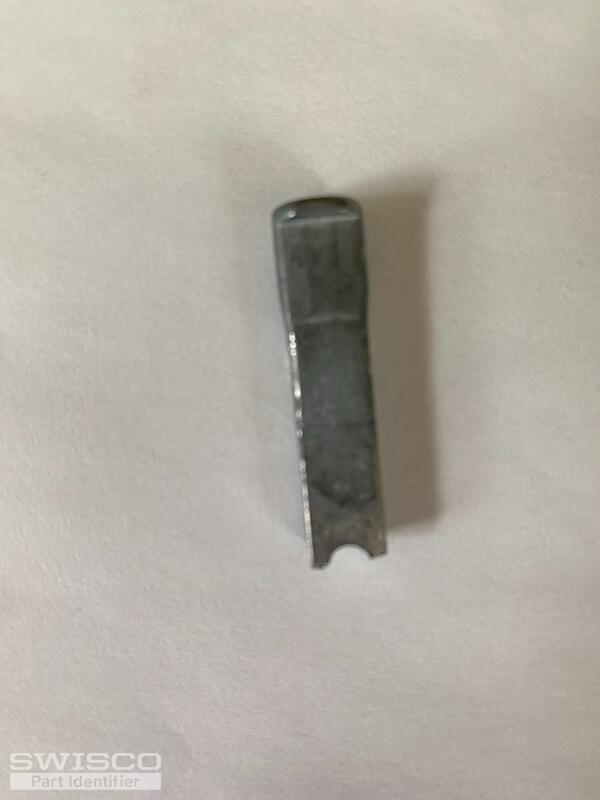

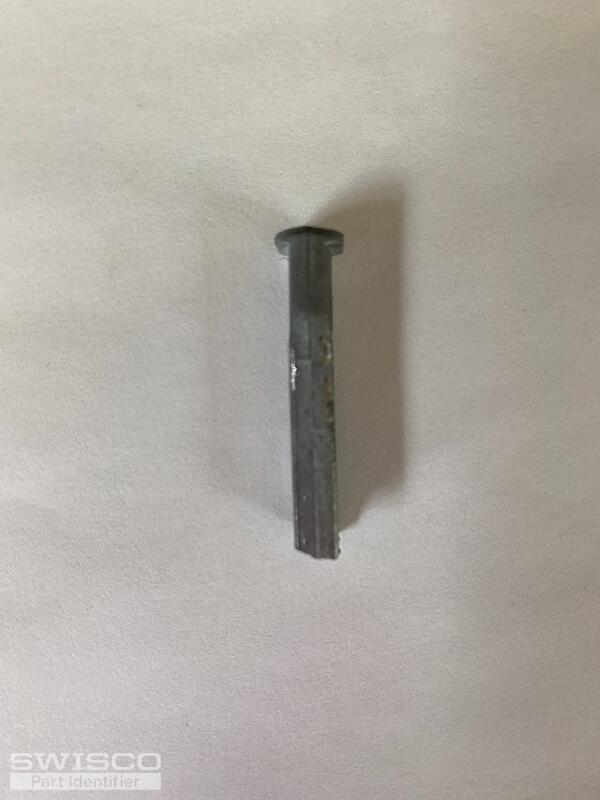

Hinge says H12 on it
Thumbnail of the uploaded file named F6F1C0CB-3BB1-4312-89D8-147E88C1A7B0.jpeg
Thumbnail of the uploaded file named 3A480CCA-21D8-4C15-9D70-5319DE5A0FFC.jpeg
Profile picture of Tom
Tom from SWISCO responded:
April 11, 2022

Your pivot bar looks to be a match for either our 26-398 or 26-405, depending on hole placement. Review the dimensions we show in each case to confirm the best option and let me know if you had any further questions.
A quick learner from Prince Frederick, Maryland says:
April 12, 2022

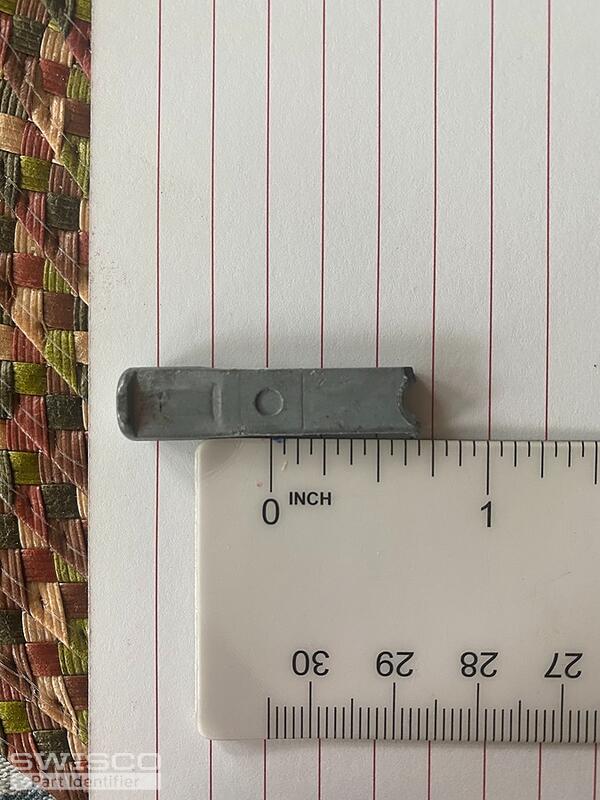

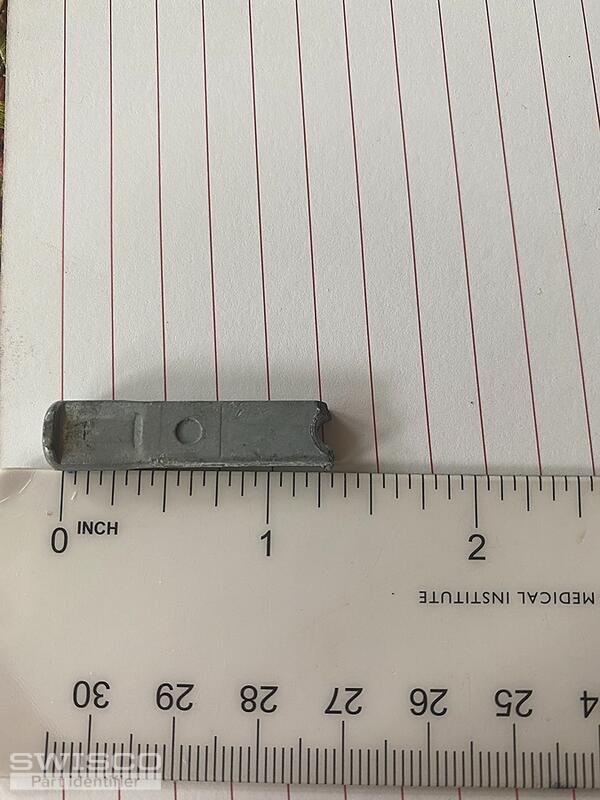

I seem to be in between the sizes suggested
Thumbnail of the uploaded file named 099E748F-8577-465F-8A2E-4B8B2BCAF14D.jpeg
Thumbnail of the uploaded file named 8D8AC6FB-4111-4BF1-B354-7CDFC58FBF8F.jpeg
Profile picture of Tom
Tom from SWISCO responded:
April 12, 2022

That does look to be about 1-3/16". We unfortunately don't sell a pivot bar in this style with that kind of hole spacing.

You may need to rely on the second hole in the pivot bar for installation. I would advise getting an undamaged version to use as a reference, you probably won't get an accurate read out of this broken piece.
Round End Pivot Bar, 2-1/2"
Round End Pivot Bar, 2-1/2"
26-398
$1.70
Rounded End Pivot Bar, 2-7/8"
Rounded End Pivot Bar, 2-7/8"
26-405
$1.72
