Pivot bar

A home owner from Framingham, MA says:

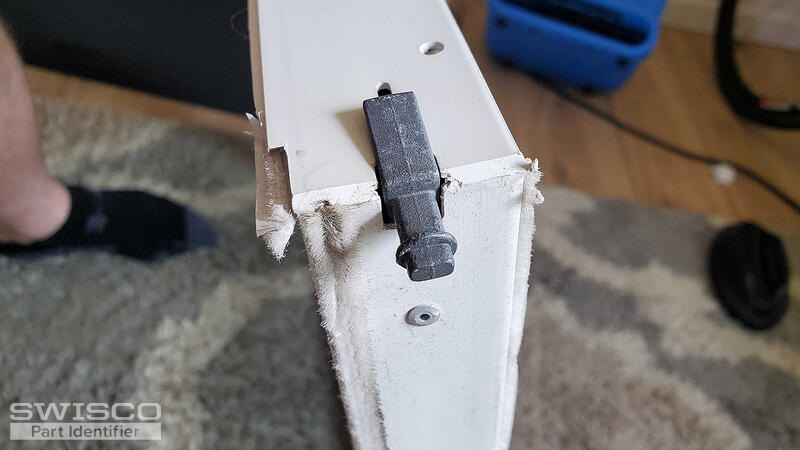

Hello, I am trying to replace this interlocking pivot bar on our "Comfort Plus" windows. It's 1 5/16ths in overall length.
Thumbnail of the uploaded file named 20220520_115403.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for reaching out to us. It's hard to tell exactly what you have while this is still installed, but I think it might be a match for our 26-423 . Look this over and see what you think. I highly recommend removing your original so that you can compare it to our 26-423 in full, that way there is no need to guess.

Alternate image for 26-423
Alternate image for 26-423

A home owner from Framingham, MA says:
Hey Tom, thanks for responding. The original appears to be riveted in. How do you recommend removing rivets without damaging the Vinyl? Additionally, how would I replace it, without the rivets?
Thanks!
Profile picture of Tom
Tom from SWISCO responded:

You would have to drill those rivets out and re-rivet the 26-423 in place. We use the 33-005 pop rivet. We also sell the 75-012 tool, if you don't have one already.

If this is not something you're familiar with or have ever done before, you may want to consider getting a local professional to help. It can be a little tricky if you aren't handy.

A home owner from Framingham, MA says:
Thanks Tom, I'm fairly handy, and hoping to avoid replacing what are otherwise good sashes. I see P# 26-423 is OOS at the moment, so I'll have to wait until it's restocked.
