Pivot bar

A quick learner from New Jersey says:
March 9, 2017
What do you suggest to replace pivot bar in picture
2-1/2 "long 5/16 wide and 3/8 wide at wide end
Your 26-021 matches all measurements pretty good but
The bulge on end I worry about. The slides out of unit'
Thanks Jack

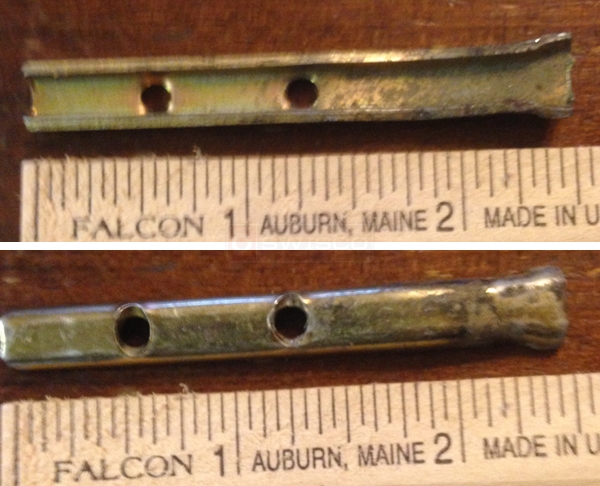

User submitted photos of a pivot bar.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
March 16, 2017
I recognize this pivot bar. I'm afraid this style isn't as popular as it once was. Manufacturers have changed over to a die cast pin like the 26-021 or the 26-360. This type pin takes a pivot shoe with an open cam like the 15-136. Take a look at both of these, I think one of them could be worth considering.
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-021
$1.97
Tilt Sash Pivot Bar, 2-1/2"
Tilt Sash Pivot Bar, 2-1/2"
26-360
$1.97
Pivot Locking Shoe, 1/2" Thick
Pivot Locking Shoe, 1/2" Thick
15-135
$2.57
#6 x 3/8 SS Pan Head Screw
#6 x 3/8 SS Pan Head Screw
33-071
$0.21
