Pivot bar has broke on tilt window

Quick Learner from Huntsville AL

Jul 3, 2019 12:38 am

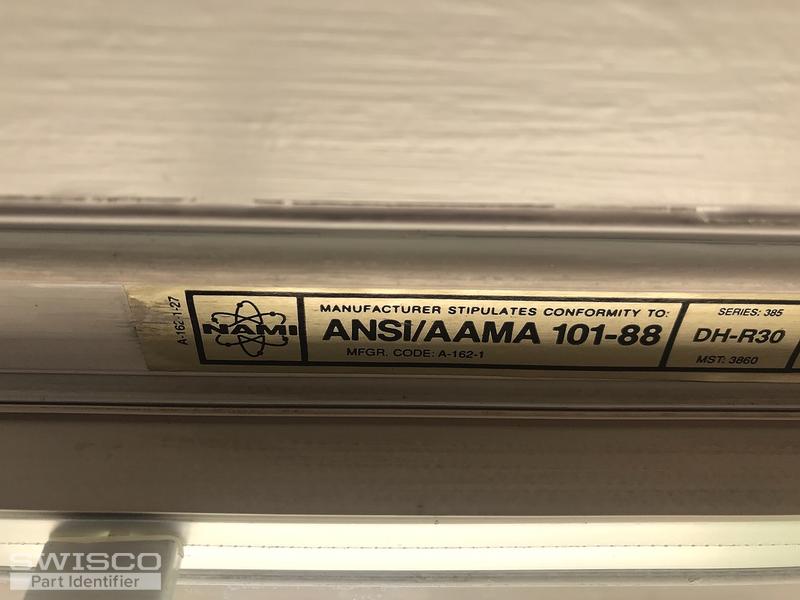

Window is NAMI code A-162-1 series 385 DH-R30 MST 3860. I need a pivot bar I have the screw and case. Which one would I buy?

5 Replies

Bob from SWISCO

Jul 9, 2019 7:28 am

Thanks for writing in, and thanks for your patience during this busy season. I'm afraid I can't narrow down what pivot bar you need based on this information alone. Can you show us a picture of your old pivot bar out of the window, preferably undamaged? Dimensions, particularly the distance between the center of the mounting holes and the tip that fits into the pivot shoe, would also be helpful. From there, we'll narrow down what you need. Many thanks.

Quick Learner from Huntsville AL

Jul 10, 2019 12:15 pm

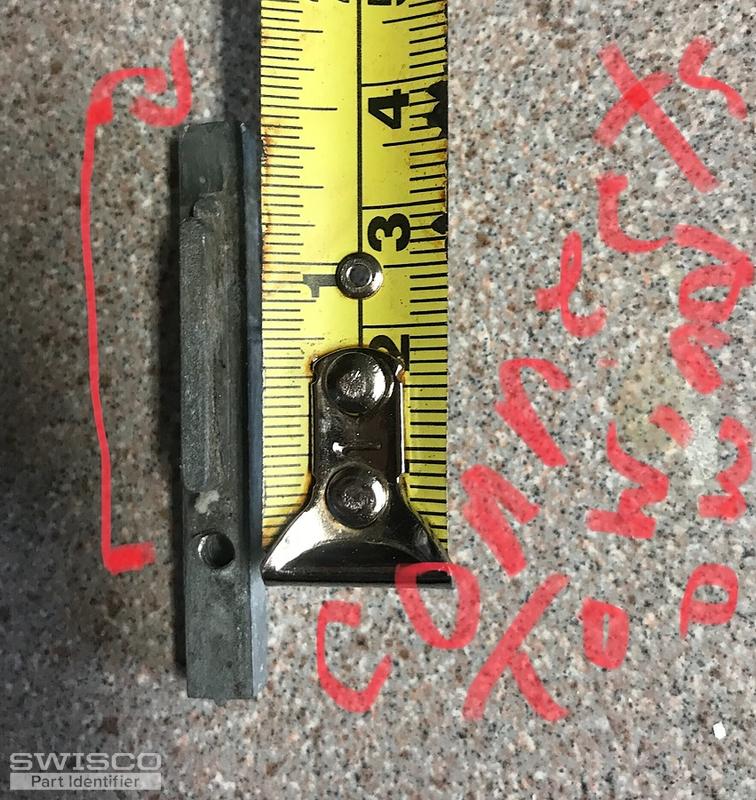

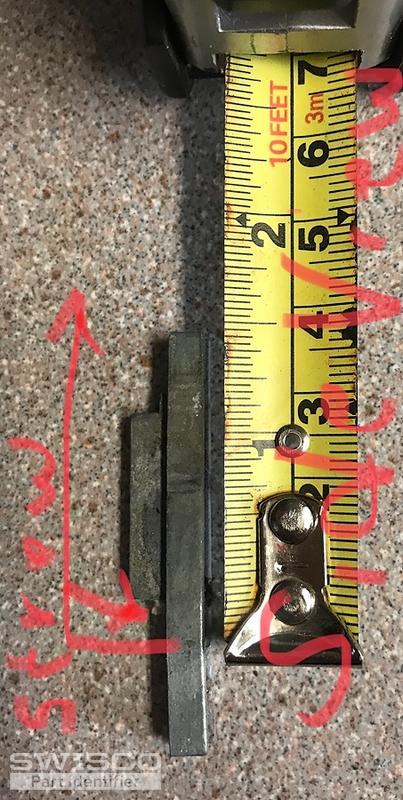

Ok I need the screw also . Pics attached I also need the latches . I want 2 bars with screws. Plus 4 white to top locks I could not upload I will in another post . Hope this helps?

5 user uploaded images

Quick Learner from Huntsville AL

Jul 10, 2019 12:20 pm

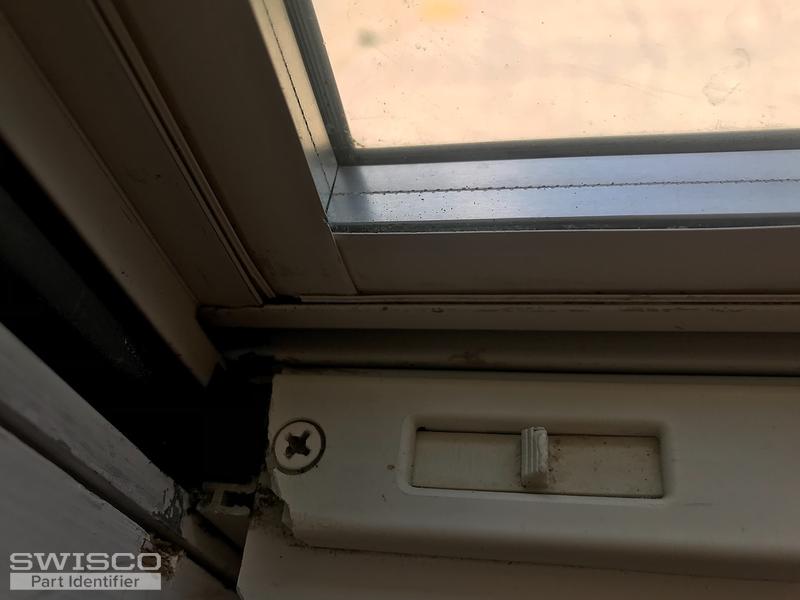

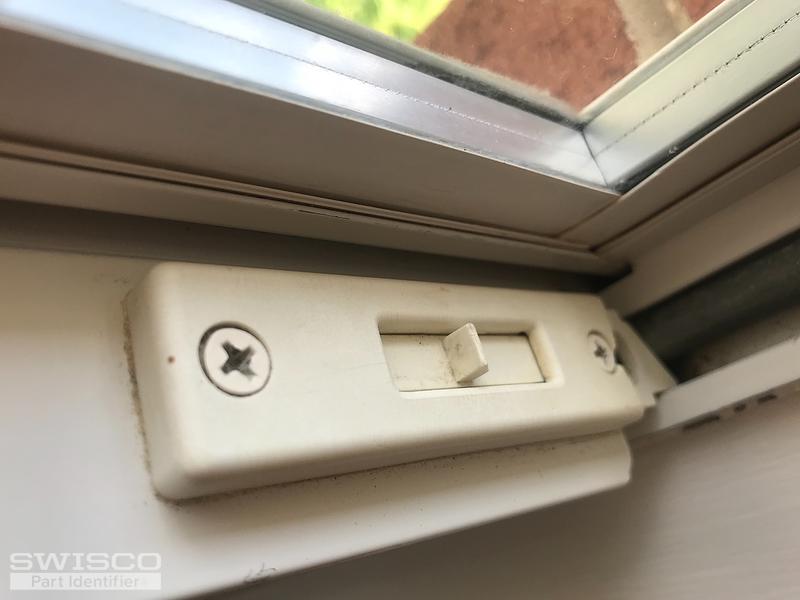

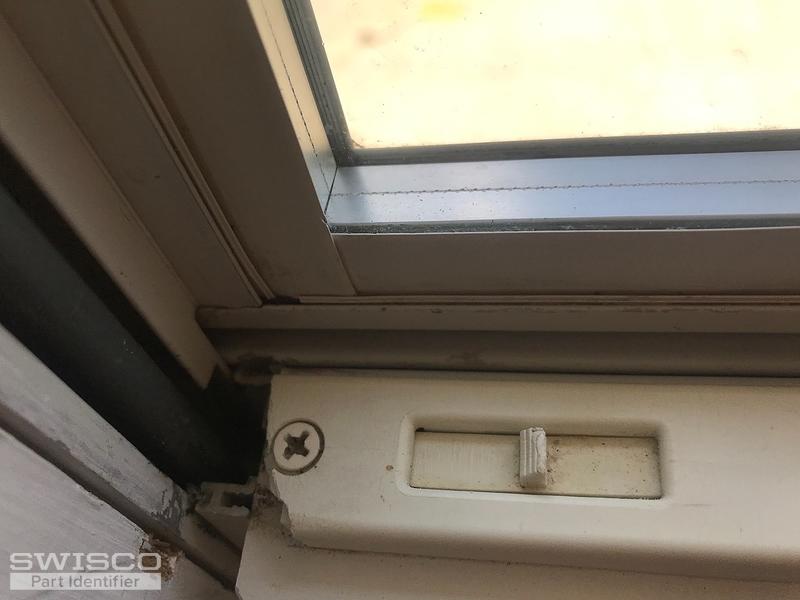

I also need these latches, about 4 should do thanks

4 user uploaded images

Bob from SWISCO

Jul 10, 2019 2:31 pm

Thanks for getting back to me. For your pivot bar, start by reviewing our 26-041. Go over the dimensions and see if this could work for you. For your tilt latches, start by looking at either our 26-337 or 26-344. See if either set matches what you require.
