Pivot bar identification

Start a new Discussion

Quick Learner from United States

Apr 4, 2018 12:37 pm

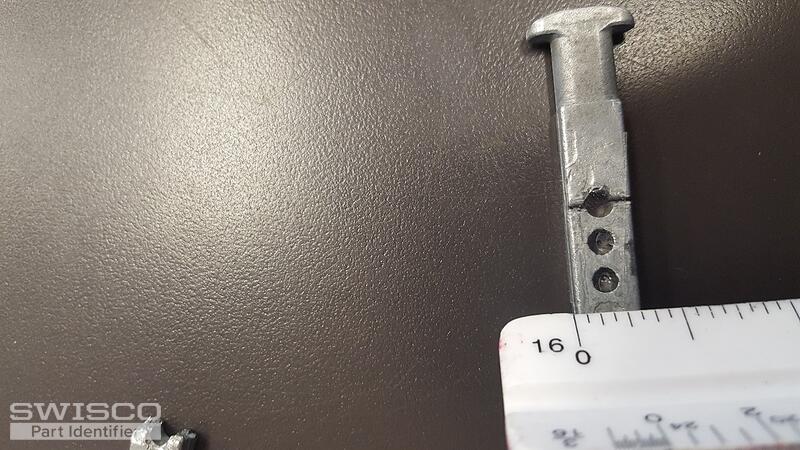

Can you identify these photos
it is pivot bar with screw
I am looking for 2 dozen

Sincerely,
Michelle

2 user uploaded images

4 Replies

Paul from SWISCO

Apr 5, 2018 3:54 pm

Hello there, Michelle. We in fact do offer a pivot bar with a one horn tip, our 26-454. Its mounting screw hole measurements are 1" and 2". The one horn tip should fit right into your pivot shoe. Please review the part further for additional details.

Professional from Lewiston, Maine

Apr 6, 2018 10:27 am

The dimensions seem to all match up.
-What is the downfall of not having the double horn tip vs the single horn tip?
-Also do you off a screw that matches the one in the photo?

Paul from SWISCO

Apr 9, 2018 1:59 pm

I don't think there is any downside to using a pivot bar with just one horn. Once the pivot bar is in the cam, they both function pretty much the same. The double horn might hold it in there a little better but I've personally never noticed a significant difference.

You can use our 33-074 self-tapping screw to install the 26-454 pivot bar.
