Pivot bar identification

Handy Person from Florida
Mar 22, 2024 3:44 am
Hello Ive got a customer that had windows replaced and has a couple pivot bars broken . I have been trying to find part number but no luck

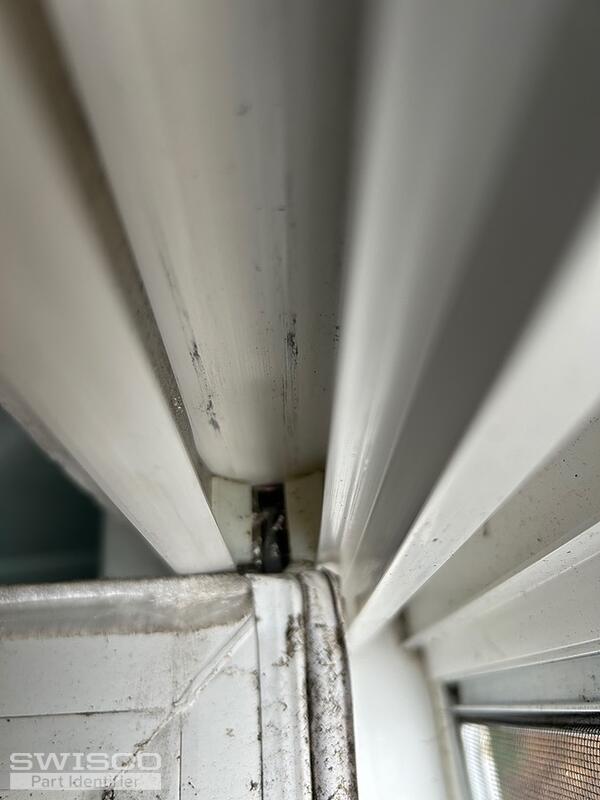

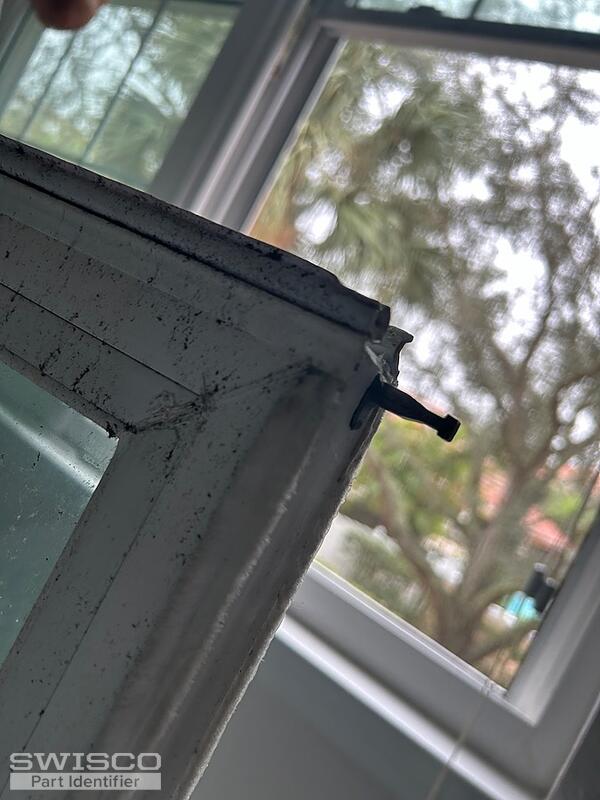

IMG_1533 IMG_1529
2 user uploaded images
1 Replies
Lauren
Lauren from SWISCO
Mar 25, 2024 10:59 am
SWISCO
EXPERT

Hello, thank you for posting,

It appears that you have a Simonton pivot bar. Unfortunately, Simonton discontinued your original pivot bar, but it was replaced by the 26-336. With that being said, it may take some handiwork such as grinding down the "collar" on the front tip so that it's a little more flat like your original part. We've found this to be a reasonable solution in most cases but it's not ideal. It's also important to note that any product altered in this way can no longer be returned for a refund. Review the specifications below and see what you think.

Alternate image for 26-336
Alternate image for 26-336
