Pivot bar replacement

A quick learner from United States says:
June 17, 2019

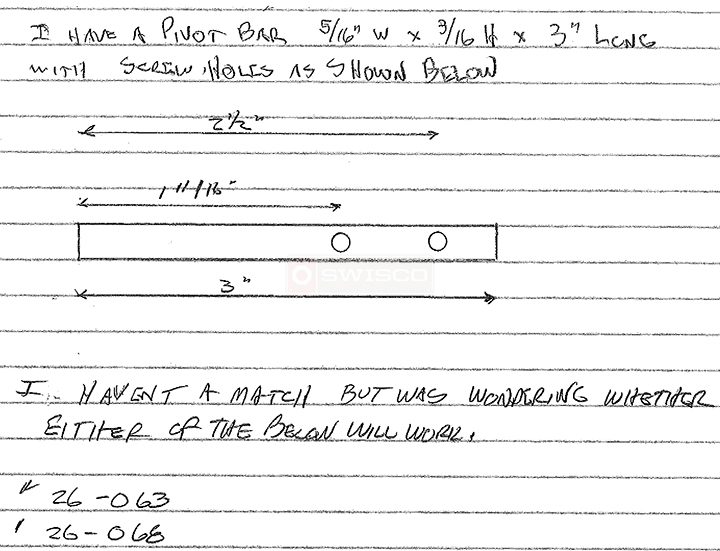

Looking to replace the pivot bar shown in the diagram

User submitted a diagram of a pivot bar.
Profile picture of Tom
Tom from SWISCO responded:
June 20, 2019

I'm afraid that I couldn't find anything with the kind of hole spacing your pivot bar has. 1-11/16" and 2-1/16" are somewhat uncommon dimensions. The two you picked out, our 26-063 and 26-068, are potential matches since they have elongated holes, but nothing quite falls into the specifications you gave us here.

In a worst case scenario, you may be able to drill a new hole into the pivot bar to fit whatever is in your sash. I've done this before in a pinch. It's not ideal, but it's something to keep in mind.
3" Pivot Bar, Keller
3" Pivot Bar, Keller
26-063
$1.74
Pivot Bar, 3"
Pivot Bar, 3"
26-068
$1.52
