Pivot bar with vertical tower

A contractor from Wisconsin says:
Can you help me find this pivot bar.

I thought the 26-316 looked like a candidate.
But it looks like the shoulder and head are a little shorter. The total length was a couple of eighths shorter also.

Any other suggestions?

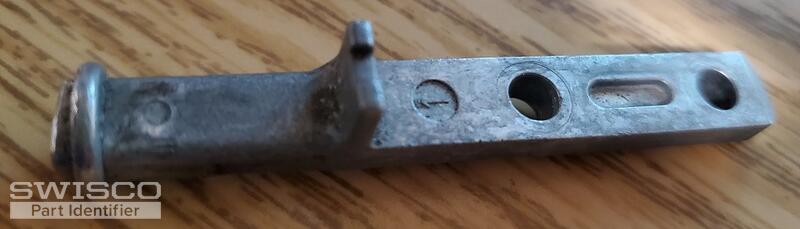

Thumbnail of the uploaded file named Chuck Dale 2.jpg
Thumbnail of the uploaded file named Chuck Dale 4.jpg
Profile picture of Tom
Tom from SWISCO responded:

Your pivot bar is a bit of a weird one. We unfortunately don't sell anything with a vertical piece shaped like what you have here. Can you tell me exactly how necessary that piece is? Maybe we can just kinda ignore it. That's what I'm hoping anyway, but let me know if that won't be possible.

Can you also tell me the distance between the center of the first screw hole and the front tip? That will help me find something that will work without having to drill new holes.
