Pivot bar and housing?

A quick learner from Sw ohio says:
Hi, I dont know what kind of windows I have. I am looking for hardware for them. The spiral balance is 5/8 x 16" long, red cap. The pivot shoe is 2 1/8 high by 1-1/4 wide by 9/16 deep, with the hole for pivot bar 7/16 x 1/4 inch. The pivot bar is 2-5/8 long with the screw hole 1-9/16 from outside end, and is 3/16 high by 5/16 wide. The pivot bar housing is oval shaped on the end, it's 2-5/8 long and the hole for the bar is 5/16 x 1/4 inch. Do you have these parts or something that would work? A stainless steel pivot bar if possible. Thank you
Thumbnail of the uploaded file named IMG_1492.JPG
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for posting. Look at our S600-16 Spiral Balance; see if this matches up. For the pivot shoe, confirm the dimensions match our 15-118 . Finally, for the pivot bar, can you show me an undamaged version with the housing? I'll do my best to assist from there.

A quick learner from Harrison ohio says:

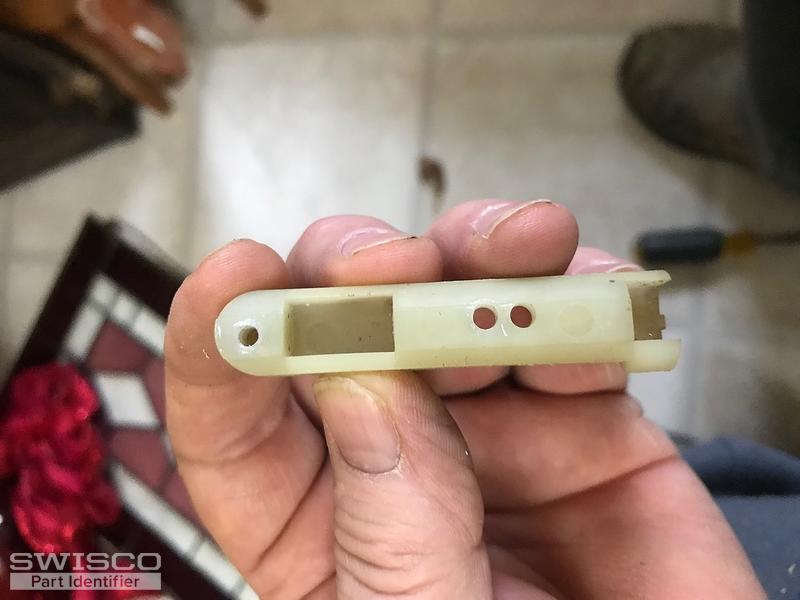

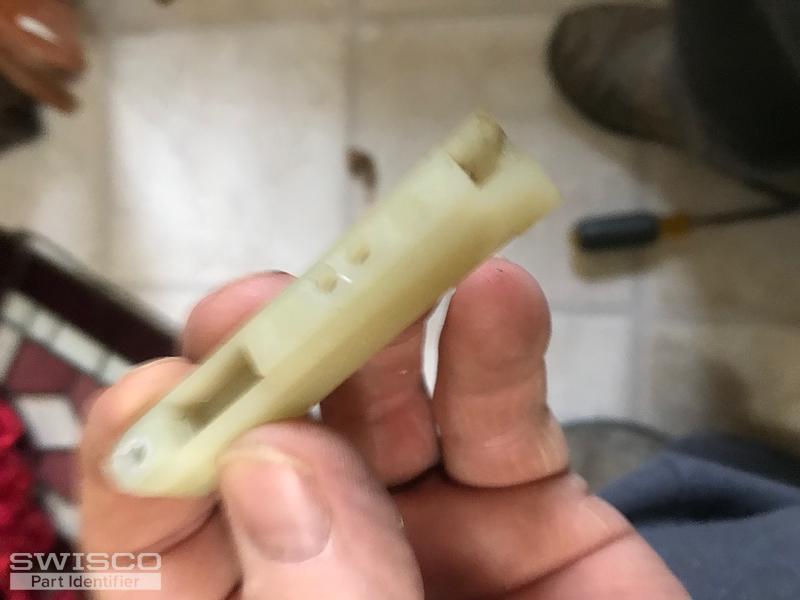

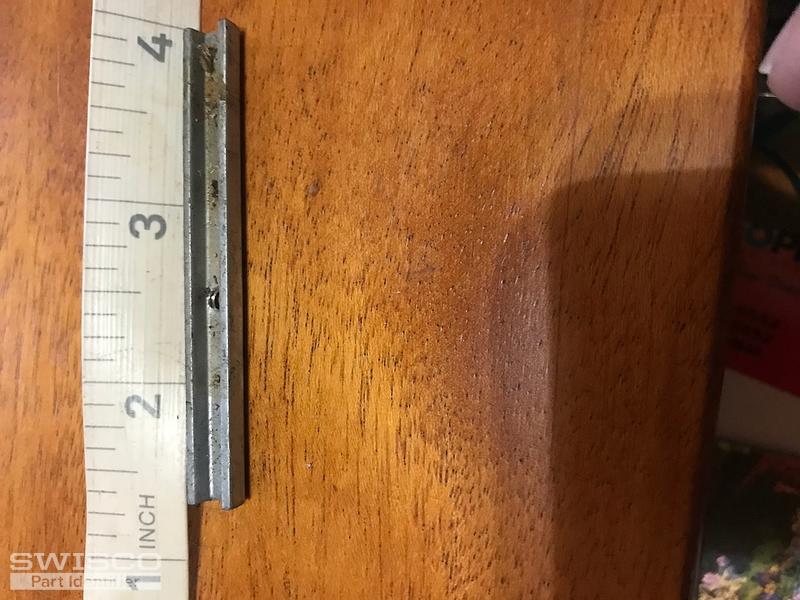

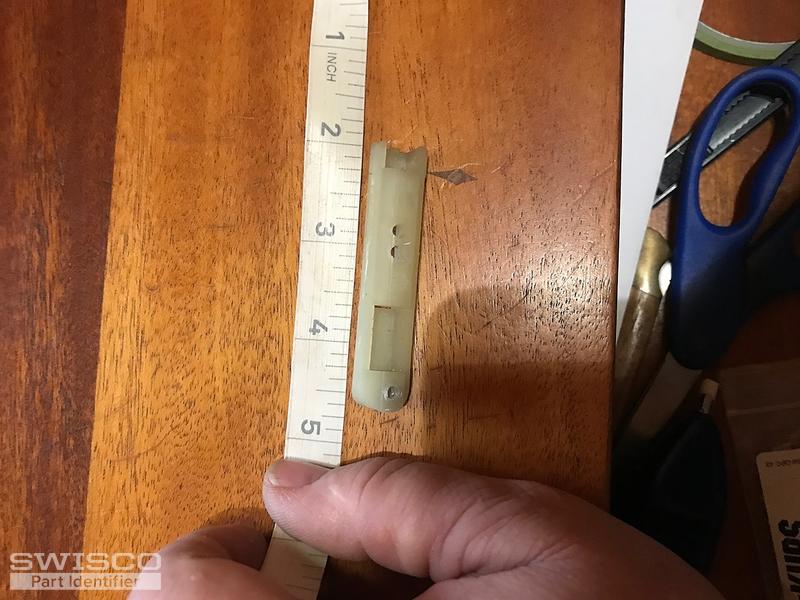

Here's some pics of a good housing and the pivot bar also. I could probably still use the old housings if I can get the screws out without damaging them even more. But hopefully I can get some new ones
Thumbnail of the uploaded file named 954AF00E-5855-48C4-A1FC-01E33E544DD5.jpeg
Thumbnail of the uploaded file named E0420138-04FC-4DC0-98CF-E0536D306DE1.jpeg
Thumbnail of the uploaded file named 50848D69-694F-4D8D-BCBE-0F8B560121EE.jpeg
Thumbnail of the uploaded file named 7C840625-77BE-4F3B-969C-D05A05ED3493.jpeg
Thumbnail of the uploaded file named 0D6B1F98-FDAD-43AA-B4EB-C84D8A4FC8D5.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Thanks for these follow up pictures! For the housing, see our 26-236 and 26-237 . In regards to the pivot bar itself, take a look at our 26-083 . Let us know if you have any further questions, and best of luck with your repair!
