Pivot bar and latch

A quick learner from Usa says:
I am looking for a replacement part for a window that I cannot find any make or model on. Please see attached photos and let me know if you can advise on the replacement parts. If more photos are needed please let me know.

One Swisco rep thought the latch 26-442 seems like the right size. Mine only has one line protruding from the outer sides. I saw some have like a + sign below the line and that does not allow it to enter the slot correctly. just confirming this one does not have that.

With regard to the bar. I did not remove the one I have in the window, as I did not want to break the good one. that is why I took the measurements. I thought with the pictures, it would be easier for you to identify.
It is an inch and 1/4 from the bar to the center of the first screw. it seems to be two inches right after the 2nd screw from the end of the bar. I don't think that it is much longer.

I thought with the pictures, it would be easier for you to identify.

Looking forward to your response.
Thumbnail of the uploaded file named Michael Halber 2.jpg
Thumbnail of the uploaded file named Michael Halber holes.jpg
Thumbnail of the uploaded file named Michael Halber 4A.jpg

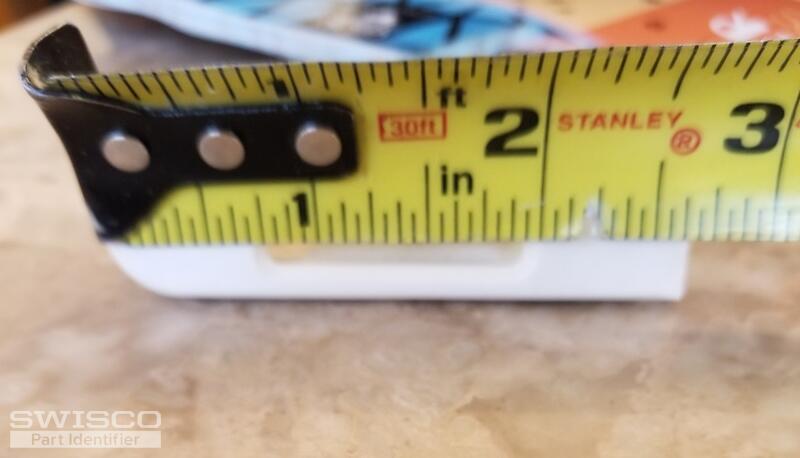

Thumbnail of the uploaded file named Michael Halber 5.jpg
Profile picture of Emily
Emily from SWISCO responded:

Your current latch is too damaged for us to identify but the 26-442 looks like it might be what you currently have. To be certain, we'd need to see an undamaged version.

We can't make an identification without seeing an undamaged pivot bar fully removed from your window, there's simply too many options and we'll need to narrow it down. For now, check out our 26-405 and 26-398, just keep in mind that this is simply an educated guess.


A quick learner from Usa says:
Thank you for your time.
The pivot bar worked. I attached another few pics of the latch. The one I got is not staying inside slips out.

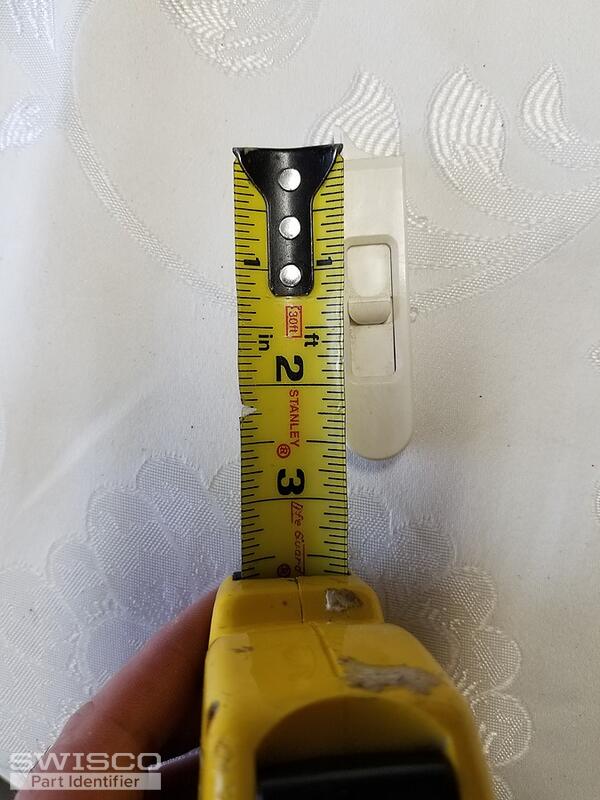

Thumbnail of the uploaded file named 20210418_144818.jpg

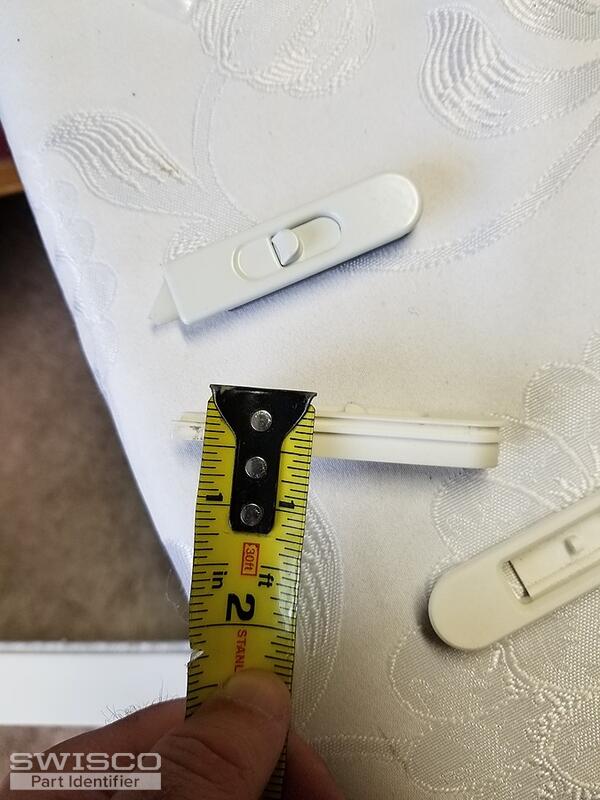

Thumbnail of the uploaded file named 20210418_144744.jpg

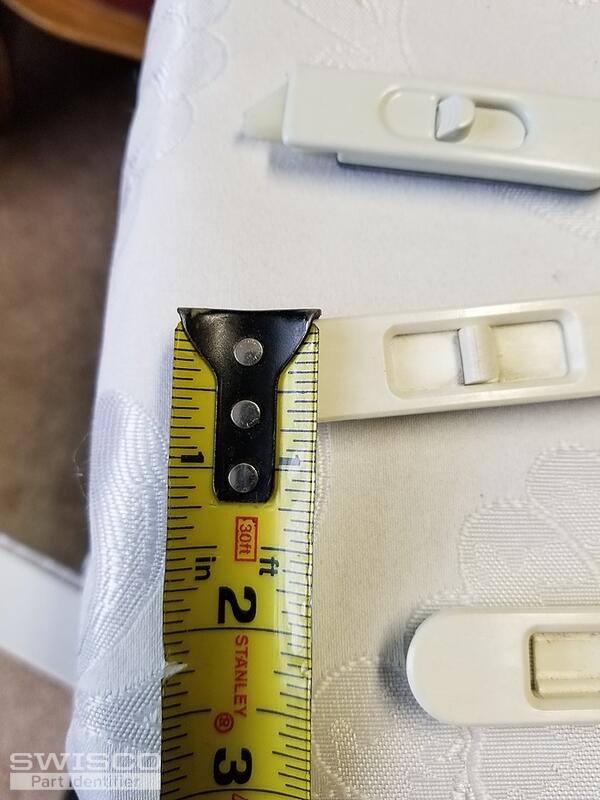

Thumbnail of the uploaded file named 20210418_144721.jpg
Profile picture of Emily
Emily from SWISCO responded:

It looks like you have our 26-243 and 26-244 tilt latch. Compare our dimensions to yours and see if they match up.

A quick learner from Usa says:
Thank you.
That does look like it.
