Pivot bar/pin missing

Question

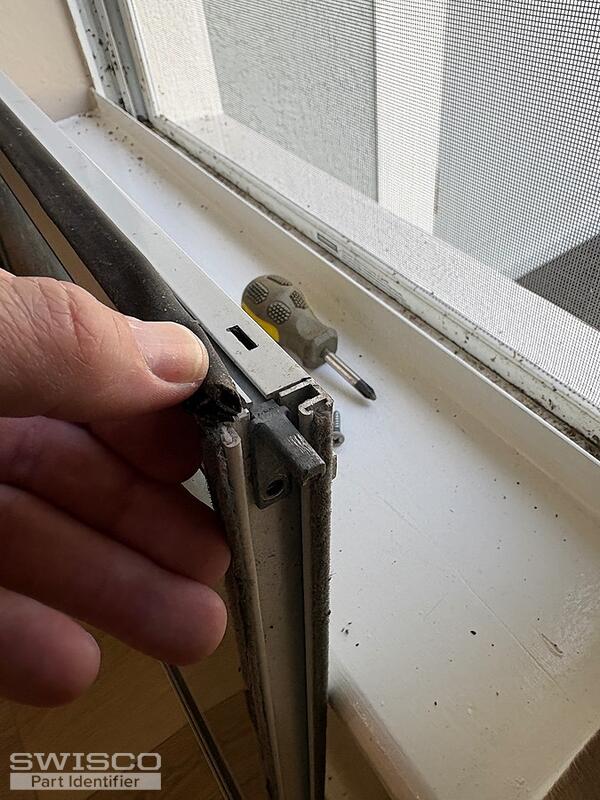

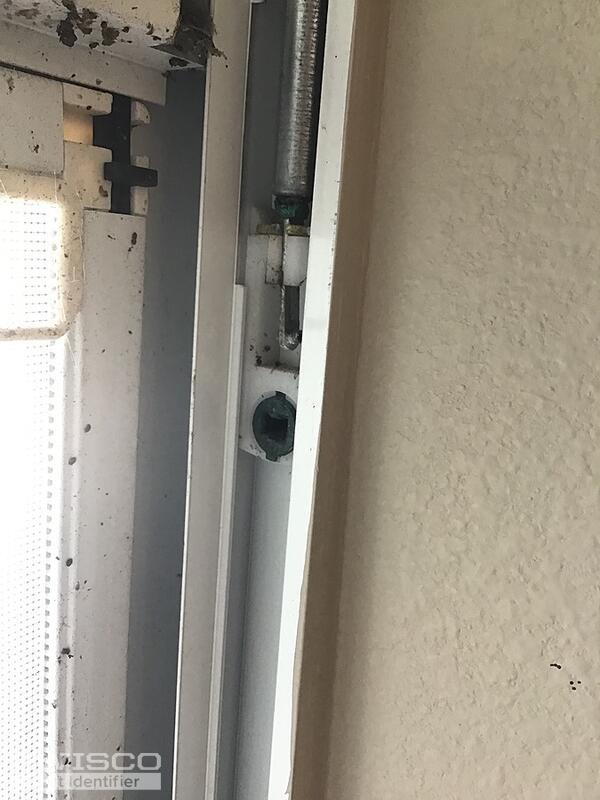

Hello, I have a window (unknow manufacturer) that is missing a pivot pin on one side.  I have uploaded pictures.  The spiral balance is green. I've added a picture of the shoe which is green as well. I did not see anything that matched.  Can you please advise me?  Thank you..

Paul · Accepted Answer

Hello,

We don't carry an exact match for your pivot bar, but you may be able to use the 26-326 as a replacement. It doesn't have the same long back leg, but it has two screw holes to attach to the side of the sash. Another option would be the 26-297 pivot bar and attach it to the bottom of the sash channel with two 33-096 screws. Either pivot bar will fit in the pivot shoe cam shown in your photos. Review the specifications below and see what you think. Thanks for posting!

Alternate image for 26-326

Alternate image for 26-297
