Pivot bars broken on my AK in 550 double hung windows

A quick learner from Silver Creek ny says:
June 27, 2019
Once again, I have broken the pivot bars on my AK in 550 double hung windows. As my local distributor has gone out of business, I should probably get several of these to have on hand as I seem to break at least one every year when cleaning the windows. Would you have a replacement item?
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named 7AAE0A14-1B11-4FD2-A052-5767AD5240C4.jpeg
Thumbnail of the uploaded file named 1502E252-4C3A-4A47-A295-BA921D34FB57.jpeg
Profile picture of Tom
Tom from SWISCO responded:
July 2, 2019

Thanks for contacting us. This looks a lot like our 26-241. I recommend going over our dimensions just to be sure that everything matches up. I have a good feeling that they will.

Alternate image for 26-241
Alternate image for 26-241
A quick learner from Silver Creek ny says:
July 7, 2019

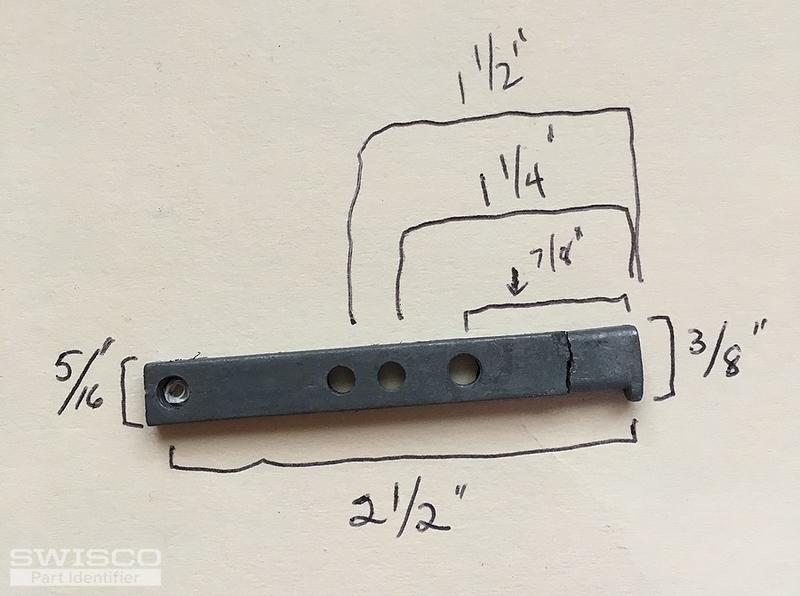

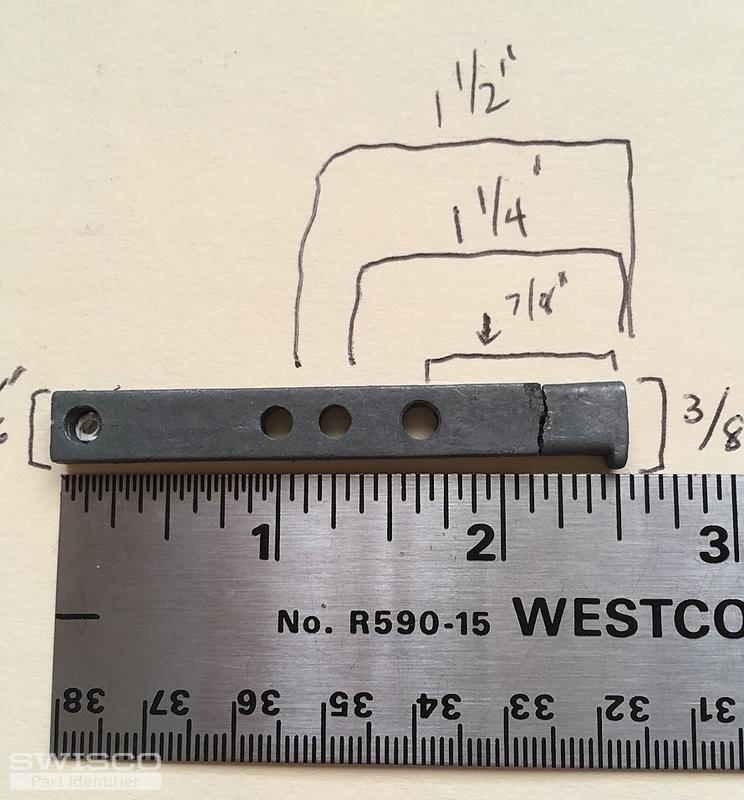

No, that is too long. Here are measurements including the width and hole distances.
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Tom
Tom from SWISCO responded:
July 8, 2019

Ah, I see. We don't have anything in those exact dimensions, but you only need one hole placement to match for a replacement to work. I'm just not sure which hole your pivot bar uses. Two possibilities come to mind: our 26-433 and 26-443. The 26-433 has a hole that's 1-1/2" from the tip, on center, while the 26-443 has a hole that's 1-1/4" from the tip, on center. These positions match two of those you show in your photo. Let me know what you think.
Pivot Bar, 3"
Pivot Bar, 3"
26-241
$1.38
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-443
$1.98
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-433
$1.97
