Pivot hinge rod

Start a new Discussion

Home Owner from Sedona, arizona

Jan 11, 2022 9:28 pm

Pivot hinge rod nylon positioning rod adjusters...do you have these nylon adjusters and end rod slide caps?

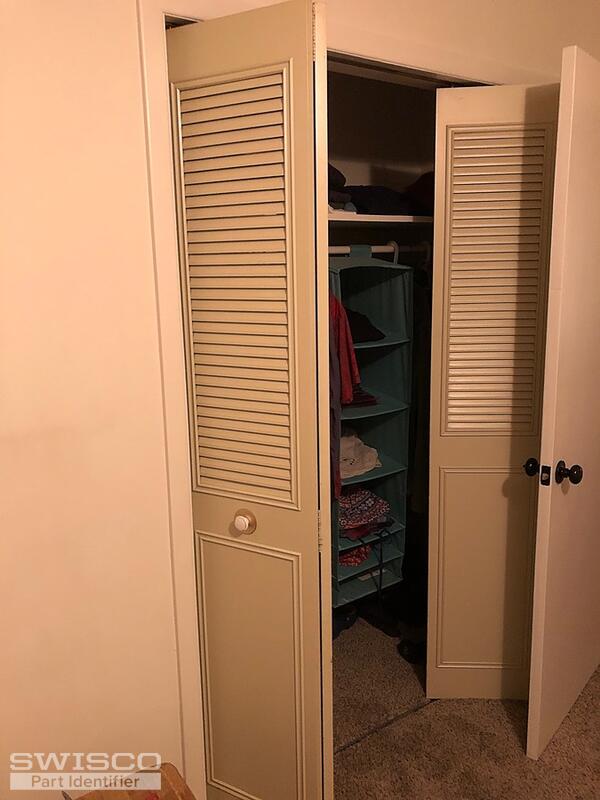

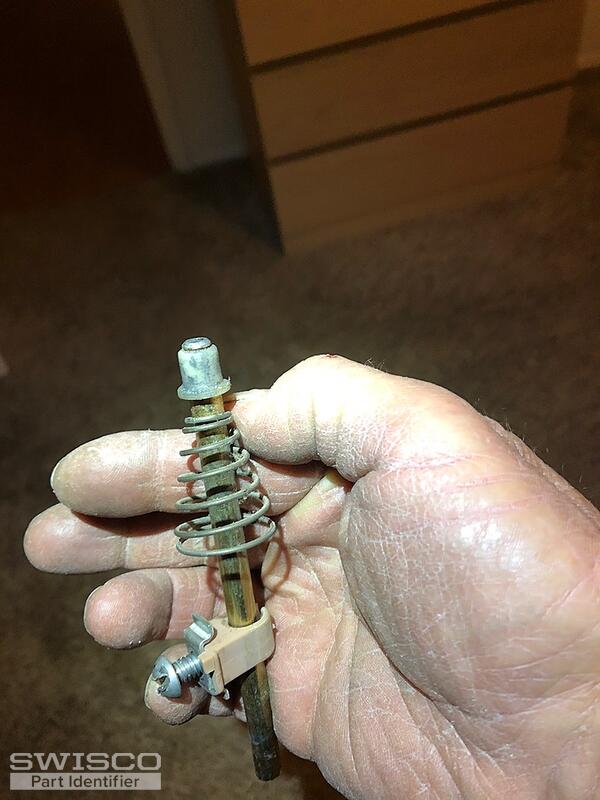

Do you have this model (see photo) of nylon hinge rod adjuster stops and end nylon slider caps? Circa 1960s

2 user uploaded images

4 Replies

Emily from SWISCO

Jan 14, 2022 9:32 am

Hello!

Before I recommend anything, can you tell me the diameter of the pin shaft and the diameter of the nylon cap? That should help us narrow down your options.

Thank you!

Home Owner from Sedona, arizona

Jan 14, 2022 3:05 pm

5/16" tight...3/8" loose...rod diameter

Emily from SWISCO

Jan 20, 2022 8:33 am

I'm not sure if we have an exact match for this pin. Given its age, there's a chance it may not be made anymore. However, that clamp on your pin reminds me of our 21-154 and is compatible with the 21-001 pivot assembly, which has a 3/8" diameter cap and 5/16" diameter pin. Review our dimensions and compare them to your original hardware to see what you think.
