Pivot lock

A home owner from Canton ohio says:
March 27, 2021
Cannot find any manufacturer or part number length is 2.5 inch.width 1.25 inch.thick=.5 inch there is a 5k on coil .no manufacturer on window either.?
Thumbnail of the uploaded file named 20210327_141632.jpg
Thumbnail of the uploaded file named 20210327_141728.jpg
Thumbnail of the uploaded file named 20210327_141700.jpg

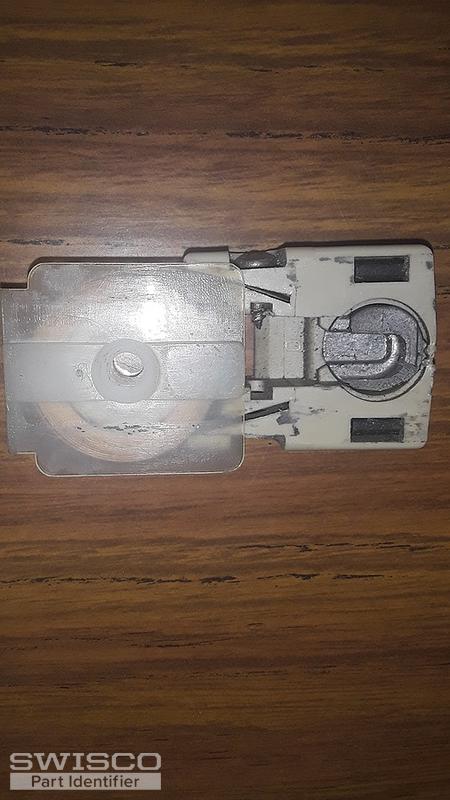

Thumbnail of the uploaded file named 20210327_141646.jpg

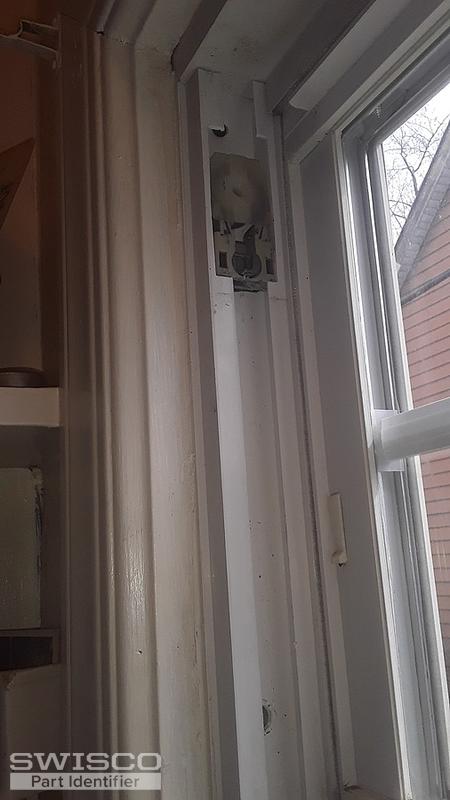

Thumbnail of the uploaded file named 20210327_142445.jpg
Profile picture of Bob
Bob from SWISCO responded:
March 30, 2021

This looks like a 15-175 Pivot Shoe. This shoe uses Series 152 Coil Balances, and a stamp of 5 indicates you need the S152-5 5 pound spring. Let me know if you have any further questions.
Coil Balance Shoe, Slate Blue
Coil Balance Shoe, Slate Blue
15-177
$3.47
5 lb Series 152 Coil Balance
5 lb Series 152 Coil Balance
S152-5
$4.80
