Pivot lock shoe

A quick learner from USA says:

February 26, 2018

I have been trying to locate this part I haveattach photos please let me know if you can help or need more info thanks
3 Attachments

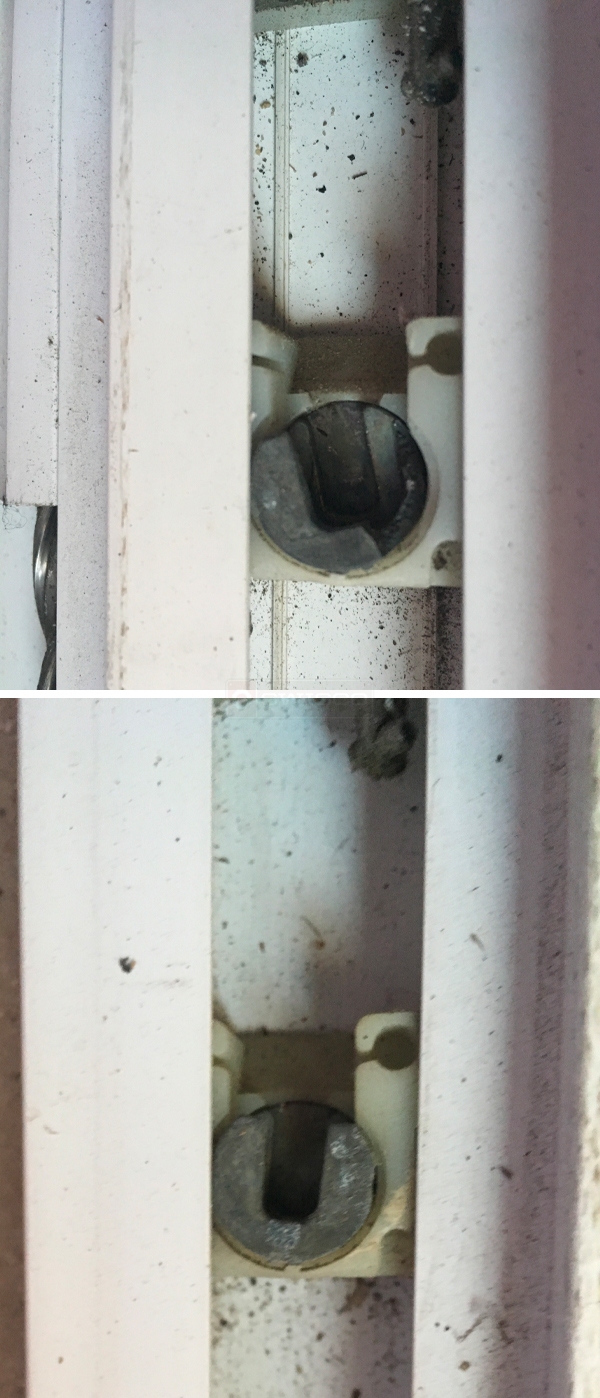

User submitted photos of window hardware.

Paul from SWISCO responded:

February 27, 2018

Thanks for posting. Since we can only see a portion of your pivot shoe, I am not sure what exact part to recommend as a replacement. Start with our 15-178 and 15-188. Review each part's dimensions to see if they match up with yours. If neither one is a match, get back to us with photos of the entire pivot shoe as well as the measurements you are looking for. Make sure to include the thickness of your pivot shoe. There are some media guides I placed on this page that provide more details.

Pivot Lock Shoe, Brown Brake Pad

15-178

$3.70

Pivot Lock Shoe, 1/2" Thick, Blue Break

15-188

$3.70

Spiral Balance Charging Tool for Tilt Windows

75-006

$9.97
