Pivot lock shoe

A home owner from Vermont says:
June 3, 2020

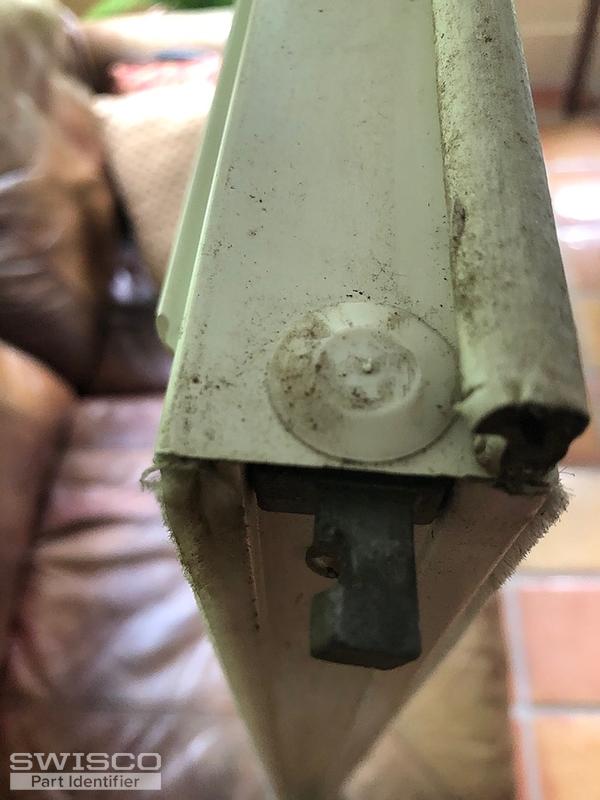

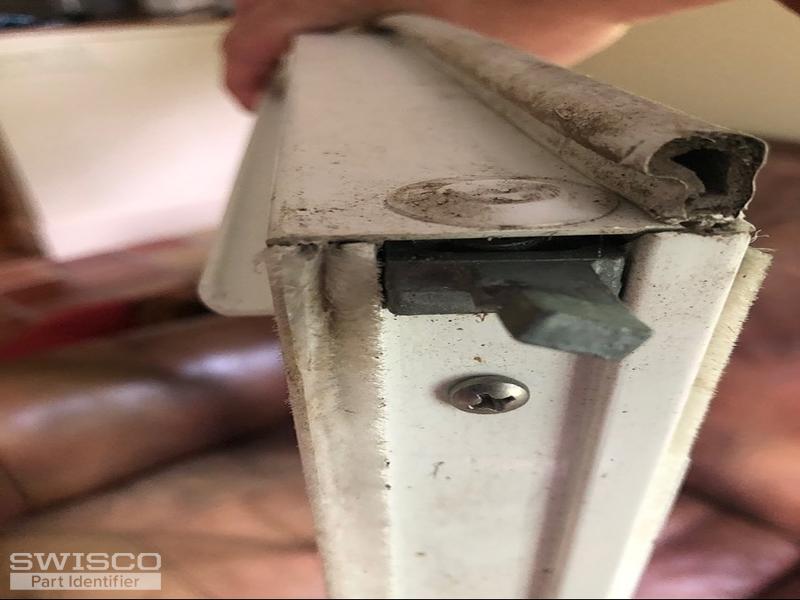

Trying to replace a pivot lock shoe(s) on Harvey tilt window. Picture includes model and warranty in size all that stuff! The metal piece on the sash is bent as shown in the picture and I don't have the cap for both pivot locks. I think I need a complete set up for both sides. Any guidance would be appreciated, thank you..
Thumbnail of the uploaded file named 73466F0D-766E-4EBB-B377-746136941CFC.jpeg
Thumbnail of the uploaded file named 1B95F810-E415-4C58-8E6F-EF1E2A10384A.jpeg
Thumbnail of the uploaded file named 6F1461ED-C590-4329-BB38-C22B13248CEE.jpeg
Thumbnail of the uploaded file named EF085C5C-D5D7-4109-B37C-2C1876860458.jpeg
Thumbnail of the uploaded file named 27766D7C-05D1-4BB9-A934-D0DB247EB167.jpeg
Profile picture of Casey
Casey from SWISCO responded:
June 8, 2020

Hello,

We can't make any promises without seeing the hardware removed from the window, along with dimensions to compare to ours, but take a look at our 15-105 pivot shoe and 26-164 Harvey pivot set and see how they compare. Thank you!
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-105
$6.45
Sash Pivot Set, Harvey
Sash Pivot Set, Harvey
26-164
$11.08
