Pivot lock shoe
Contractor from Manassas VA
Mar 13, 2024 6:43 am
Hi, I'm looking for a replacement for the piece in the photo and wasn't sure which one I should order. Thank you for your help.
4 user uploaded images
4 Replies
Casey from SWISCO
Mar 13, 2024 3:50 pm
Hello,
We'd be happy to help but we would need to see your pivot shoe fully removed from the window to compare to our inventory. We'll also need you to write out the exact width and thickness since we are not able to make out exact dimensions from photos.

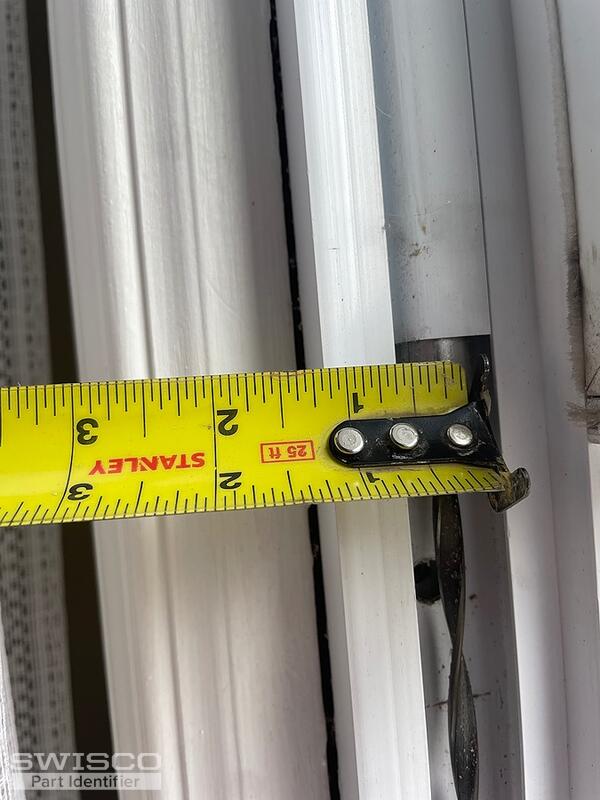

As for your spiral balances, see the (3/8") S900 or (5/8") S600 depending on the diameter of the spiral housing. You'll also need to measure the housing tube to choose the corresponding length option. See the videos related on this page to help you through the process.
Contractor from Manassas VA
Mar 18, 2024 11:48 am

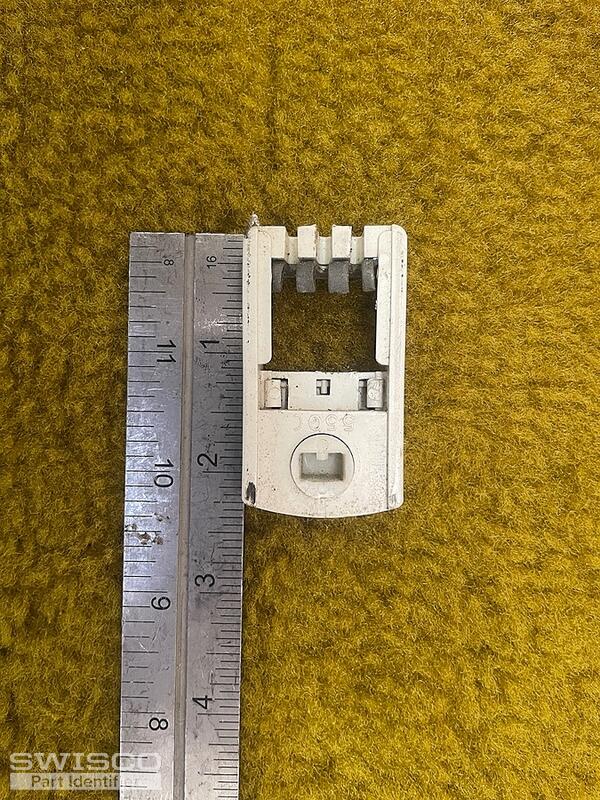

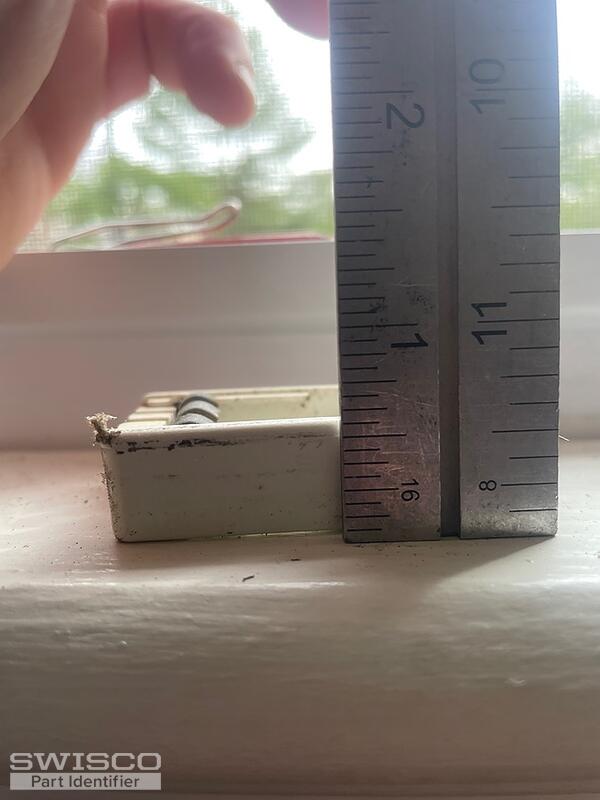

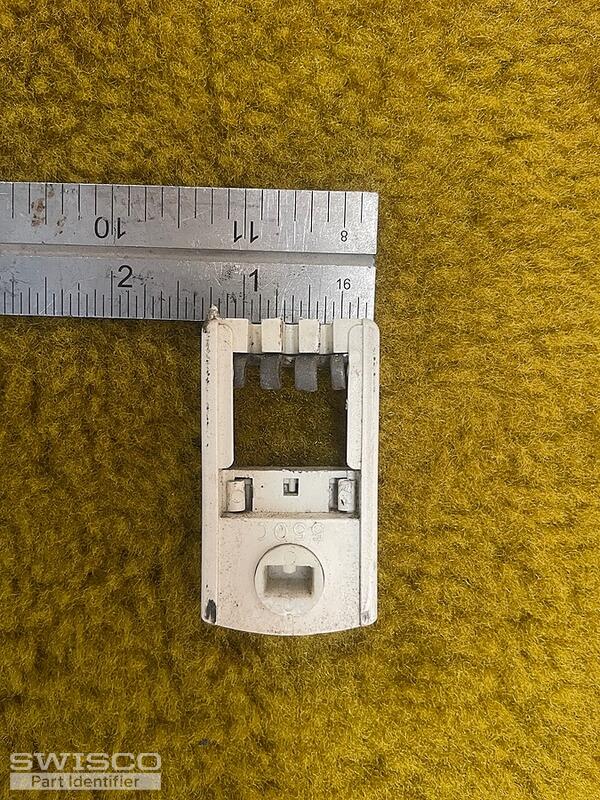

Thanks for the quick reply. It looks like the thickness is 9/16" and the width is 1 5/16". I pulled it out and took a few more photos. Let me know if these help. Thanks You!
3 user uploaded images
Casey from SWISCO
Mar 18, 2024 1:11 pm
Our closest match for your pivot shoe appears to be the 15-118. I would recommend double-checking the width of your shoe since 1-1/4" is a common size.
Alternate image for 15-118
