Pivot lock shoe

A quick learner from Manchester Tennessee says:
June 15, 2017
I can't find anything on your website that resembles these and I can't find any markings on them and I don't know who made these windows. Do you have anything that might work or know where I might find any.

Thanks,
Profile picture of Tom
Tom from SWISCO responded:
June 15, 2017
Thanks for your question.

We do sell pivot shoes. However, if you tried to send any pictures, they didn't come through. Can you show us the part that needs to be replaced? Photos and dimensions of the part will help us identify it.
A quick learner from Manchester Tennessee says:
June 15, 2017
Not sure what happened but I'll Try again.

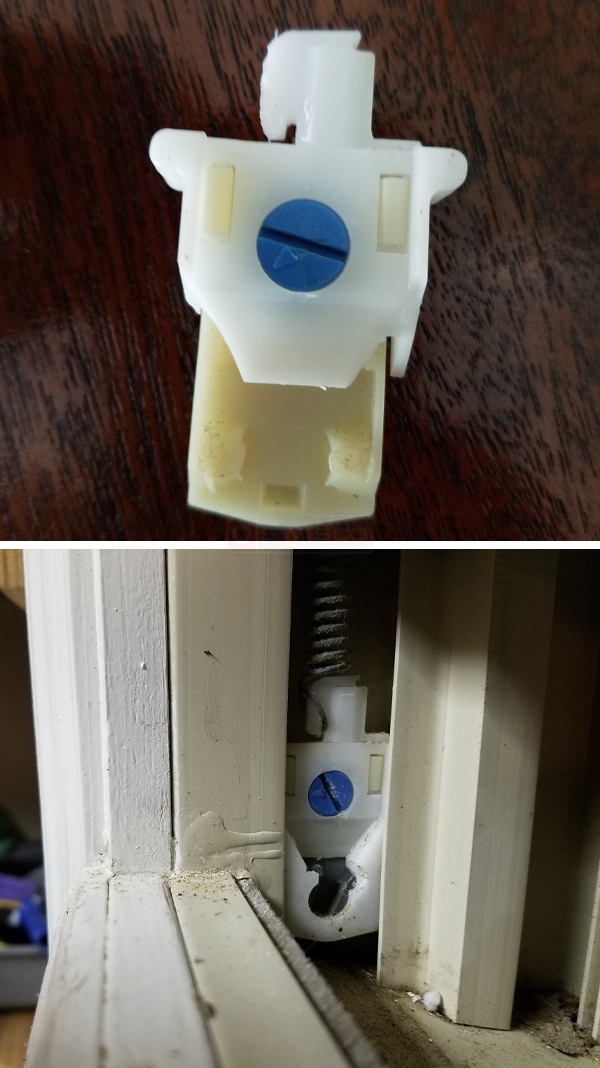

User submitted photos of a pivot shoe.
Profile picture of Tom
Tom from SWISCO responded:
June 19, 2017
Thank you for the photos. We believe we may have a pivot that could work for you. Take a look at our 15-220 and compare your measurements to ours to let us know if this is a good match for you.
A quick learner from Manchester Tennessee says:
June 20, 2017
That one won't work I have already ordered those. The one I need has the two ears at the top. The width of the shoe is 7/8". The width including the ears on the top is 1 1/4". The 15-220 is not wide enough and comes out of the track.
Profile picture of Paul
Paul from SWISCO responded:
June 22, 2017
The only other match we have that may work is our 15-213, which is 1-1/4" wide by 9/16" thick. We don't have anything with those ears, but I'm not sure if they're necessary.
