Pivot lock shoe ID : SWISCO.com

Handy Person from Olathe, Kansas

Jul 16, 2025 11:15 am

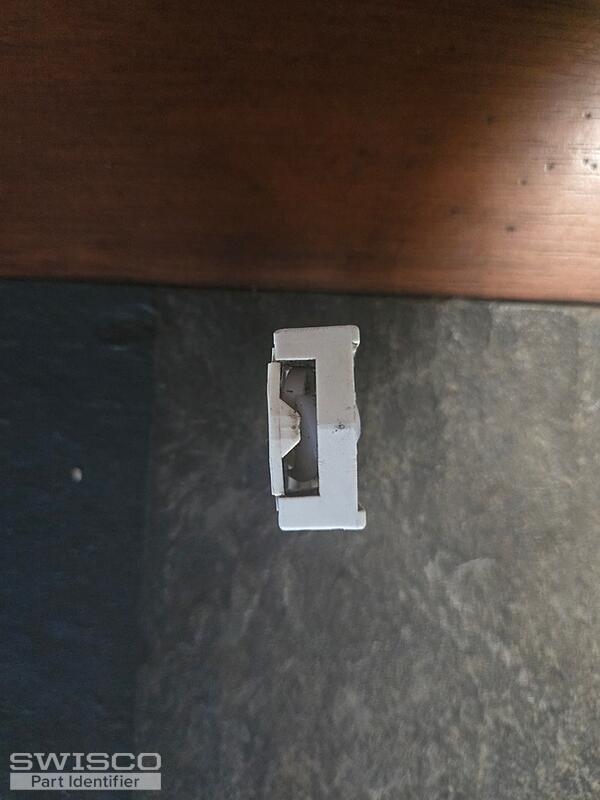

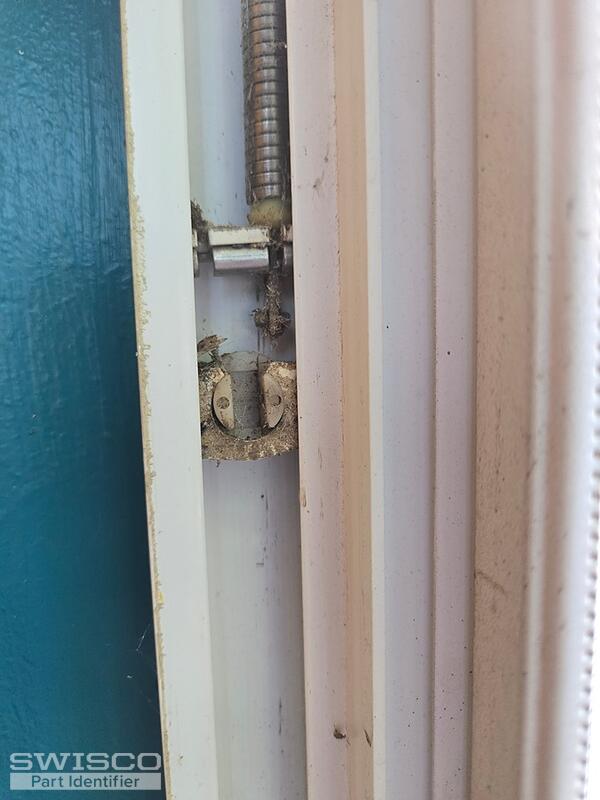

Here are photos of my pivot lock shoe. The dimensions are 1.625" tall, 1.25" wide and 0.5" thick. Do you have something similar that will work? I don't know what brand of windows. The windows have spiral window balances.

4 user uploaded images

9 Replies

Casey from SWISCO

Jul 22, 2025 9:16 am

Hello,

I don't recognize this pivot shoe at first glance, but I'm going to have one of our senior experts take a look and see if they could recommend a replacement for you. We'll reach out as soon as more information is available. Thank you!

Paul from SWISCO

Jul 22, 2025 10:32 am

We'll be happy to research this for you, but we would like to see photos of the pivot bar that engages with the pivot shoe cam to determine if anything we offer would be compatible with your original hardware.

Handy Person from Olathe, Kansas

Jul 23, 2025 10:27 pm

Will this photo work?

1 user uploaded image

Casey from SWISCO

Jul 24, 2025 8:05 am

The new photo only shows the pivot shoe. What we would need to see is the pivot bar that anchors the bottom corner of the window sash to the pivot shoe. Note that we'll need to see yours fully removed from the sash frame.

Handy Person from Olathe, Kansas

Aug 10, 2025 3:45 pm

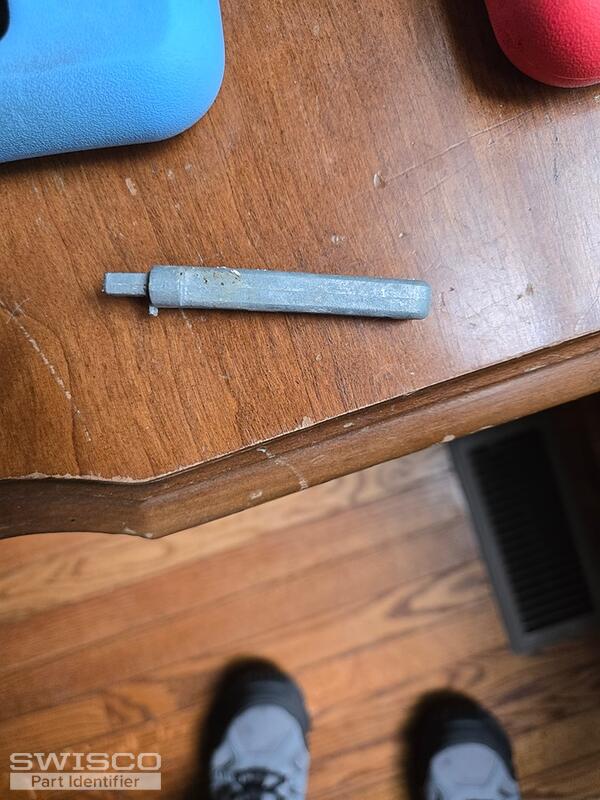

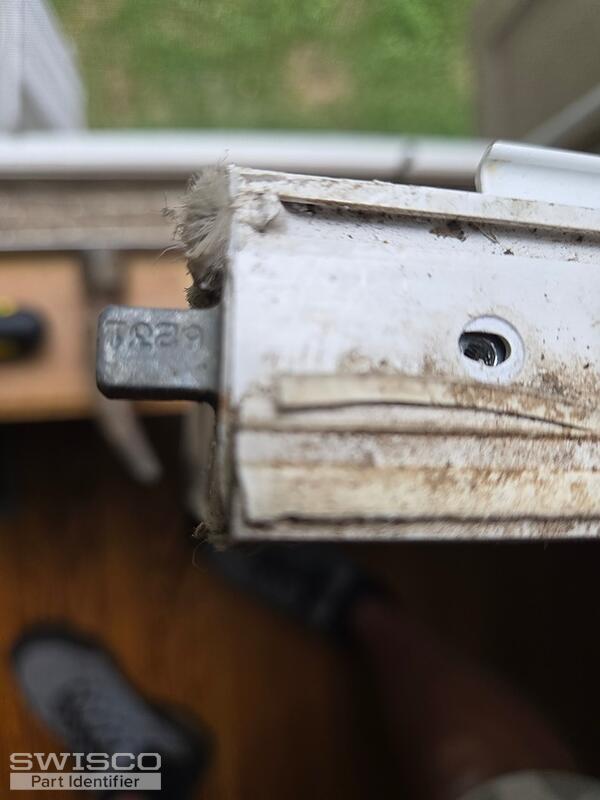

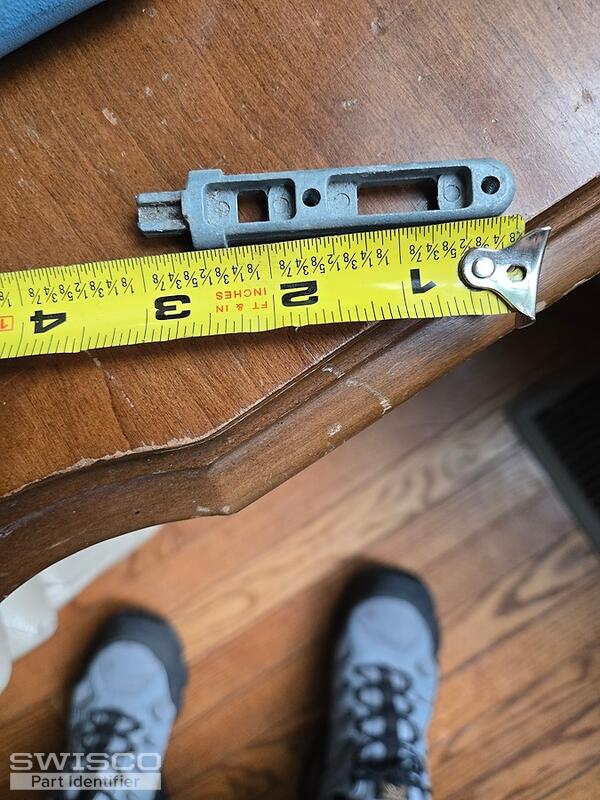

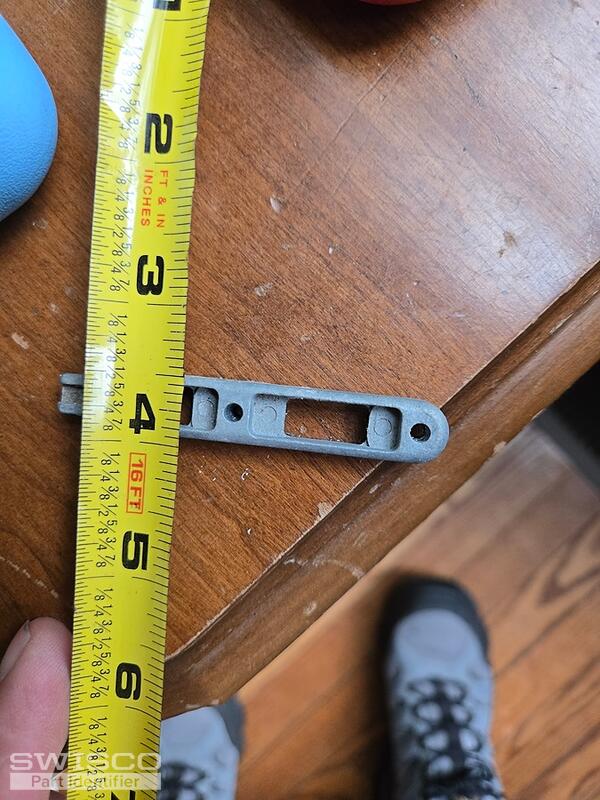

Here are photos of the pivot bar.

4 user uploaded images

Casey from SWISCO

Aug 12, 2025 9:08 am

We appreciate your patience as we looked into this for you. Your original pivot shoe is no longer available, but take a look at the 15-188 shoe, which is compatible with your 26-366 pivot bar. Review the specifications below and let us know if you need anything else.

Alternate image for 15-188

Handy Person from Olathe, Kansas

Aug 12, 2025 11:10 am

Thank you

Casey from SWISCO

Aug 12, 2025 11:18 am

It's our pleasure!
