Pivot lock shoe to match existing window

Question

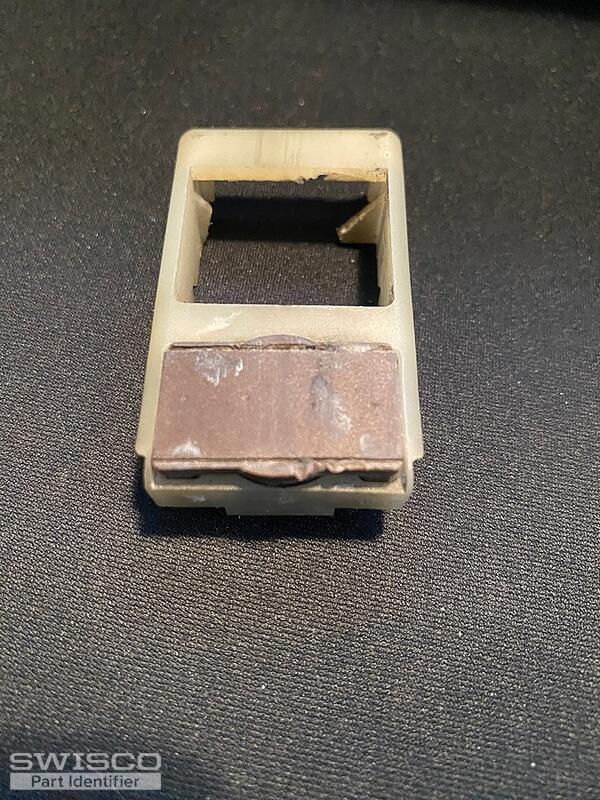

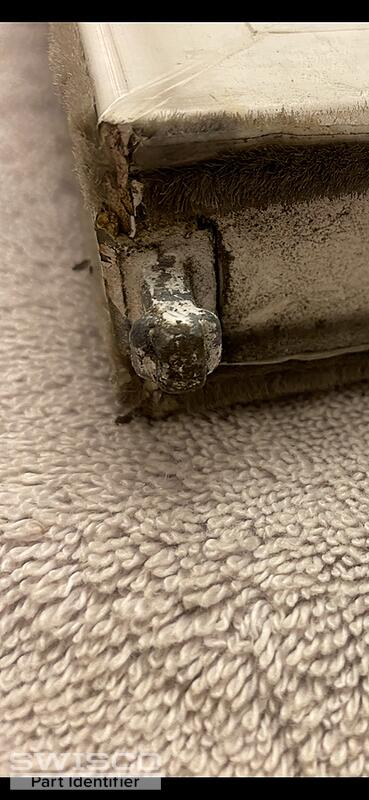

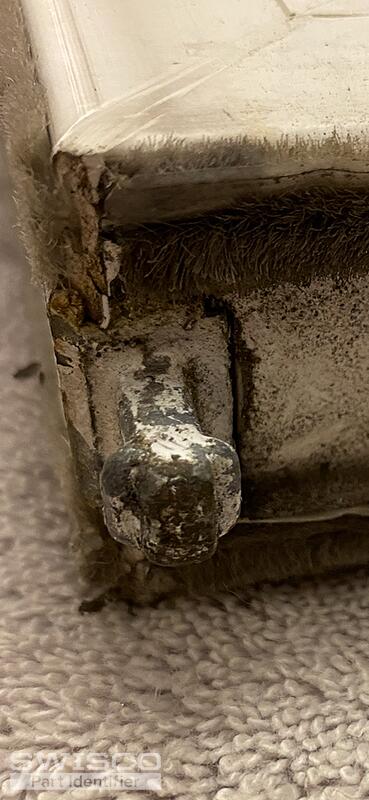

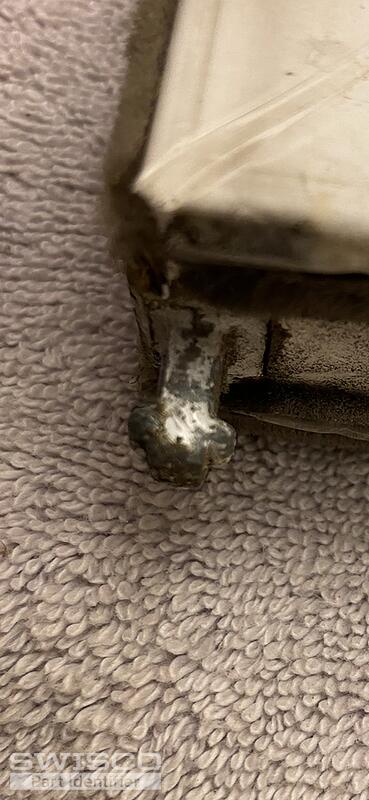

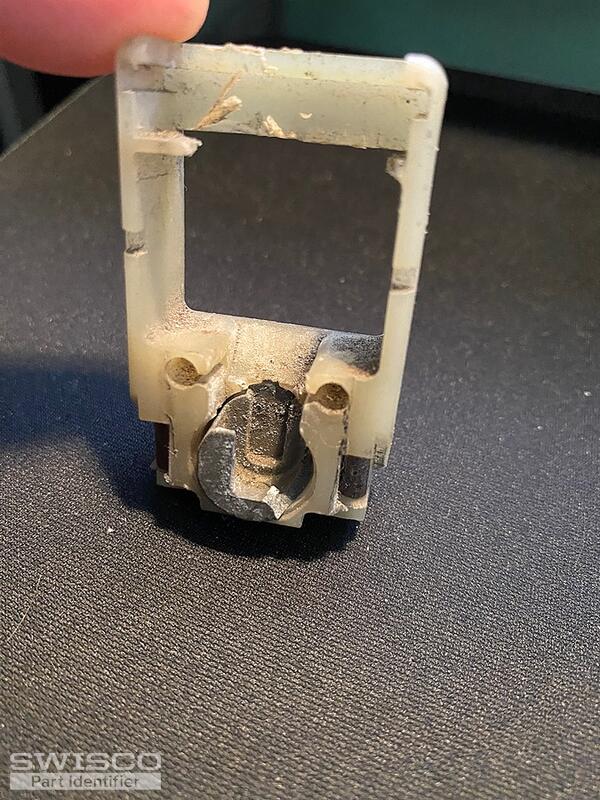

Please provide matching pivot lock for photos provided the existing pivot lock shoe measures 2-1/8" x 1-1/4" x 13.6mm below brake and 16.4mm measuring at or including the brake which is brown. I have included photos of the window pivot bar also which doesn't appear to be removable. The pivot lock looks to be about 1/2" but I measured in mm with a caliper to provide exact measurements.

Paul · Accepted Answer

Thanks for reaching out to us. This pivot shoe looks like a match for our 15-178. This has the same brown brake as your original.

The pivot bar should be removable, but depending on age it might be a little corroded. I recommend soaking it in WD-40 for a few hours to see if that helps. There should also be an installation screw underneath it.
